Inspection - oil service
Every day
»Maintenance intervals« page 52

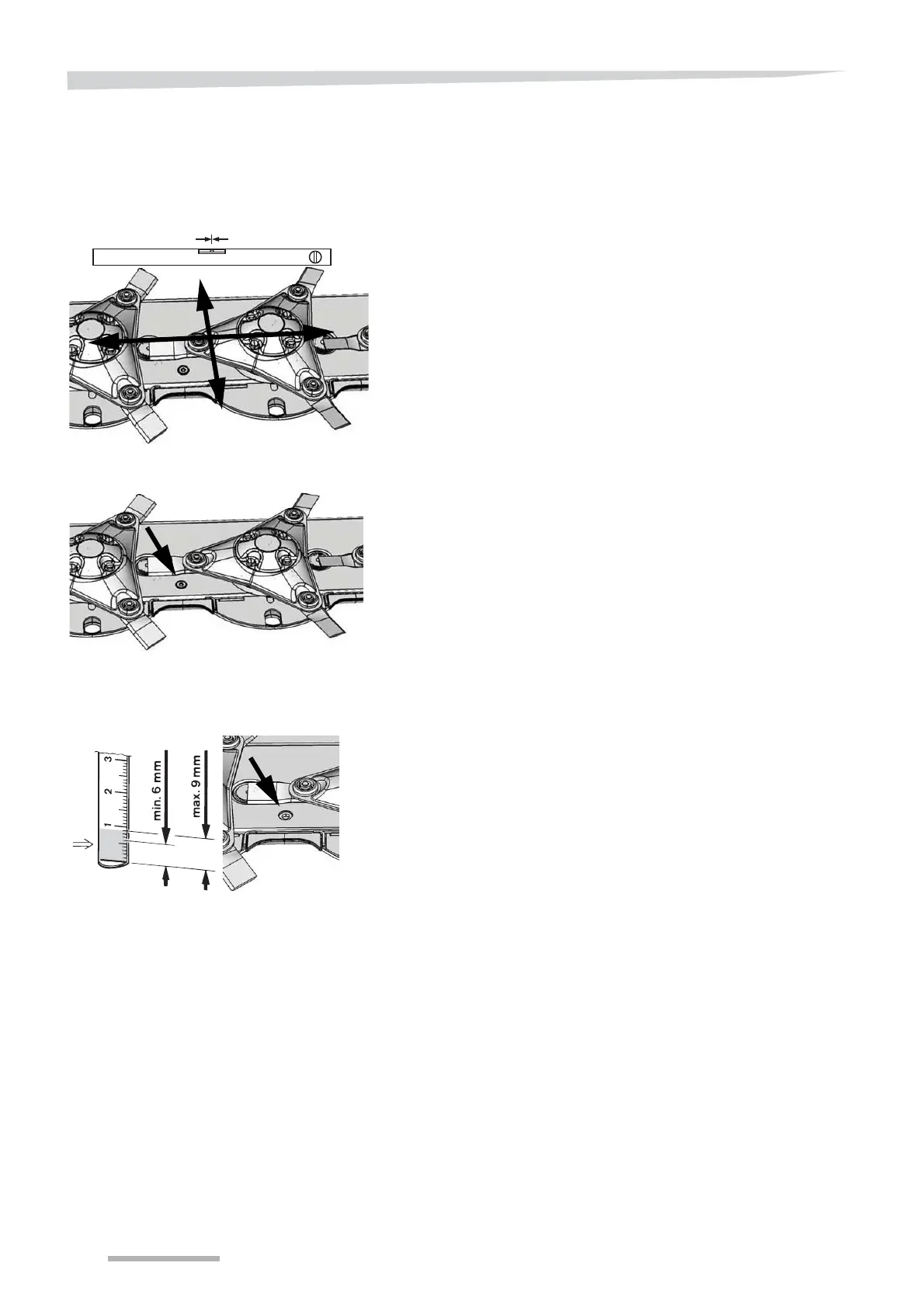

The oil level for the cutterbar is checked as follows:
Place the machine on a level surface.
Lower the cutterbar to the ground.
Check the position of the cutterbar with a spirit level and, if needed,
adjust its position with a wooden block.
Check that the cutterbar is also roughly horizontal in the direction
of travel. Correct the setting of the cutterbar by adjusting the length
of the top link.
Locate the oilplug on the cutterbar and remove it.
• With warm oil: Wait approximately 3 minutes
• With cold oil: Wait approximately 15 minutes.
Check the oil level as shown and refill if necessary.
Min. 6 mm (
1
/4”) - max 9 mm (
3
/8”)
»Lubricants« page 94
Fit the oilplug and tighten it fully.
!
