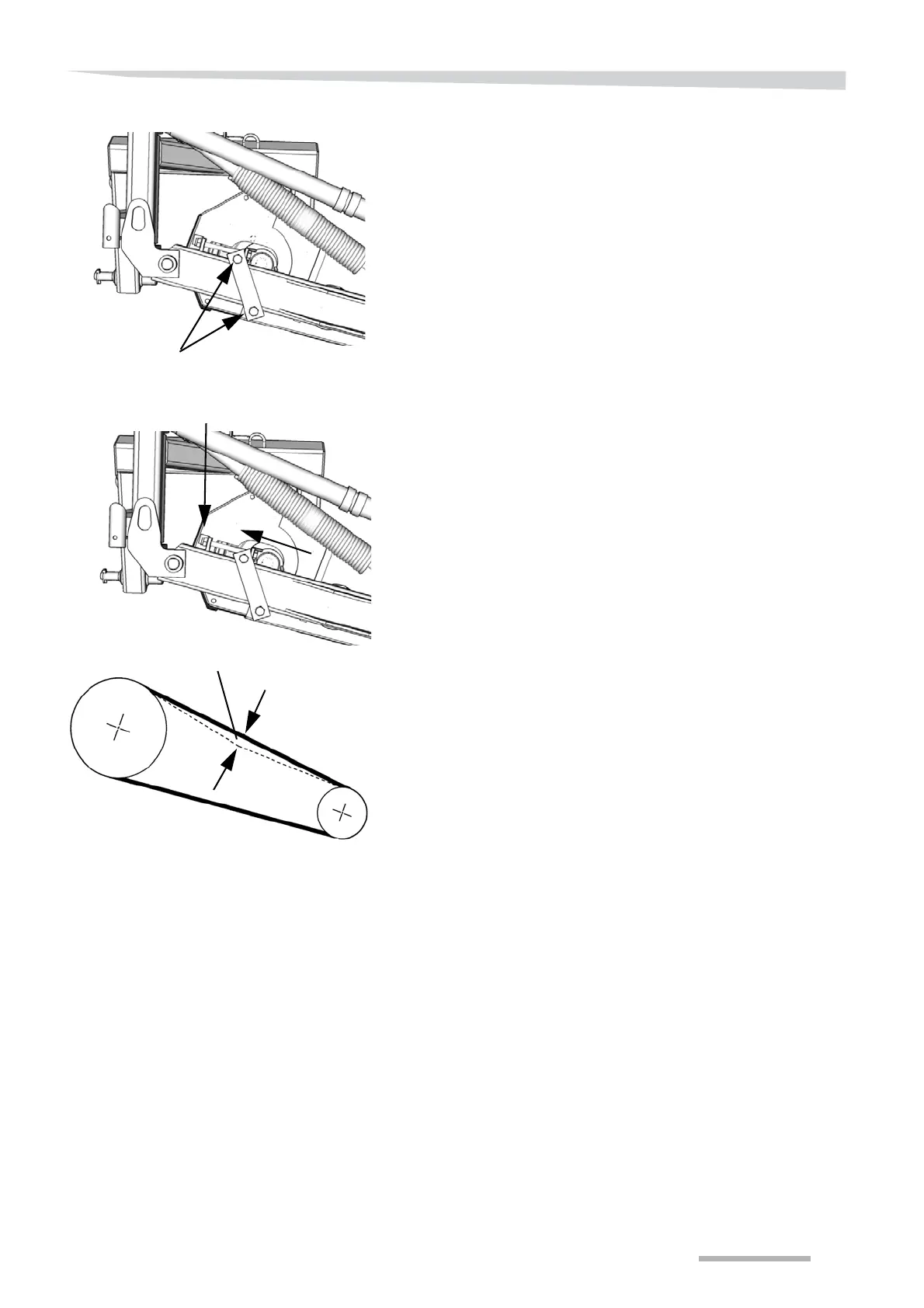

The V-belts are tightened in the following way:
 Use a suitable tool to loosen the bolts.
 Tighten the nut until the V-belts are correctly tightened.
 Check that the V-belts can be depressed by approx. 15 mm (
19
/
32
”)
between the V-belt pulleys as shown.
Bolt
Nut
Approx. 15 mm (
19
/
32
'')
