Maintenance
82

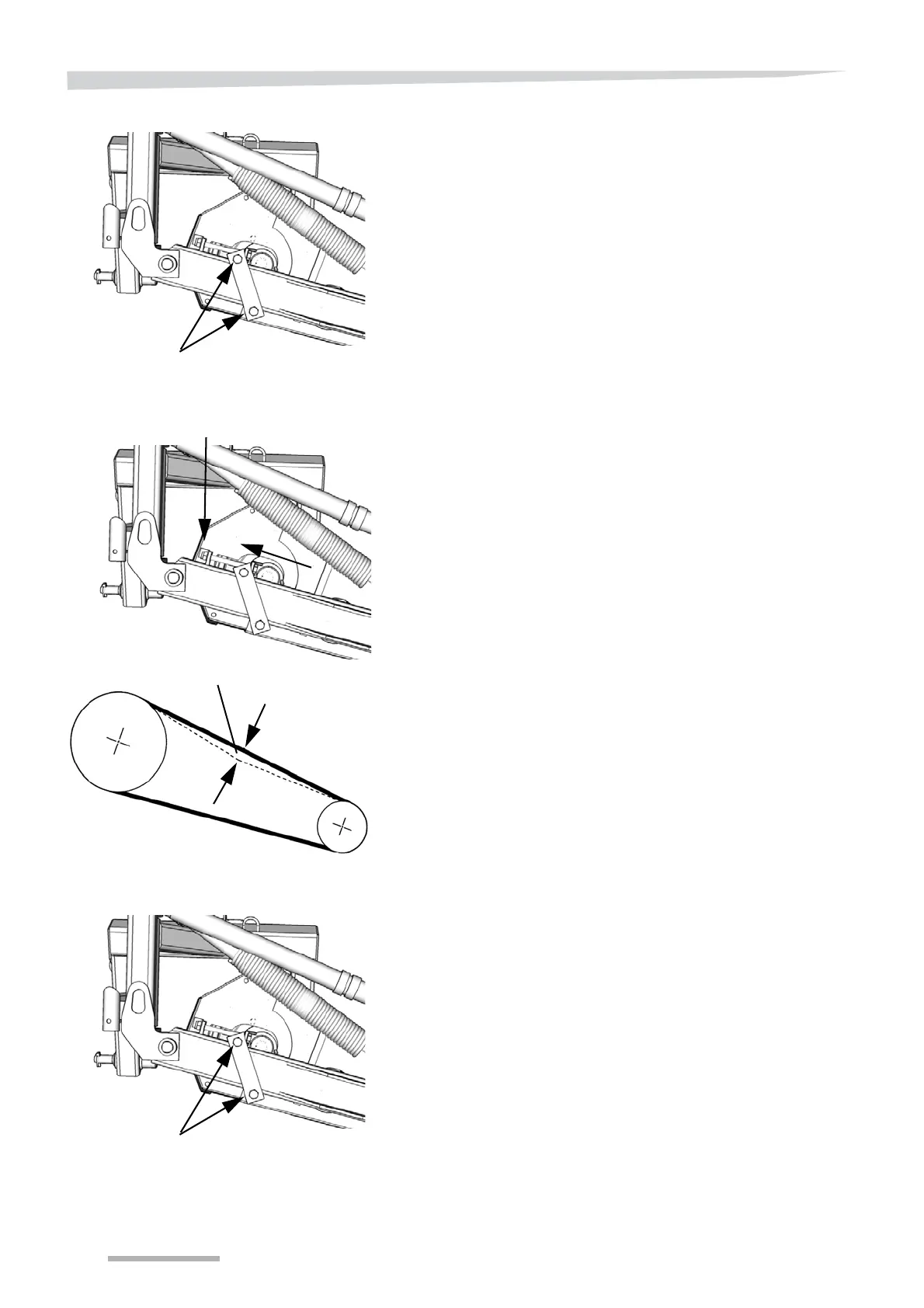

 Loosen the bolts.
 Loosen the nut until all the V-belts are slack.
 Remove the old V-belts.
 Fit the new V-belts.
 Tighten the nut until the V-belts are correctly tightened.
 Check that the V-belts can be depressed by approx. 15 mm (
19
/
32
”)
between the V-belt pulleys as shown.
 Tighten the bolts.
Bolt
Nut
Approx. 15 mm (
19
/
32
'')
Bolt
