Victoria Arduino BLACK EAGLE VA388

TEMPERATURE OF THE STEAM HEATER
To adjust the temperature of the steam heater,
return to the previous screen by pressing the
menu button.

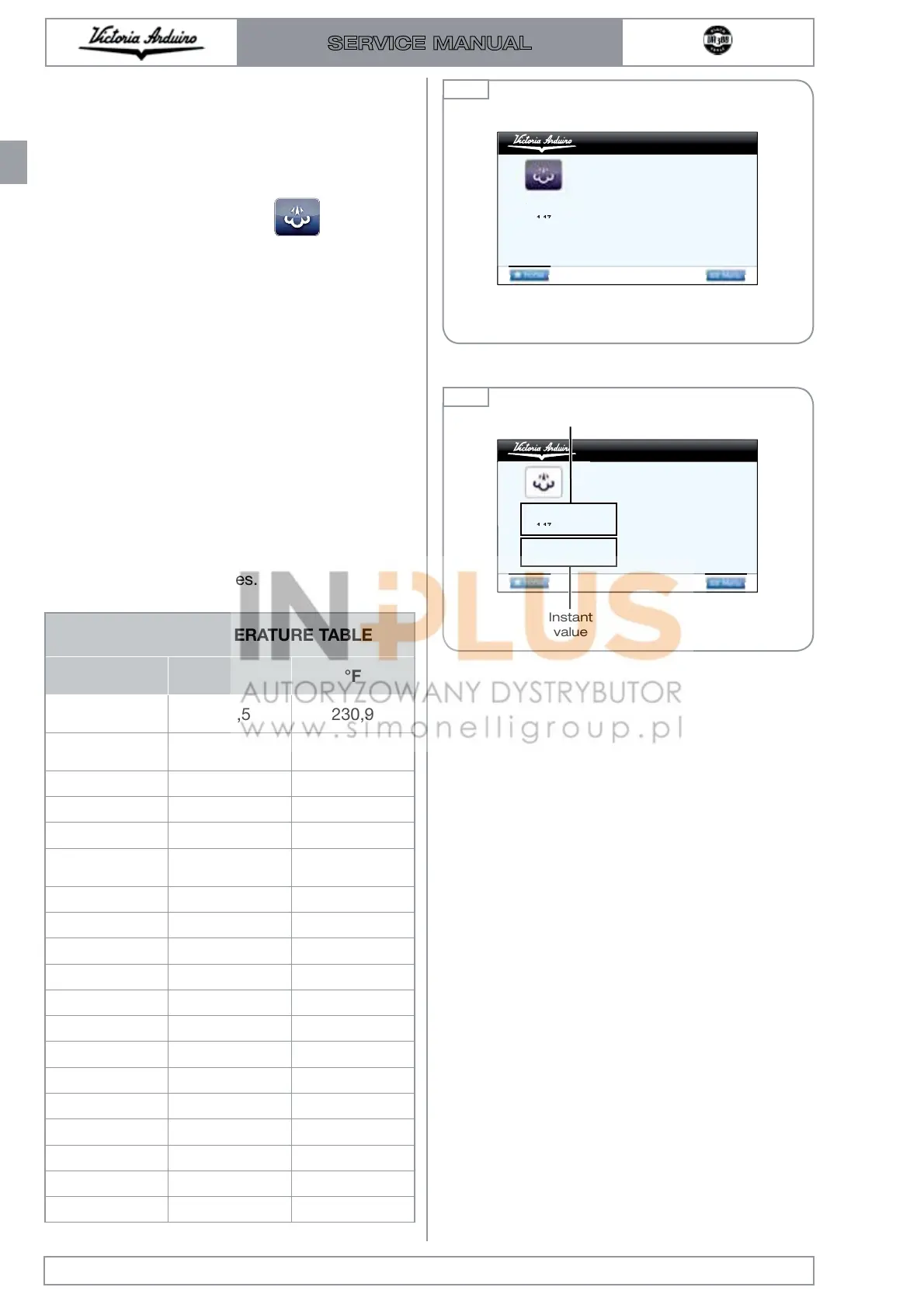

STEAM BOILER SET POINT
The display shows:
Select the steam icon and confirm with the rotary
switch.
Turn the rotary switch to select the required tem-
perature for the group; press it to confirm the
setting.
The pre-set value is 1.20 bar. The following table
shows the temperature values that correspond to
the various pressure values.
PRESSURE-TEMPERATURE TABLE
Bar °C °F
0,50 110,5 230,9
0,55 111,5 232,7
0,60 112,5 234,5
0,65 113,5 236,3
0,70 114 237,2
0,75 115 239
0,80 115,5 239,9
0,85 116,5 241,7
0,90 117,5 243,5
0,95 118 244,4
1,00 119 246,2
1,05 119,5 247,1
1,10 120,5 248,9
1,15 121 249,8
1,20 122 251,6
1,25 122,5 252,5
1,30 123 253,4
1,35 124 255,2
1,40 124,5 256,1
Edition 01 of 08/2017
2.12
SERVICE MANUAL
Steam boiler setpoint
1.17
0.86
Steam boiler setpoint
Steam boiler set
p
117
Steam boiler setpoint
Fig. 38
Steam boiler setpoint
Steam boiler setpoint
Steam boiler setpoint
1.17
0.86
Steam boiler set
p
117
Fig. 39
Instant
value
Set
value
