2 Using a 22 mm wrench remove the steam noz-
zle from its housing. We recommend replacing
the gasket at least once a year.
3 Unscrew the fitting with a 21 mm wrench to
reach the spring.
We recommend replacing the gasket at least
once a year.
4 Remove the steam piston behind the spring.
We recommend replacing the piston at least
once a year.
The steam nozzle in its simplicity has compo-
nents that must be replaced annually or periodi-
cally due to wear.
We recommend replacing:
t 5IF TFBMT PG UIF QJTUPO DPEF 
every 4-6 months, to avoid misalignment.
t 5IFTFBMTPGUIFMFWFSCMPDLBOE
connection to the heater (02280011).
t 5IFJOUFSOBMQJTUPO
Edition 01 of 08/2017
7.22
SERVICE MANUAL

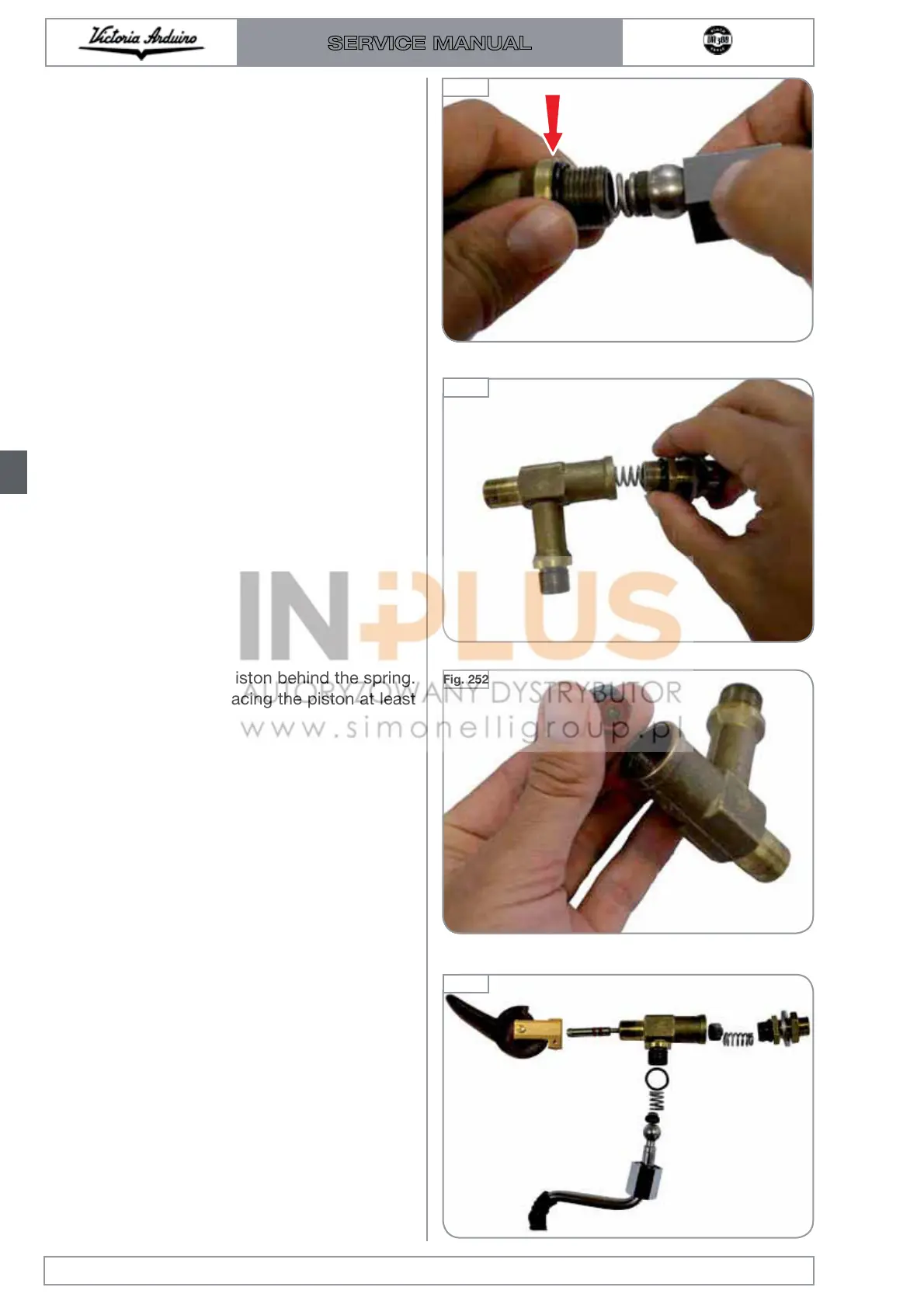

Fig. 250
Fig. 252
Fig. 251
Fig. 253
