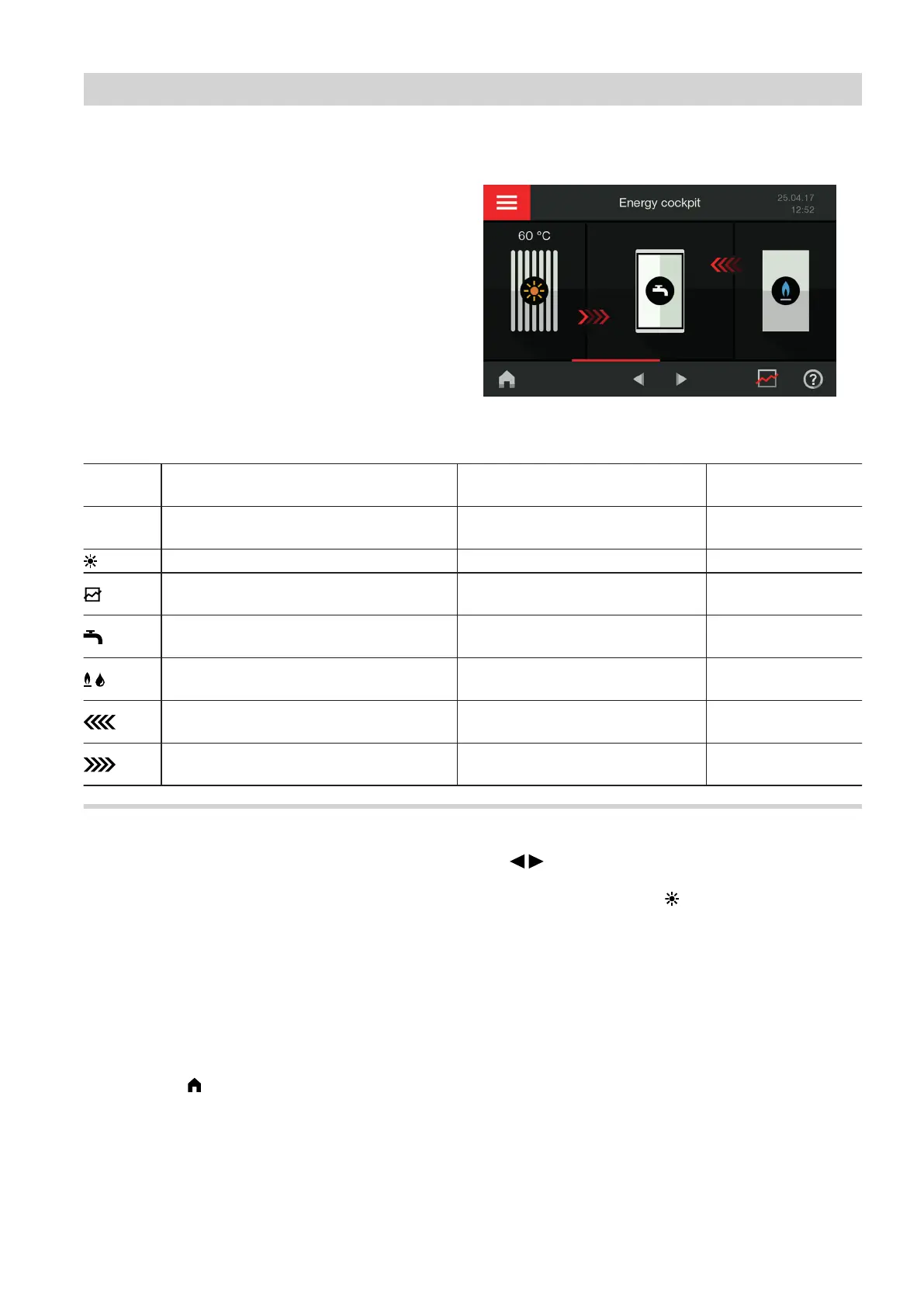

Default display in the "Energy cockpit"
The various components present in the system are
shown as graphics. For information on the energy sta-
tus of these system components, tap the relevant sys-
tem component.
Note
The graphics depicting the boiler and the DHW cylin-
der vary according to the products used in the system.
Example: Vitotronic 300
Fig. 1
You can check the following information in the "Energy cockpit":
Display Vitotronic 300 Vitotronic 100 Further details:
See page
60 °C
Current solar thermal system tempera-
ture
— —
Solar thermal system energy yield — 15
Boiler energy statement in conjunction
with the solar thermal system
— 16
Temperatures and heat-up condition of
the DHW cylinder
— 16
/
Energy consumption (gas or oil) and op-
erating data
Energy consumption (gas or oil)
and operating data
16
DHW cylinder heating by the boiler is ac-
tive (red and moving)
— —
Heating of DHW cylinder by solar ther-
mal system is active (red and moving)
— —
Vitotronic 300: Energy yield from the solar thermal system
You can call up the energy yield from the solar thermal
system for the last 7 days, including the current day.
The energy yield is shown in kilowatt hours "kWh".
Note
This information can only be retrieved in conjunction
with the solar control module, type SM1. When con-
nected to a Vitosolic solar control unit, you can call up
the solar energy yield on this device.
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for the "Energy cockpit"
3. Tap the solar collector
The energy yields for the last 7 days, including the
current day, are shown as a bar for comparison.
4. Tap a day, e.g. "Mo"
The energy yield for the selected day is shown in
"kWh".
Control unit operation
Information in the "Energy cockpit" (cont.)
