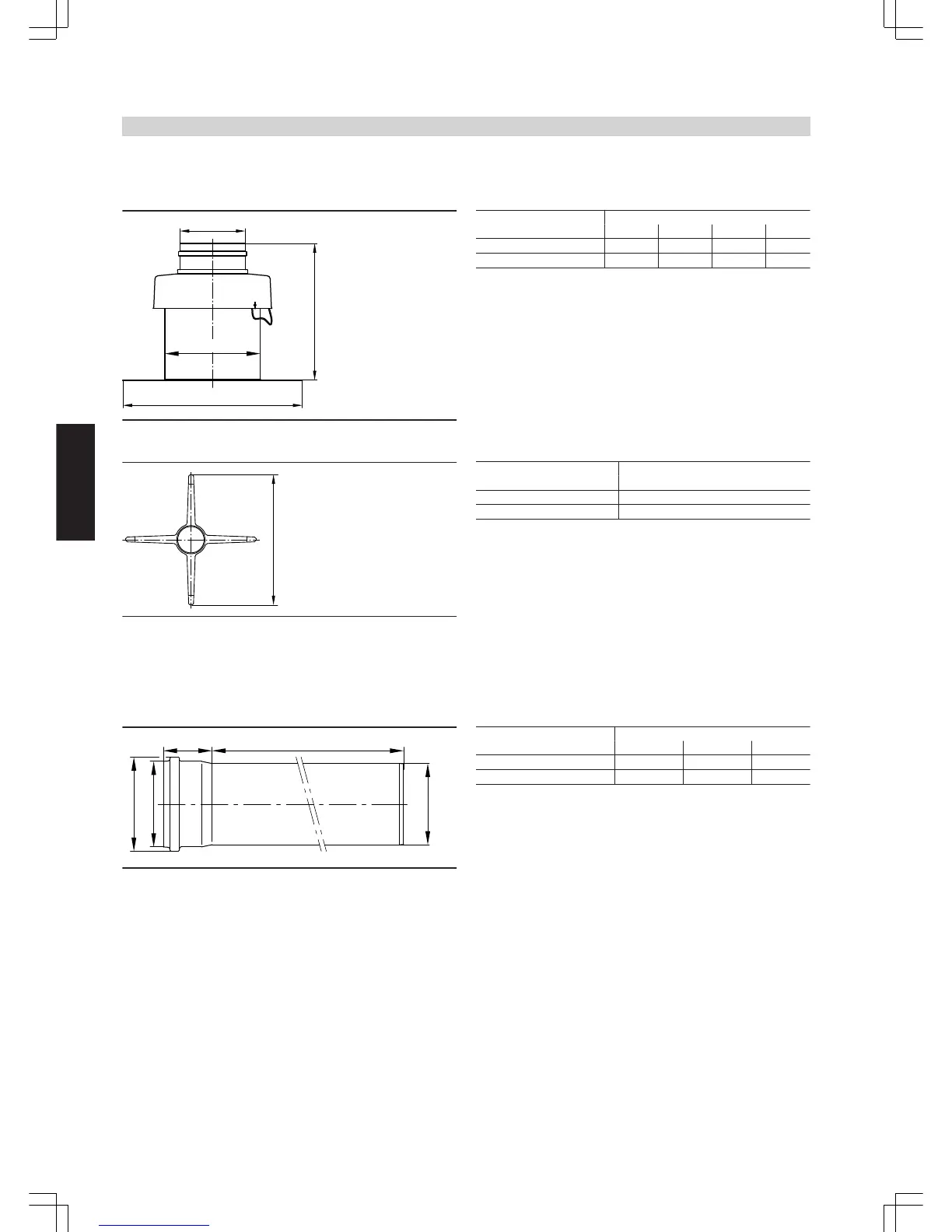

Viessmann VITOPLEX 300 Type TX3A - Duct cover; Spacers (3 pce); Pipe

Duct cover
(Fixing material for securing the duct cover on the cover plate is part
of the standard delivery)
Ø b
c
□ d
Ø a
System size Dimension [mm]
7 mm a b c d
150 161 228 258 350
200 202 260 261 280
Spacers (3 pce)
a
System size Dimension [mm]
7 mm a
150 402
200 734
Pipe
Pipe, 2 m long (2 pce)
Pipe, 2 m long (1 pce)
Pipe, 1 m long (1 pce)
Pipe, 0.5 m long (1 pce)
(These pipes may be shortened if required)
Ø c
A
500/1000/2000
a
Ø b
A
System size 150 or 200
System size Dimension [mm]
7 mm a b c
150 83 160 184
200 122 200 227
Design information
(cont.)
