Viessmann VITOPLEX 300 Type TX3A - Flow temperature sensor (contact temperature sensor); Mixer motor for flanged mixers; Plugs for sensors; Contact temperature sensor

Power consumption 4 W
Protection class II
IP rating IP 42 to EN 60529; ensure
through appropriate design
and installation
Permissible ambient temperature
– during operation 0 to +40 °C
– during storage and transport -20 to +65 °C
Torque 3 Nm
Runtime for 90 ° ∢
120 s

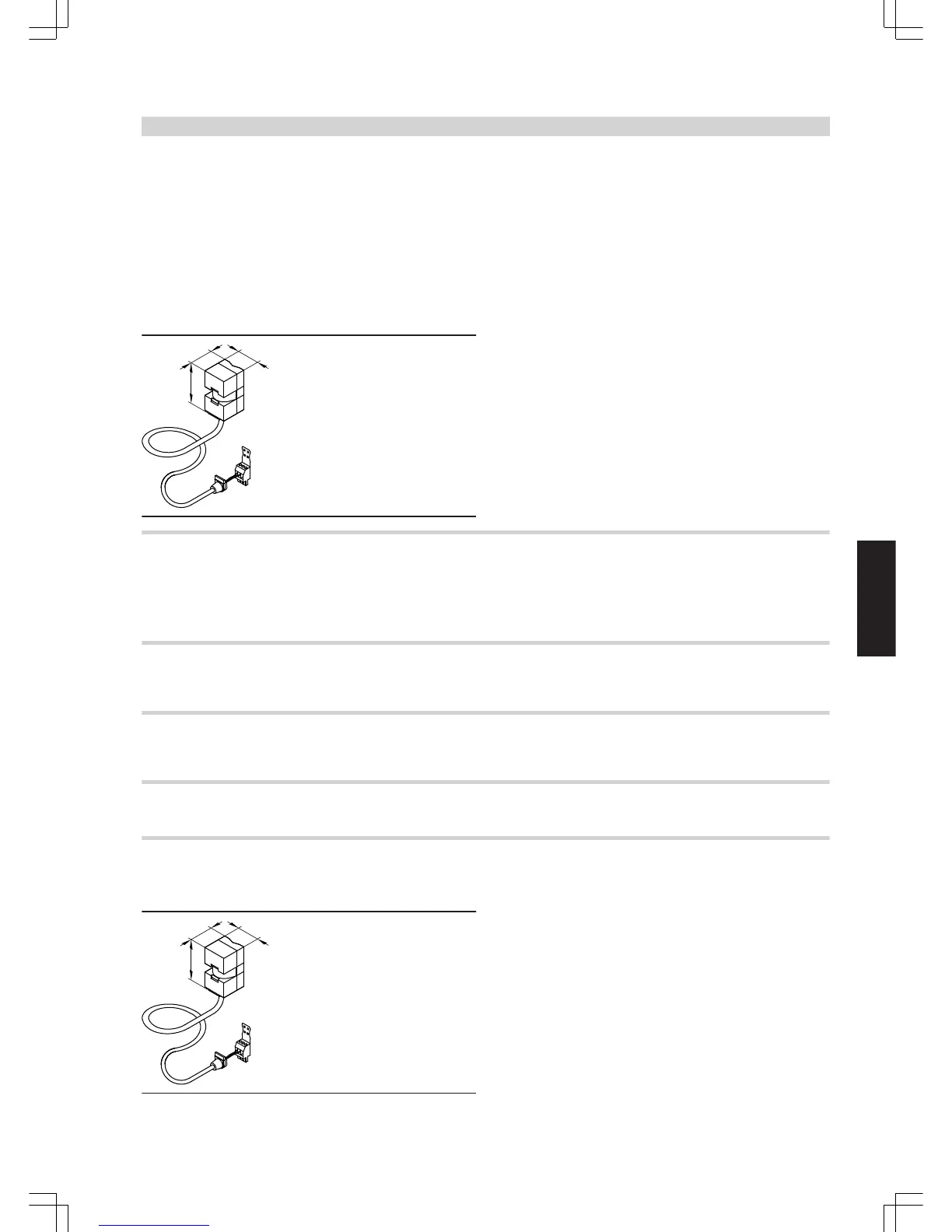

Flow temperature sensor (contact temperature sensor)
40
42
76
Specification
Lead length 5.8 m, fully wired
IP rating IP 32 to EN 60529; ensure
through appropriate design
and installation
Sensor type Viessmann Ni500
Permissible ambient temperature
– during operation 0 to +120 °C
– during storage and transport -20 to +70 °C
Mixer motor for flanged mixers
■ Part no. 9522 487
DN 40 and 50, without system plug and connecting cable
■ Part no. Z004344
DN 65 to 100, without system plug and connecting cable
For specification, see the "Mixer and mixer motors" datasheet.
Plug sÖ
Part no. 7415 056
for heating circuit pump
Plug gS
Part no. 7415 057
for mixer motors
Plugs for sensors
Part no. 7415 058
Contact temperature sensor
Part no. 7183 288
For capturing the flow and return temperature.
40
42
76
Specification
Lead length 5.8 m, fully wired
IP rating IP 32 to EN 60529; ensure
through appropriate design
and installation
Sensor type Viessmann Ni500
Permissible ambient temperature
– during operation 0 to +120 °C
– during storage and transport -20 to +70 °C
Control units
(cont.)
