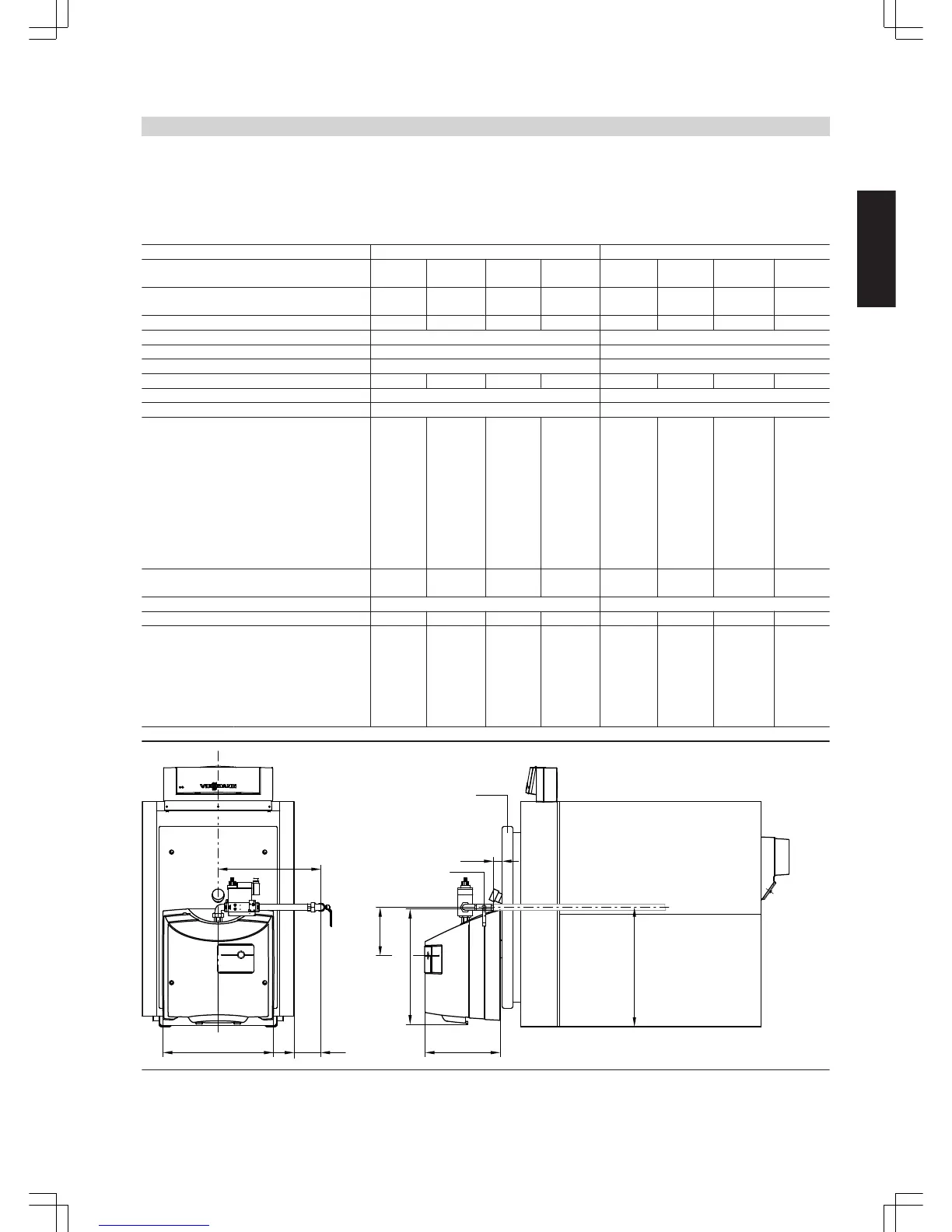

8.2 Specification, Vitoflame 100, type VG III
Burner output stage 1/2
Corresponds to the rated thermal load of the boiler.
Connection values
H
uB
relative to 1013 m bar and 15 °C gas temperature.
Vitoflame 100 pressure-jet gas burner in conjunction with a Vitoplex
Vitoplex 200 (type SX2) Vitoplex 300 (type TX3A)
Rated output
of the boiler
kW 90 120 150 200 90 115 140 180
Burner output
First/second stage
kW 59/98 78/130 98/163 130/217 59/98 75/125 91/152 118/196
Burner type VG III-2 VG III-3 VG III-4 VG III-5 VG III-2 VG III-3 VG III-4 VG III-5
Product ID CE-0085 AQ 0222 CE-0085 AQ 0222
Voltage V 230 230
Frequency Hz 50 50
Power consumption W 200 225 250 390 225 250 340 390
Motor speed rpm 2800 2800
Version Two-stage Two-stage
Dimensions
Burner:
Length (dimension d) mm 410 410 410 430 410 410 430 430
Width (dimension a) mm 576 576 576 576 576 576 576 576
Height (dimension e) mm 596 596 596 596 596 596 596 596
Gas train:
Dimension f mm 295 295 295 295 295 295 295 295
Dimension b mm 43 51 83 83 51 83 83 102
Dimension g mm 85 63 63 63 63 63 63 15
Dimension h mm 733 733 733 733 733 733 733 743
Dimension c mm 412 420 500 500 420 500 500 545
Weight kg 41 41 41 48 41 41 48 48
Burner with combination valve
Gas supply pressure mbar 20 20
Gas connection R 1 1 1 1¼ 1 1 1 1¼
Connection values
in relation to the max. load
with gas with H
uB
Natural gas E
9.45 kWh/m
3
m
3
/h
10.4 13.8 17.3 23.0 12.1 14.9 19.5 25.9
34.02 MJ/m
3
Natural gas LL
8.13 kWh/m
3
m
3
/h
12.0 16.0 20.1 26.7 14.0 17.4 22.7 30.1
29.25 MJ/m
3
