Viessmann VITOPLEX 300 Type TX3A - Connecting a plastic flue pipe (PPs) to a moisture-resistant chimney (MR chimney, negative pressure)

c
Ø d
Ø a
Boiler flue connection 200/200
A
Test port
B
Optional connection for a flue gas high limit safety cut-out
Boiler flue
connection
Dimension [mm]
7 mm a b c d
200/150 200 150 270 184
200/200 200 — 270 227

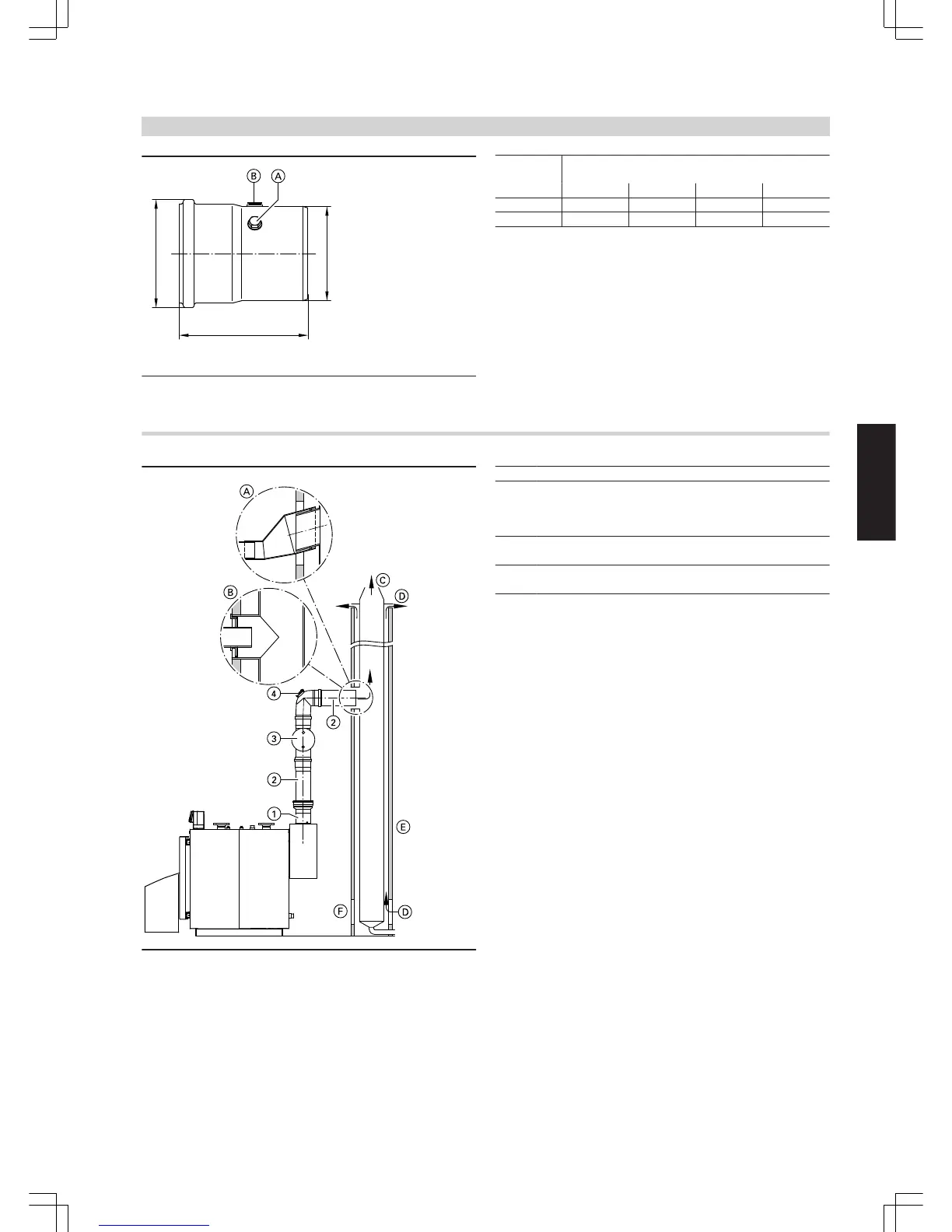

Connecting a plastic flue pipe (PPs) to a moisture-resistant chimney (MR chimney, negative pressure)
A
Plug-in adaptor by Schiedel
B
Plewa adaptor
C
Flue gas
D
Secondary ventilation
E
MR chimney
F
Inspection aperture
1
Boiler flue connection
2
Flue pipe
2 m long
1 m long
0.5 m long
3
Inspection piece, straight
or inspection bend 4
4
Inspection bend, 87°
or inspection piece, straight 3
Vitoradial 300-T condensing boilers may be connected to a moisture-
resistant chimney, if the chimney manufacturer can provide a calcula-
ted verification to DIN EN 13384.
A flue pipe that is pressure sealed and moisture-resistant in accord-
ance with Building Regulations should be used as connecting piece.
Plewa or Schiedel (quoting reference "Schiedel Steck-Adapter") sup-
ply this adaptor from the flue pipe to the MR chimney upon request.
