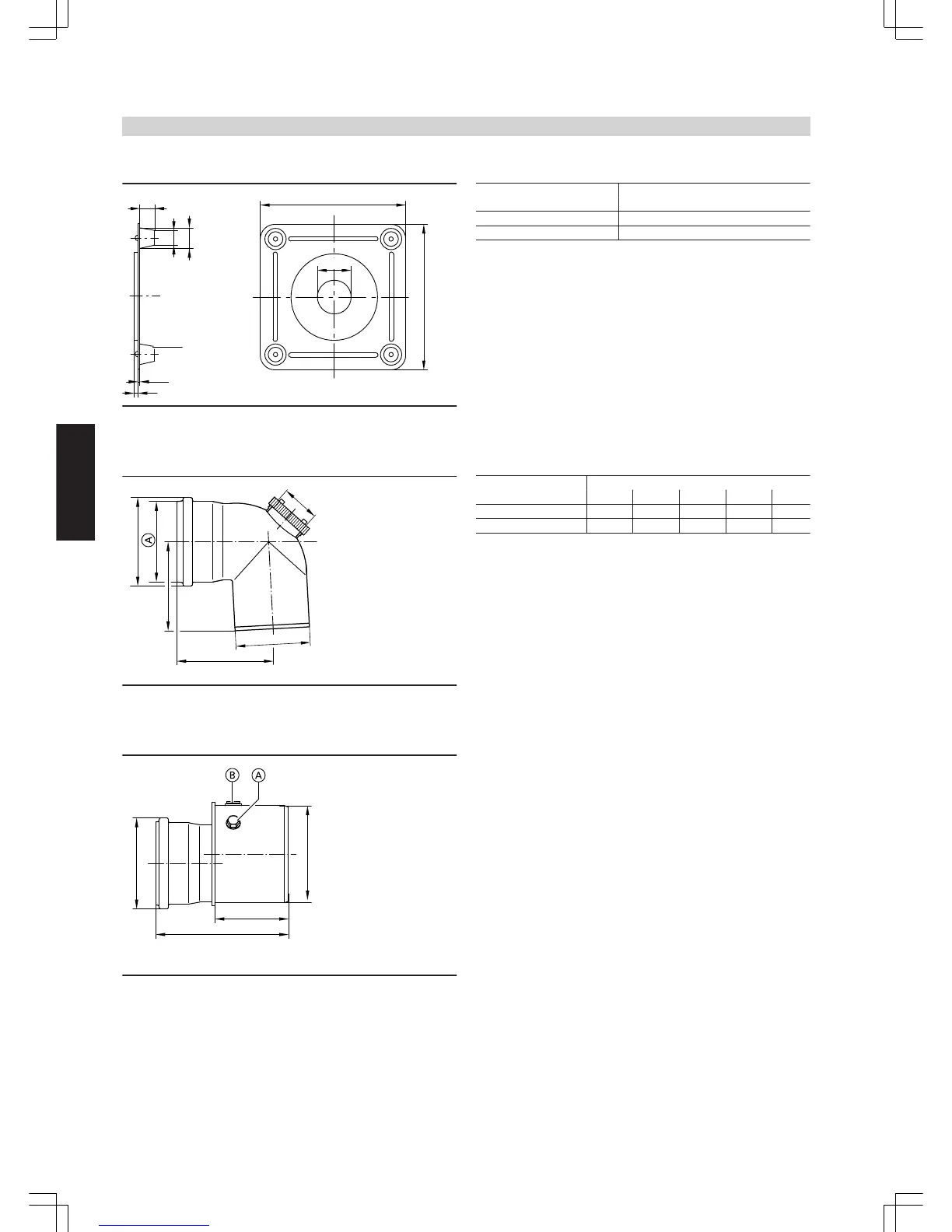

Viessmann VITOPLEX 300 Type TX3A - Ventilation bezel; Inspection bend (87°); Boiler flue connection (order separately)

Ventilation bezel
30
2.5
Ø d
30
40
5
300
300
A
A
Spacers
System size Dimension [mm]
7 mm a
150 160
200 200
Inspection bend (87°)
Ø b
Ø a
e
d
Ø c
A
System size 150 or 200
System size Dimension [mm]
7 mm a b c d e
150 100 160 184 163 159
200 100 200 227 310 350
Boiler flue connection (order separately)
b
c
Ø d
Ø a
Boiler flue connection 200/150
