Viessmann VITOPLEX 300 Type TX3A - Setting heating programs; Adjusting the heating curves (slope and level)

Setting heating programs
The heating system frost protection (see frost protection function)
applies to all heating programs.
You can select the following operating programs with the program
keys:
■ Heating and DHW
■ Only DHW
■ Standby mode
Optional external heating program changeover.
Frost protection
■ The frost protection function is switched on if the temperature drops
approx. +1 °C below the outside temperature, i.e. the heating circuit
pump is switched on and the boiler water is maintained at a lower
temperature (see chapter "Operating conditions with Vitotronic boiler
control units").
■ "Standby mode":
The frost protection function is switched off if the outside temperature
is exceeded by approx.+3 °C, i.e. the heating circuit pump and
burner are switched off.
■ "Heating and DHW"
The frost protection function is switched off if the outside temperature
is exceeded by approx. +3 °C, i.e. the heating circuit pump is
switched off and the low-end boiler water temperature required for
the relevant boiler is maintained as necessary (see chapter "Oper-
ating conditions with Vitotronic boiler control units").
Summer mode
("DHW only")
The burner starts only when the DHW cylinder needs reheating (con-
trolled by the cylinder thermostat).
The respective low-end boiler water temperature of each boiler is
maintained if necessary.

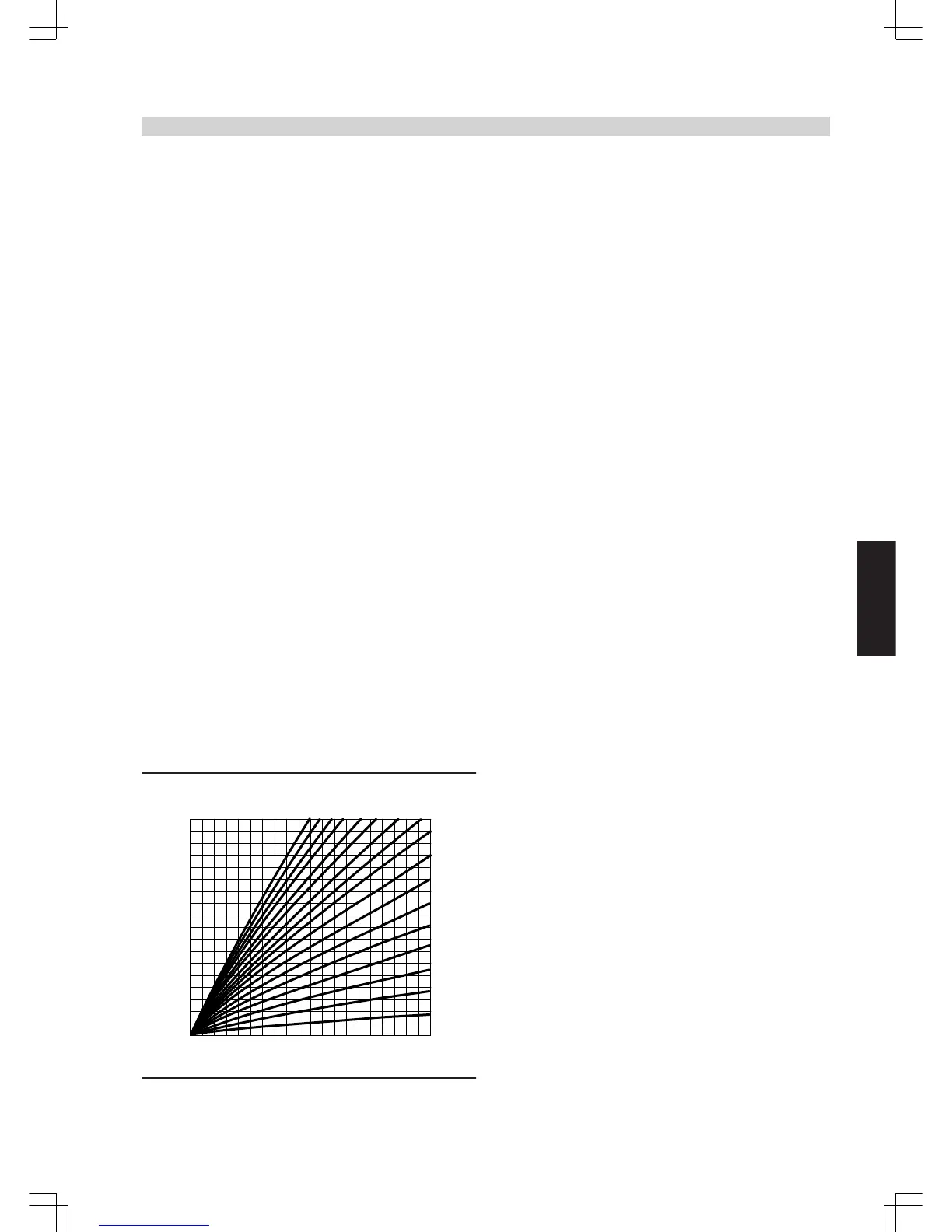

Adjusting the heating curves (slope and level)
The Vitotronic 200 controls the boiler water temperature (= system flow
temperature), subject to weather conditions.
The flow temperature required to reach a specific room temperature
depends on the heating system and the thermal insulation of the build-
ing to be heated.
Adjusting the heating curve matches the boiler water temperature to
these conditions.
The upper boiler water temperature is limited by the thermostat and
the electronic maximum temperature limiter.
0,2
Outside temperature in °C
Boiler water or flow temperature in °C
Slope
2,4
2,6
2,8
3,0
3,2
3,4
90
80
70
60
50
40
30
0 -5 -10 -15 -20510
2,0 2,2
0,4
0,6
0,8
1,0
1,2
1,4
-30-25
100
110
1,6
1,8
1520
Specification
Rated voltage 230 V~
Rated frequency 50 Hz
Rated current 2 x 6 A
Power consumption 10 W
Protection class I
IP rating IP 20 D to EN 60529;
ensure through appro-
priate design/installa-
tion
Function Type 1B to
EN 60 730-1
Permissible ambient temperature
– during operation 0 to +40 °C
Installation in living
spaces or boiler rooms
(standard ambient con-
ditions)
– during storage and transport -20 to +65 °C
Rated capacity of the relay outputs
sÖ
Heating circuit pumps
or
Primary pump, primary store system
Circulation pump
or
Flue gas/water heat exchanger
or
Switching output 4(2) A, 230 V~
sA
Circulation pump for cylinder heat-
ing
4(2) A, 230 V~
sK
DHW circulation pump 4(2) A, 230 V~
sL
Shunt pump 4(2) A, 230 V~
gÖ
Central fault message 4(2) A, 230 V~
gS
Mixer motor constant return temper-
ature control
or
Motor, 3-way mixing valve, primary
store system 0.2(0.1) A, 230 V~
Total sÖ, sA, sK, sL, gÖ, gS
max. 6 A, 230 V~
fA Burner 4(2) A, 230 V~
lÖ Burner, two-stage 1(0.5) A, 230 V~
lÖ Burner, modulating, if installed 0.2(0.1) A, 230 V~
Control units
(cont.)
