PG707W

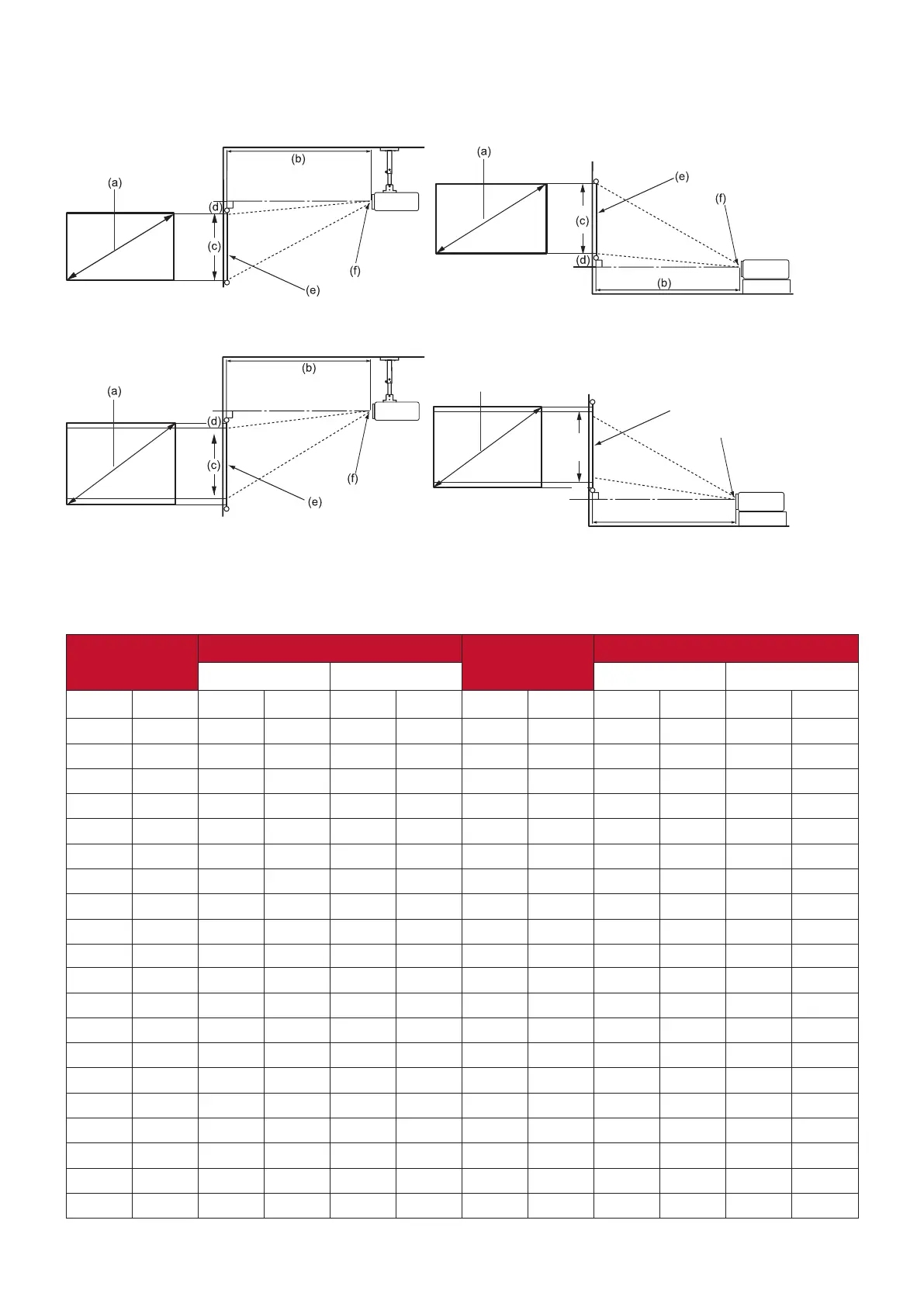

• 16:10 Image on a 16:10 Screen
• 16:10 Image on a 4:3 Screen
(c)
(b)
(e)
(f)
(d)
NOTE: (e) = Screen / (f) = Center of Lens
16:10 Image on a 16:10 Screen
(a) Screen
Size
(b) Projection Distance (c) Image
Height
(d) Vertical Offset
minimum maximum minimum maximum
in. mm in. mm in. mm in. mm in. mm in. mm
30 762 31 779 40 1013 16 404 1.6 40.4 1.6 40
40 1016 41 1039 53 1351 21 538 2.1 53.8 2.1 54
50 1270 51 1299 66 1689 26 673 2.6 67.3 2.6 67
60 1524 61 1559 80 2026 32 808 3.2 80.8 3.2 81
70 1778 72 1818 93 2364 37 942 3.7 94.2 3.7 94
80 2032 82 2078 106 2702 42 1077 4.2 107.7 4.2 108
90 2286 92 2338 120 3039 48 1212 4.8 121.2 4.8 121
100 2540 102 2598 133 3377 53 1346 5.3 134.6 5.3 135
110 2794 112 2857 146 3715 58 1481 5.8 148.1 5.8 148
120 3048 123 3117 160 4052 64 1615 6.4 161.5 6.4 162
130 3302 133 3377 173 4390 69 1750 6.9 175.0 6.9 175
140 3556 143 3637 186 4728 74 1885 7.4 188.5 7.4 188
150 3810 153 3897 199 5066 79 2019 7.9 201.9 7.9 202
160 4064 164 4156 213 5403 85 2154 8.5 215.4 8.5 215
170 4318 174 4416 226 5741 90 2289 9.0 228.9 9.0 229
180 4572 184 4676 239 6079 95 2423 9.5 242.3 9.5 242
190 4826 194 4936 253 6416 101 2558 10.1 255.8 10.1 256
200 5080 205 5195 266 6754 106 2692 10.6 269.2 10.6 269
250 6350 256 6494 332 8443 132 3365 13.2 336.5 13.2 337
300 7620 307 7793 399 10131 159 4039 15.9 403.9 15.9 404
