4
41018
General information
Description
3.5” display for audio or audio/video electronic units, equipped with:
• 3 buttons to call from contacts list with white LED backlighting
• 1 input configurable as external CA lock release push button or PA door open, to be completed with front cover.
The display module provides the function of calling via the contacts list of the Outdoor Station on which it is installed.
If the Outdoor Station has a keyboard art. 41019, calls to the Indoor Stations can also be made by entering the desired
number via the keyboard.
The device also provides visual feedback on the operating phases of the Outdoor Station, such as the indications for
"call in progress" and "talking", in addition to that associated with the entry control modules.
The display module is equipped with an installation menu with which the basic Outdoor Station configuration parameters
can be managed.

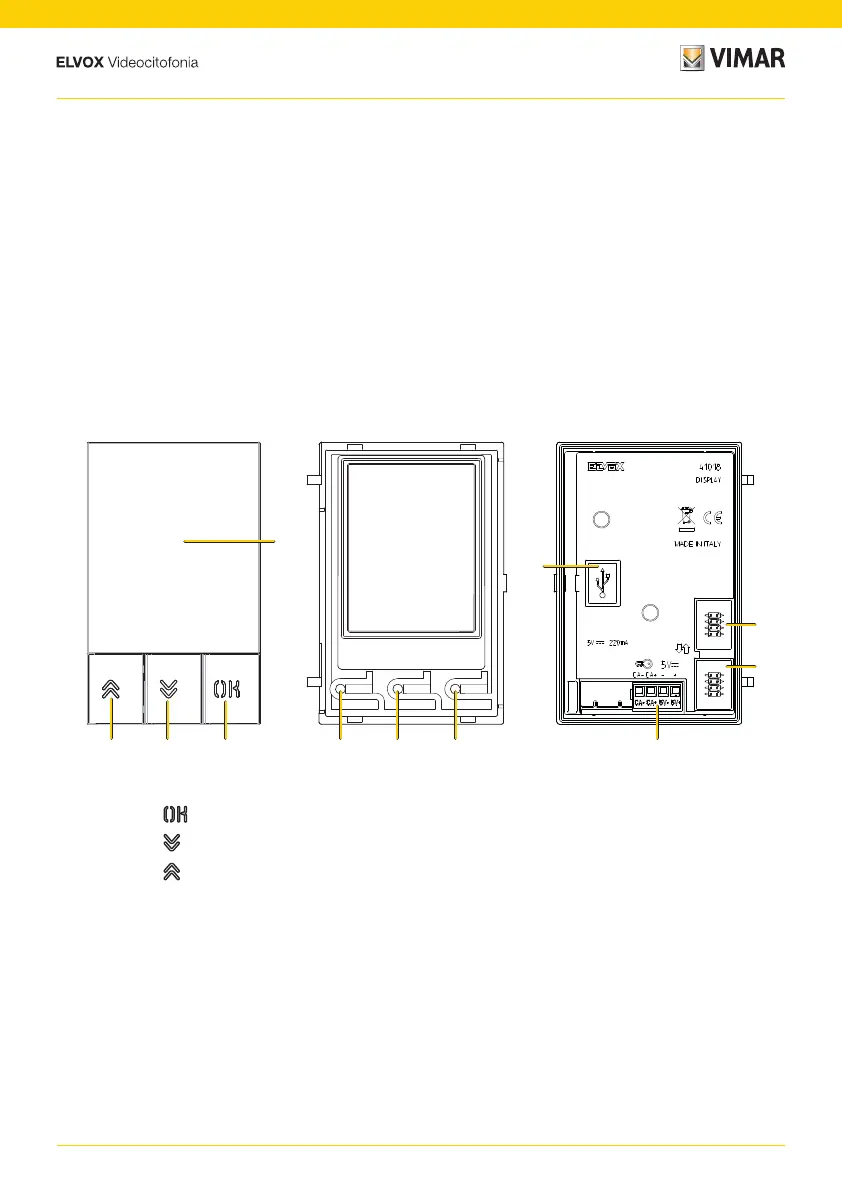

Buttons and connections
1. 3.5” display
2. Push button
3. Push button (DOWN)
4. Push button
(UP)
5. Mini USB connector for connection to a PC.
6. Connector for connection to the previous electronic module
7. Connector for connection to the next electronic module
8. Removable connection terminal block
CA - / CA + = Input that can be programmed using configuration software (e.g. lock release control, door open
warning sensor, activation of available system actuator).
Note: connect to an isolated SELV voltage-free contact.
5
6
7
1
