No main counting direction
• The counter counts once starting with the load value.
• You may count forward and backwards.
• The count limits are set to the maximum count range.
• At over- or underrun at the count limits, the counter jumps to the
according other count limit and counts from there on. The gate is
automatically closed.
• To restart the count process, you must create a positive edge of the
gate.
• At interrupting gate control, the count process continuous with the last
recent counter value.
• At aborting gate control, the counter starts with the load value.
Valid value range
Lower count limit - 2 147 483 648 (-2
31
)
Upper count limit + 2 147 483 647 (2
31
-1)
Counter value - 2 147 483 648 (-2
31
) to + 2 147 483 647 (2
31
-1)
Load value - 2 147 483 647 (-2
31
+1) to + 2 147 483 646 (2
31
-2)

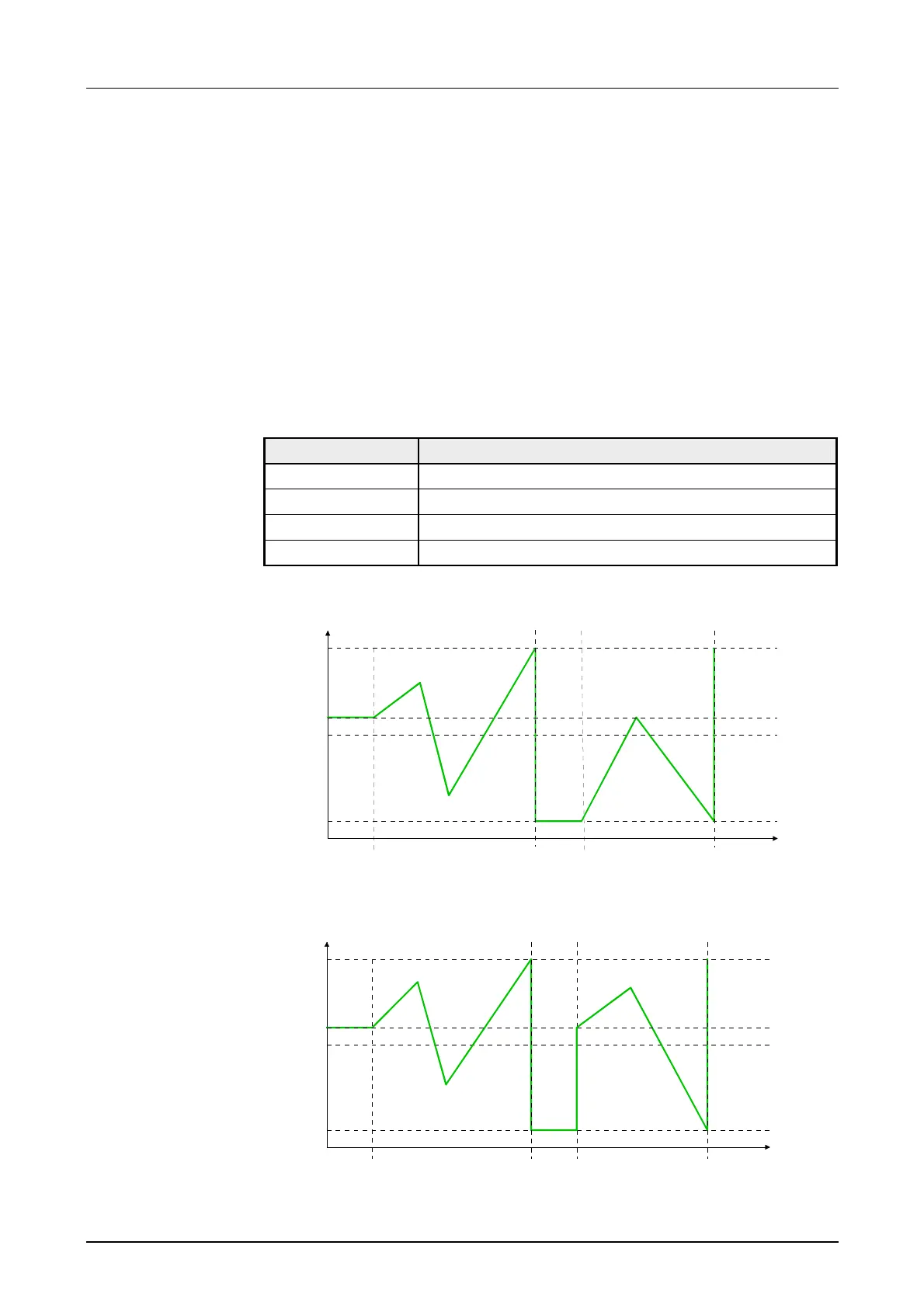

Interrupting gate control:
upper
counter limit
lower
counter limit
load value
0
gate start
overflow
underflow
time
counter value
gate stop
automatically
gate start
gate stop
automatically
Aborting gate control:
upper
counter limit
lower
counter limit
load value
0
gate start
overflow
underflow
time
counter value
gate stop
automatically
gate start
gate stop
automatically
Once
