Chapter 2 Analog input modules Manual VIPA System 200V
2-32 HB97E - SM-AIO - Rev. 12/32
231-1BD70 - AI 4x12Bit, ±
±±
±10V, isolated

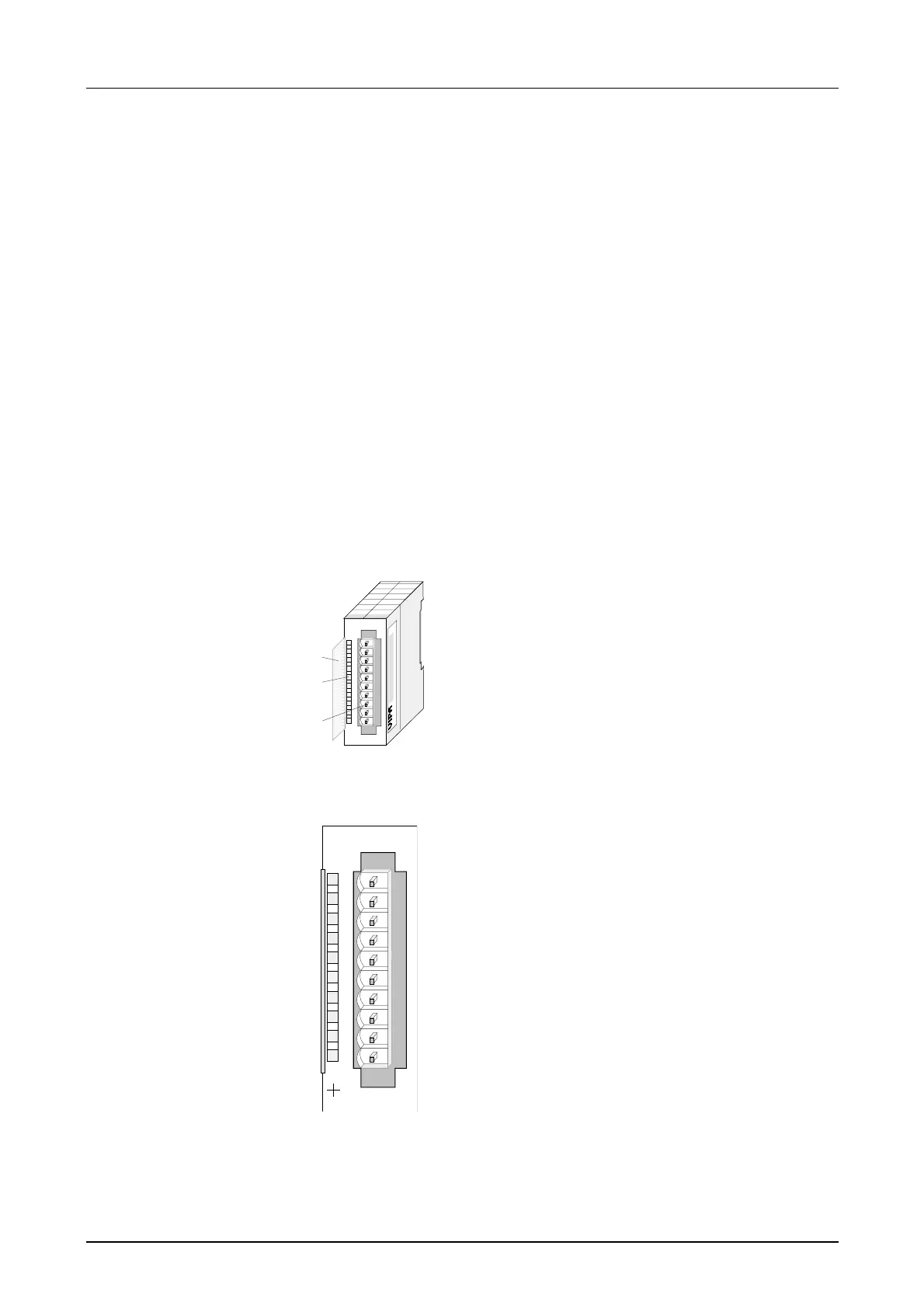

AI 4x12Bit, ±10V, isolated VIPA 231-1BD70
The module has 4 inputs that are permanently configured to measure
voltage signals (±10V). This module requires a total of 8byte of the process
image for the input data (2byte per channel).
The measured values are returned in S5 format from Siemens. DC/DC
converters and isolation amplifiers are employed to provide electrical
isolation for the channels of the module with respect to the backplane bus
and between the different channels.
4 inputs, channels isolated from the backplane bus and from each other
(Galvanic isolation of the channels by means of isolation amplifiers)
Permanently configured for voltage measurements
No parameterization required
Suitable for transducers with ±10V outputs
1
2
3
[1]
[2]
[3]
Label for the bit address with
description
LED status indicator
Edge connector
AI 4x12Bit 10V
SM 231
+0
M0
+1
M1
+2
M2
+3
M3
VIPA 231-1BD70
X2
3
4
1
2
3
4
5
6
7
8
9
I0
Pin
1
2
3
4
5
6
7
8
9
10
Assignment
pos. connection Channel 0
Channel 0 common
pos. connection Channel 1
Channel 1 common
pos. connection Channel 2
Channel 2 common
pos. connection Channel 3
Channel 3 common
