VIPA 238-2BC00 - 232-1 BD51 - AO 4 X12 Bit, Multioutput

Chapter 3 Analog output modules Manual VIPA System 200V
3-16 HB97E - SM-AIO - Rev. 12/32

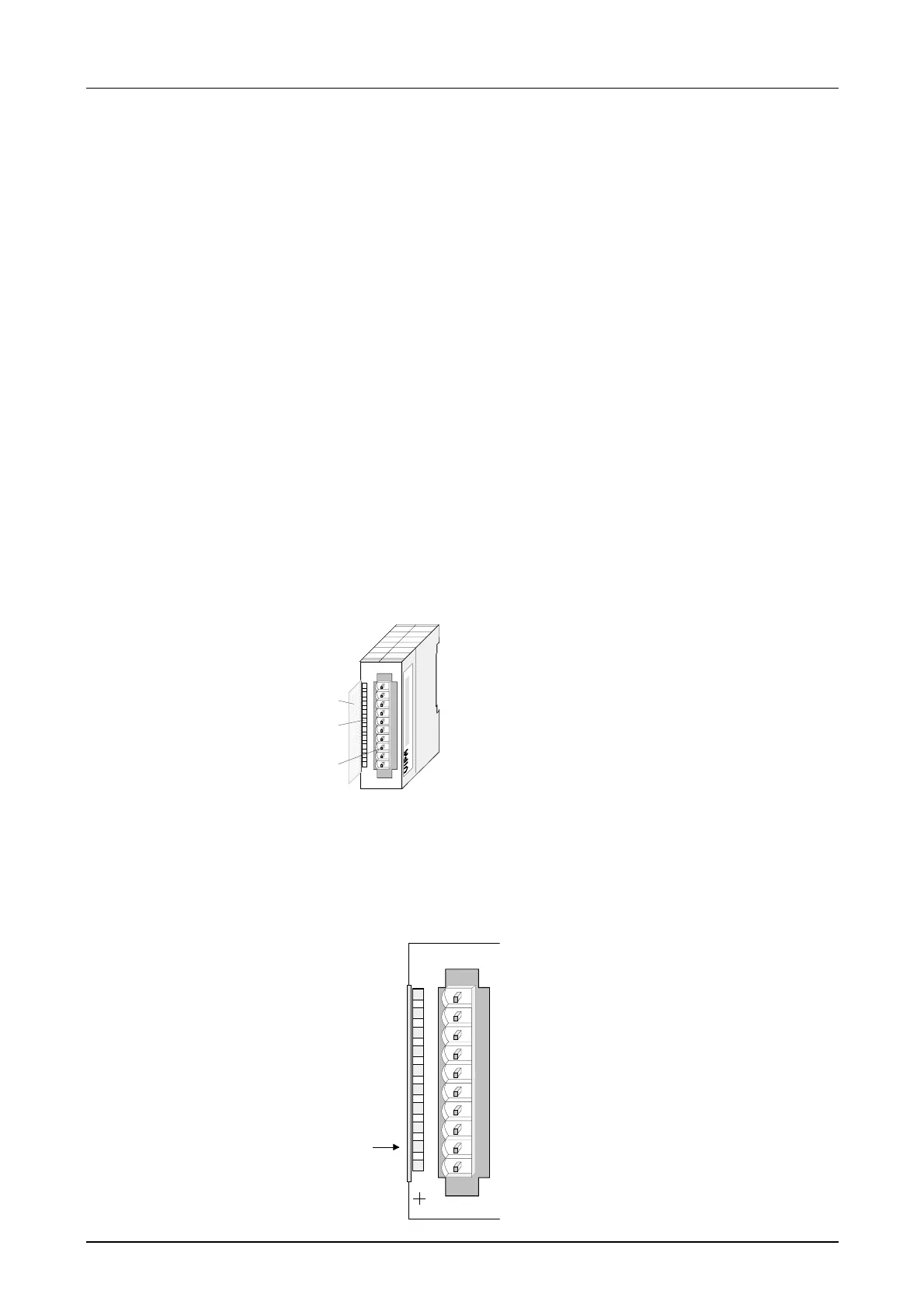

232-1BD51 - AO 4x12Bit, multioutput
AO 4x12Bit multioutput VIPA 232-1BD51
Please be aware that this Module cannot be operated on a Profibus DP
slave with revision level 4 or less. In this case please use our (spare-part)
Module with order-no.: VIPA 232-1BD50 which has the identical function.
This module provides 4 outputs that can be configured individually. The
module occupies a total of 8byte of output data (2byte per channel) in the
process image. These values have to be defined as left justified two’s
complement entries.
Galvanic isolation between the channels on the module and the backplane
bus is provided by means of DC/DC converters and optocouplers. The
module requires an external supply of DC 24V.
• 4 outputs with common ground
• Outputs with individually configurable functions
• Suitable for connection to actuators requiring ±10V, 1 ... 5V, 0 … 10V,
±20mA, 4 … 20mA or 0 ... 20mA inputs
• Diagnostic LED and diagnostic function
1
2
3
[1]
[2]
[3]
Label for the bit address
with description
LED status indicator
Edge connector
LED
SF
Description
Diagnostic LED (red)
turned on by:
- a short circuit is
detected at the
control voltage output
- an open circuit is
detected on the
current output line
- wrong parameter at
module
- the module does not
receive supply
voltage
AO 4x12Bit
SM 232
SF
VIPA 232-1BD51
X2
34
1
2
3
4
5
6
7
8
9
I0
Pin
1
2
3
4
5
6
7
8
9
10
Assignment
DC 24V supply voltage
+ Channel 0
Channel 0 common
+ Channel 1
Channel 1 common
+ Channel 2
Channel 2 common
+ Channel 3
Channel 3 common
Supply voltage common
Order data
Description
Properties
Construction
Status indicator
pin assignment
