Manual VIPA System 200V Chapter 3 Analog output modules
HB97E - SM-AIO - Rev. 12/32 3-11

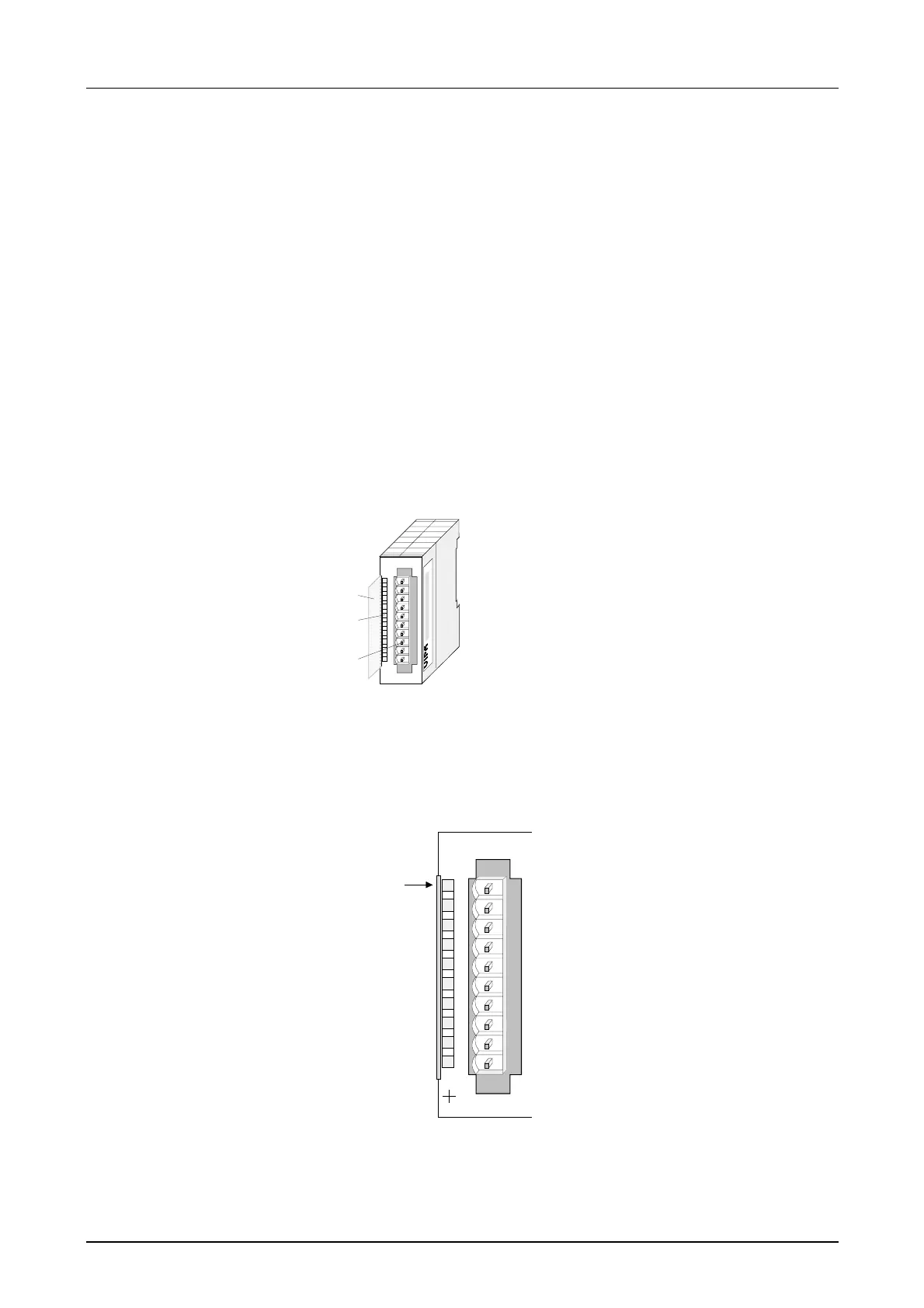

232-1BD40 - AO 4x12Bit, 0/4...20mA - ECO
AO 4x12Bit, 0...20mA, 4 ... 20mA VIPA 232-1BD40
This module provides 4 outputs that can be configured individually. The
module occupies a total of 8byte of output data (2byte per channel) in the
process image. These values have to be defined as left justified two’s
complement entries.
Galvanic isolation between the channels on the module and the backplane
bus is provided by means of DC/DC optocouplers. The module requires an
external supply of DC 24V.
• 4 outputs with common ground
• Outputs with individually configurable functions
• Suitable for actuators with 0 ... 20mA or 4 ... 20mA input
1
2
3
[1]
[2]
[3]
Label for the bit address
with description
LED status indicator
Edge connector
LED
L+
Description
LED (green)
supply voltage is on
AO 4x12Bit
SM 232
L+
VIPA 232-1BD40
X2
34
1
2
3
4
5
6
7
8
9
I0
Pin
1
2
3
4
5
6
7
8
9
10
Assignment
DC 24V supply voltage
+ Channel 0
Channel 0 common
+ Channel 1
Channel 1 common
+ Channel 2
Channel 2 common
+ Channel 3
Channel 3 common
Supply voltage common
Order data
Description
Properties
Construction
Status indicator
pin assignment
