Manual VIPA System 200V Chapter 2 Analog input modules
HB97E - SM-AIO - Rev. 12/32 2-47
231-1FD00 - AI 4x16Bit f
AI 4x16Bit f VIPA 231-1FD00
The module has 4 fast (f=fast) inputs that you may configure individually.
The module requires a total of 8 input data bytes in the process image
(2byte per channel).
Isolation between the channels on the module and the backplane bus is
provided by means of DC/DC converters and optocouplers.
• Using each 4 channels, the cycle time is ca. 0.8ms
• Different channels are individually configurable and may be turned off
• LED for signaling wire break in current loop operation
• Diagnostic function
• Resolution 16Bit
• Easy to connect 2-wire current sensors via splitting the front power
supply
• Potentiometer are supplied via internal reference power supply
1
2
[1]
[2]
LED status indicator
Edge connector
Order data
Description
Properties

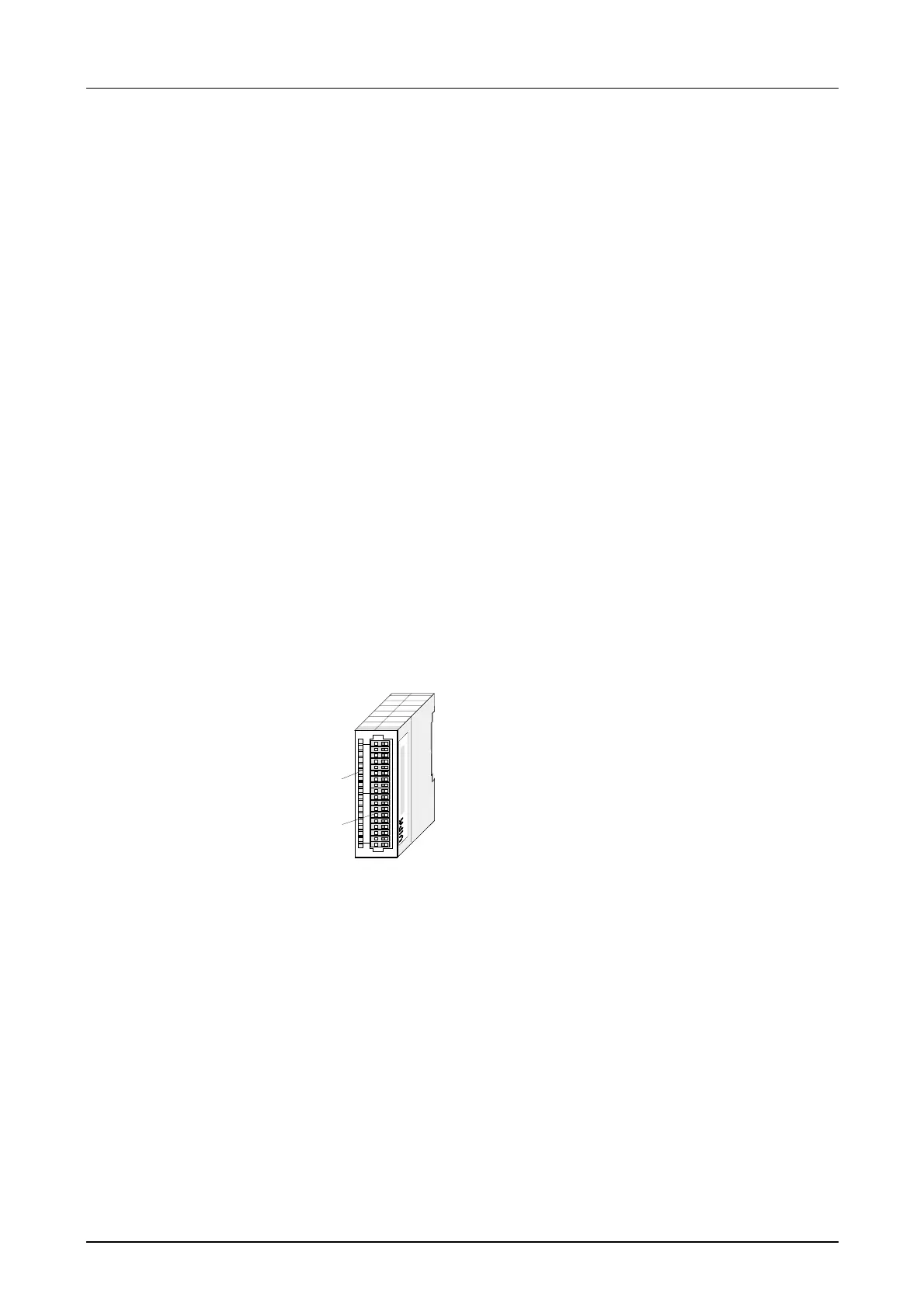

Construction
