VIPA 238-2BC00 - Page 61

Manual VIPA System 200V Chapter 2 Analog input modules
HB97E - SM-AIO - Rev. 12/32 2-37
LED
F0...F7
SF
Description
LED (red):
error for each channel
LED (red):
sum error
F0
F1
F2
F3
F4
F5
F6
F7
SF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

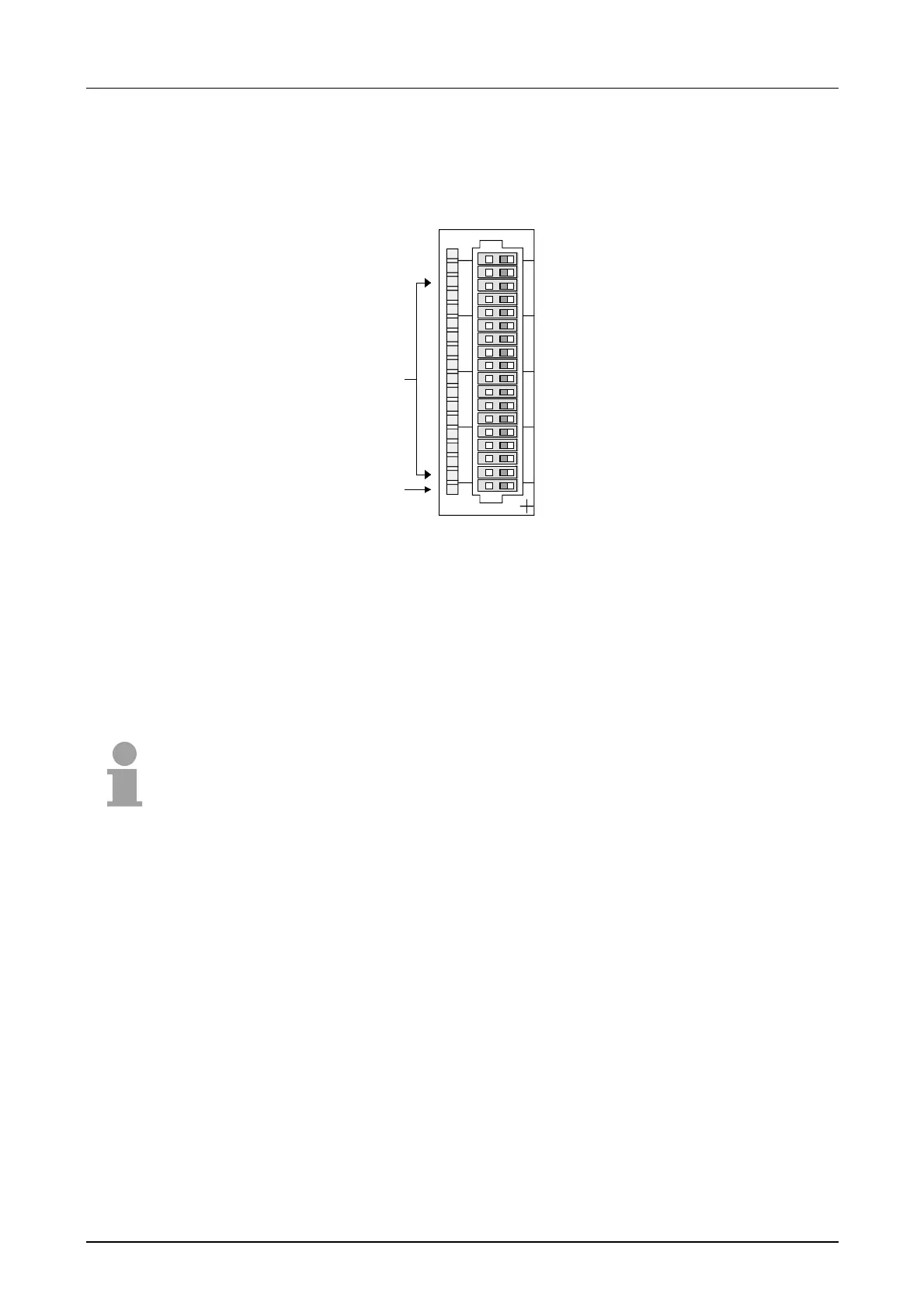

VIPA 231-1BF00
X2
34
AI 8x16Bit
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Assignment
not connected
pos. connection Ch.0
Channel 0 common
pos. connection Ch.1
Channel 1 common
pos. connection Ch.2
Channel 2 common
pos. connection Ch.3
Channel 3 common
pos. connection Ch.4
Channel 4 common
pos. connection Ch.5
Channel 5 common
pos. connection Ch.6
Channel 6 common
pos. connection Ch.7
Channel 7 common
not connected
Note!
Unused inputs on activated channels have to be connected to the respec-
tive ground.
This is not necessary when the unused channels are turned off by means
of FFh.
Status indicator
pin assignment
