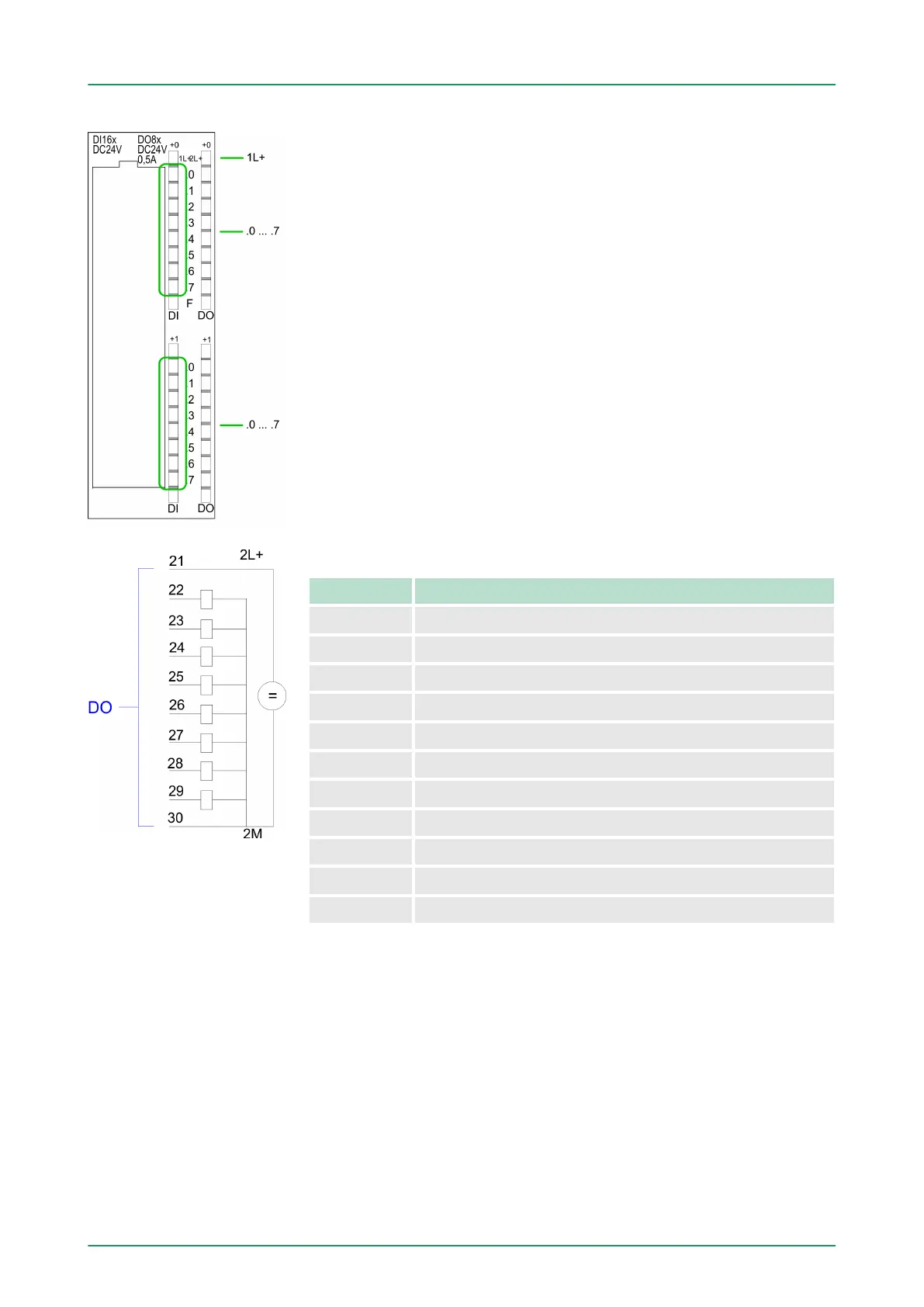

Status indication X11: DI
n 1L+
–
LED (green)
Supply voltage available for DI
n .0 ... .7
– LEDs (green)
I+0.0 ... I+0.7
I+1.0 ... I+1.7
Starting with ca. 15V the signal "1" at the input is recognized
and the according LED is activated
Pin assignment X11: DO
Pin Assignment
21 2L+ Power supply +DC 24V
22 O+0.0 / Channel 0 Output
23 O+0.1 / Channel 1 Output
24 Q+0.2
25 Q+0.3
26 Q+0.4
27 Q+0.5
28 Q+0.6
29 Q+0.7
30 Ground 2M DO
31 ... 40 not used
VIPA System 300SHardware description
Structure > In-/Output area CPU 312-5BE13
HB140 | CPU-SC | 312-5BE13 | GB | 15-50 30
