ViscoTec RD-EC User Manual

Operating and Assembly Instructions
Dispenser RD-EC12 / 27
Version 1.2
4.2 Stator replacement
Preparation:
• Switch off the drive to the dispenser and lock it to prevent it from being switched on
again.
• Shut down the feed device.
• Release the admission pressure.
• Dismantle the dispenser from the drive if necessary.
4.2.1 Removing the stator
• Unscrew the end connection (5).
• Undo the setscrew (16).
• Unscrew/pull off the stator (4)
Tip: When unscrewing / pulling off the stator, it can be helpful to lock the drive shaft with
a suitable tool (pin, screwdriver, etc.) to prevent it from turning.

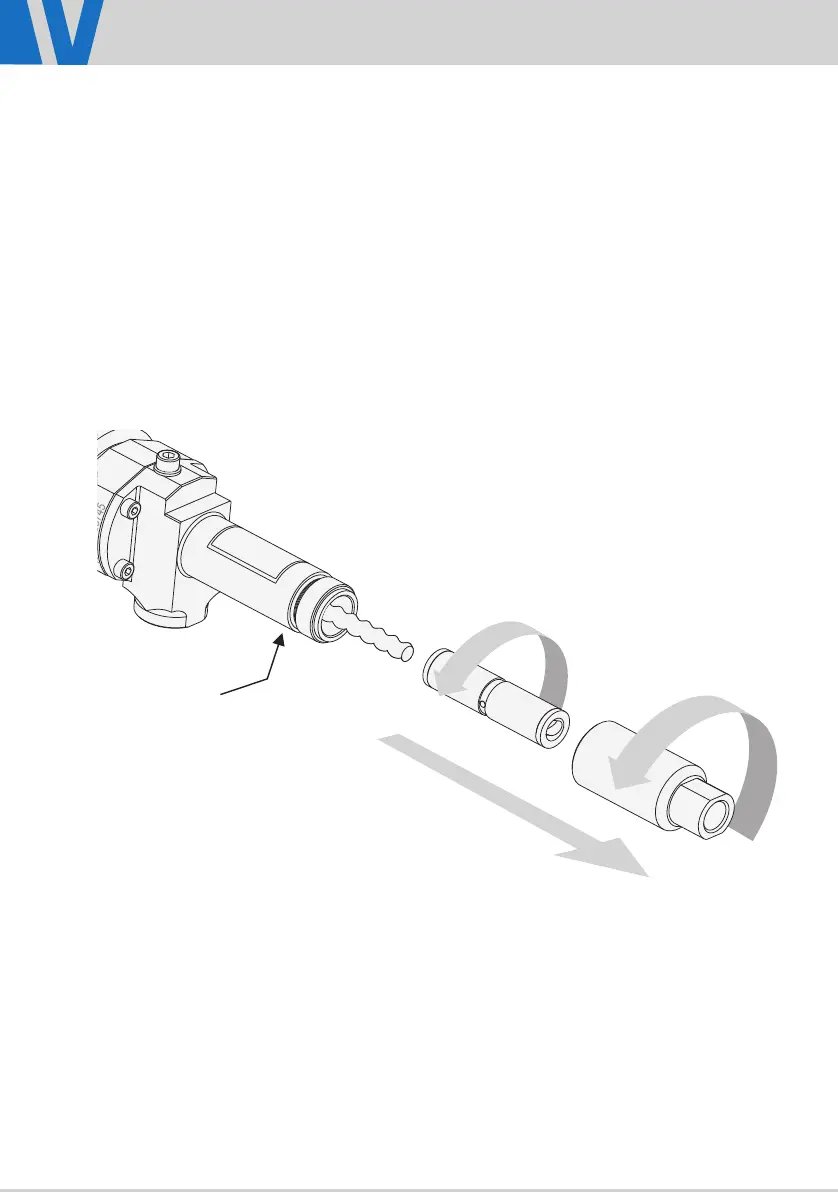

12345
12345
16
4
5
Fig. 3
