DUETE-2/DuetD-2 USER MANUAL
INSTALLATION AND CONNECTIONS (SYSTEM E XAMPLES )
•

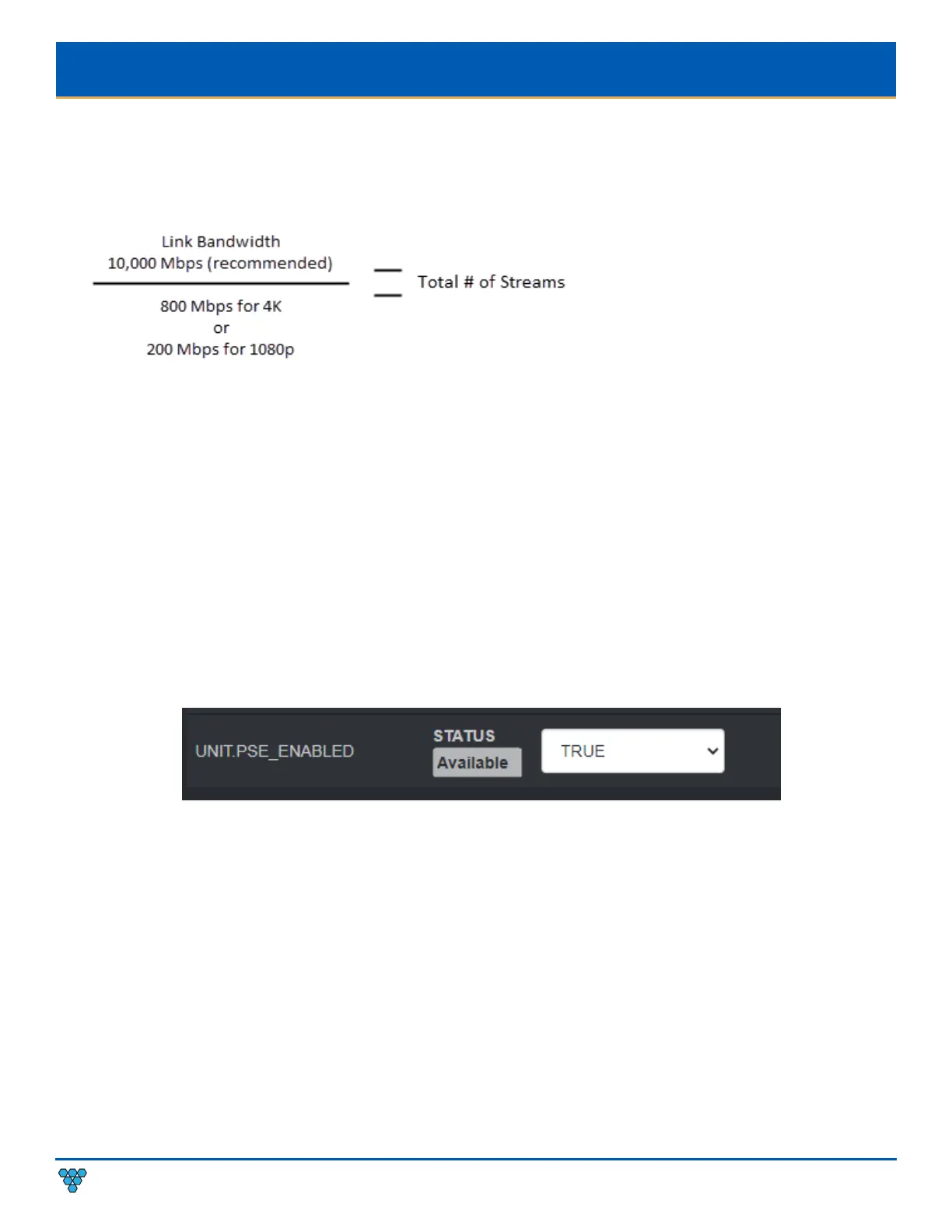

The maximum number of streams possible between switches = link bandwidth (10Gbps) / 800Mbps (for 4K) x number of
encoders (or 200Mbps for 1080p).
• For 4K streaming, the total number of streams (800xn) must be ≤ 10,000.
• For 1080p streaming, the total number of streams (200xn) must be ≤ 10,000.
DUET-2 LAN1 & LAN2 ETHERNET EXPANSION PORT
Duet-2 is equipped with a single main gigabit (LAN1) Port for 4K UHD Video, Dante™/AES67, Control, and Powered Device (PD). This
single Ethernet port is used for Video over IP and Dante™/AES67 audio embedding and de-embedding, with VLAN tagging capability to
separate Audio & Video network traffic as needed.
Duet-2 is also equipped with an Ethernet Expansion (LAN2) Port - Power Sourcing Equipment (PSE). This port enables network
connectivity for control and IP traffic pass-through to remote LAN devices (ex. displays, projectors, control touch-panels). The port
can also be used to daisy-chain multiple endpoints for easy video wall creation or extend distances to displays.
Power connected devices with PoE pass-through.
Duet-2 Encoders and Decoders only require standard PoE power (15w or lower), however, when PoE+ is supplied to the Main LAN1
port you can pass-through PoE power to devices connected to the LAN2 Ethernet Expansion Port.
When PoE+ is supplied to the LAN1 port, the UNIT.PSE_ENABLED status found at the bottom of the unit’s web UI Network tab will
display “Available.” When the Status window displays “Available,” use the drop-down menu to choose either TRUE or FALSE. When
set to TRUE, PoE will be supplied out the LAN2 Ethernet Expansion port.
