DUETE-2/DuetD-2 USER MANUAL
INSTALLATION AND CONNECTIONS (SYSTEM E XAMPLES )
MANY SOURCES TO MANY DISPLAYS
Sending video from multiple sources to multiple displays requires a network switch. Multiple encoders can be linked to multiple
decoders
(multipoint-to-multipoint) over a network. The many encoders to many displays configuration allow almost any number of
sources and displays. Multiple switches can be linked by fiber, providing flexibility and scalability, and expanding the size and reach
of the configuration to a practically limitless scale.
Each encoder and each decoder can be located no more than 100m (328ft) from the switch.

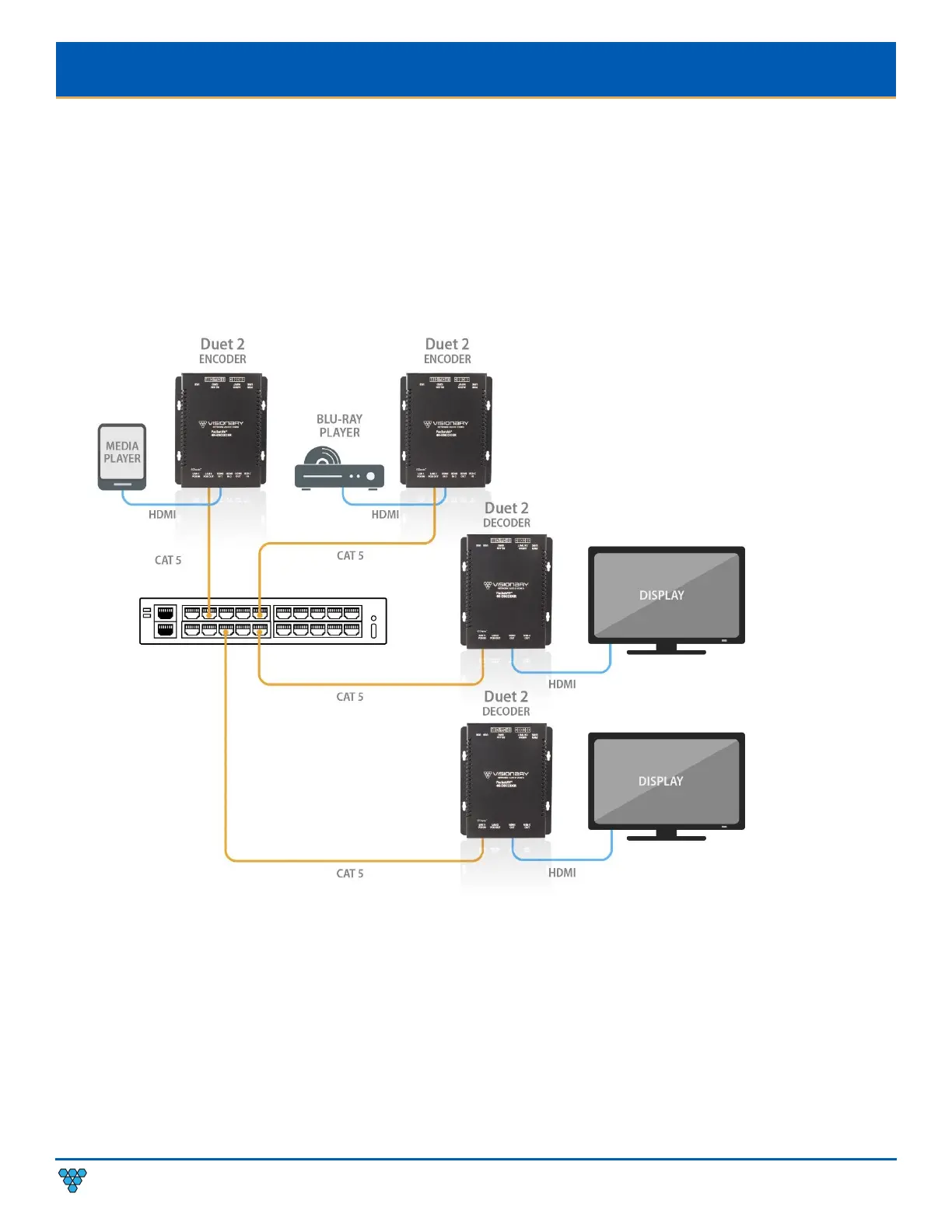

Figure 6. Many Sources to Many Displays Diagram
