DUETE-2/DuetD-2 USER MANUAL
ENCODER OPTIONS

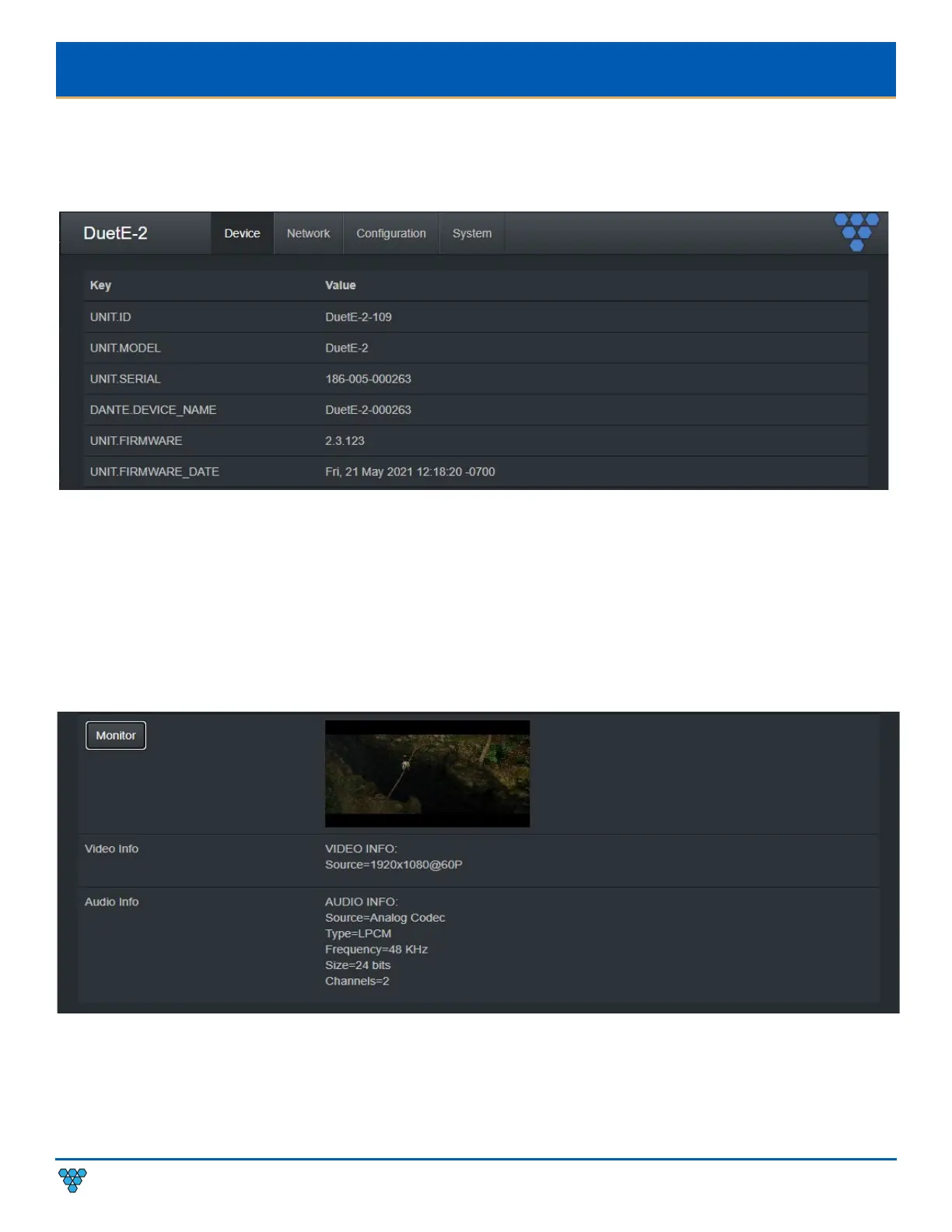

DUETE-2 ENCODER DEVICE TAB
UNIT.ID – By default, the UNIT.ID of the encoder is the Model Number and the serial number (e.g., DuetE-2-000263, serial
number: 186-005-000263
). The UNIT.ID can be changed by the user on the Network tab.
UNIT.MODEL – DuetE-2 (encoder).
UNIT.SERIAL – The serial number of the unit. The serial number can also be found on the bottom label of each unit.
DANTE.DEVICE_NAME – The current Dante™ device name of the DuetE-2.
UNIT.FIRMWARE – The current firmware version of the unit.
UNIT.FIRMWARE_DATE – The date the firmware was released.
MONITOR BUTTON – Displays the live thumbnail preview of the video being transmitted to the AV stream.
VIDEO INFO – Displays the current source resolution being transmitted to the AV steam.
AUDIO INFO - Displays the current source audio codec, type, frequency, size, and number of channels.
