DUETE-2/DuetD-2 USER MANUAL
INSTALLATION AND CONNECTIONS (SYSTEM
E
XAMPLES
)
M
ANY SOURCES TO MANY DISPLAYS WITH USB OVER IP (KVM)
Allowing users to remotely access and control computers from multiple sources with multiple displays requires a network switch.
Multiple encoders can be linked to multiple decoders
(multipoint-to-multipoint)
over a network. The many encoders to many
displays configuration allow almost any number of sources and displays. Multiple switches can be linked by fiber, providing
flexibility and scalability, and expanding the size and reach of the configuration to a practically limitless scale.
Each encoder and each decoder can be located no more than 100m (328ft) from the switch.

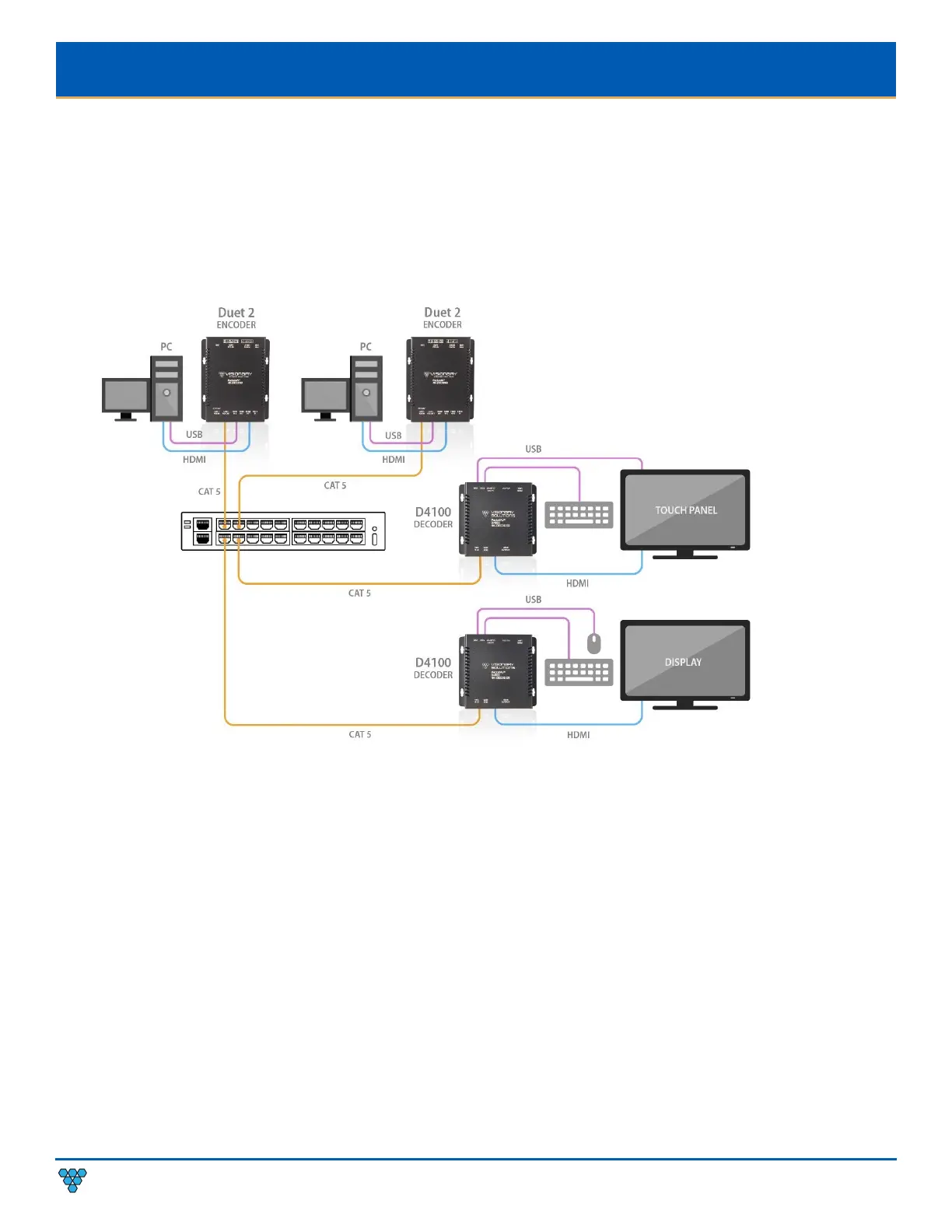

Figure 7. Many Sources to Many Displays with USB over IP Diagram
