Quantum Plus installation and user manual

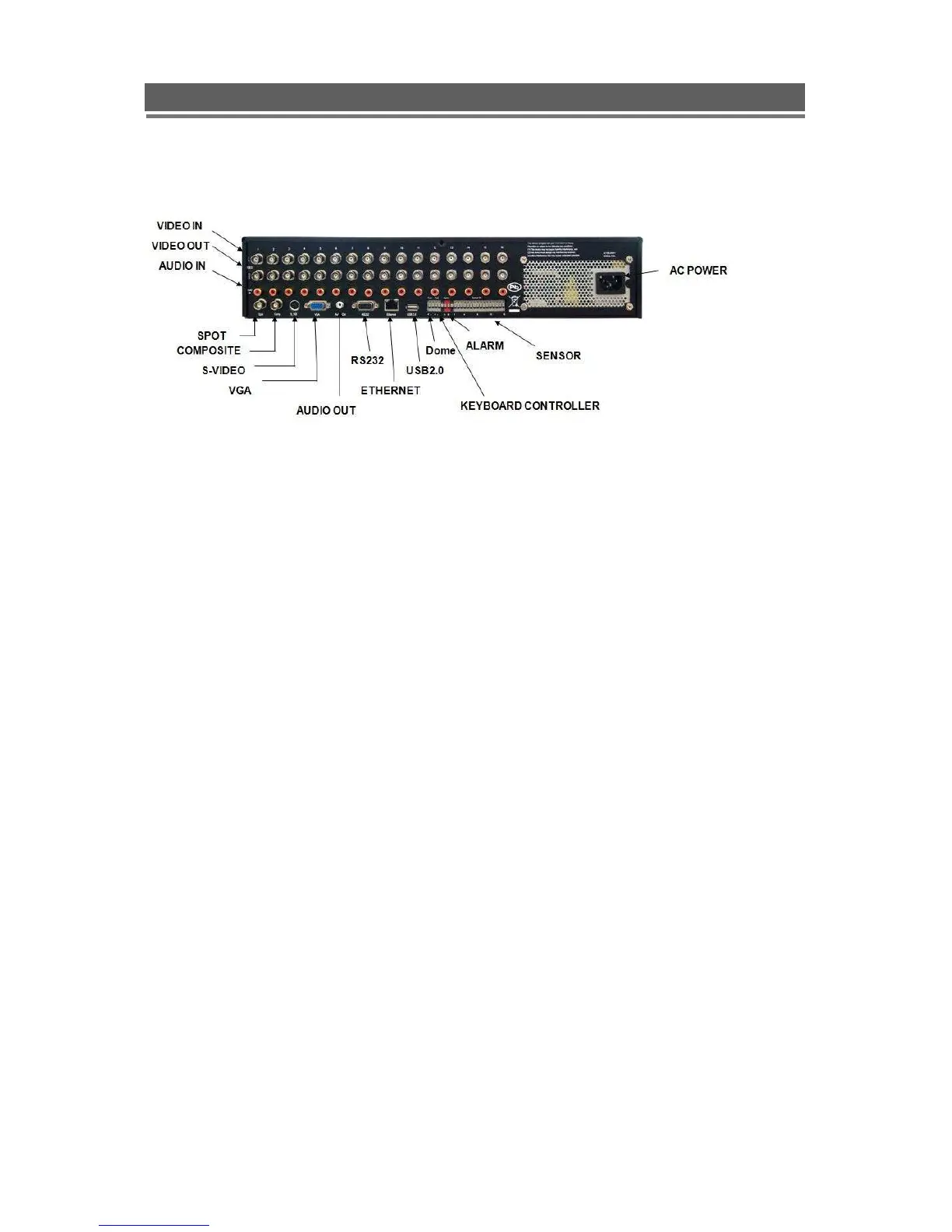

REAR PANEL CONNECTIONS
VIDEO IN (BNC)
- 16/8/4 Camera input (1.0v p-p, 75
Ω)
VIDEO OUT
- 16/8/4 LOOP / SPOT / Composite / S-VIDEO / VGA
LINE AUDIO INPUT
- 16/8/4 Audio input through line
AUDIO OUTPUT
- 1 Audio output
RS232
- 1 Serial Communication
Network Port (RJ-45)
- Connecting to the Quantum DVR through Internet or LAN
USB 2.0
-USB 2.0 connector for mouse control.
ALARM / SENSOR
- ALARM / 16/8/4 SENSOR INPUT / 1 OUTPUT PORT
CAMERA / KEYBOARD CONTROLLER
- 1 Serial Communication for Pan / Tilt Camera
- 1 Serial Communication for P/T/Z Control Keyboard
AC POWER
- AC 110~240 V
