PARTS
22 CHAPTER 2
2.18 THERMOSTAT PT100 - SOLDERPOT & MACHINE TEMPERATURE

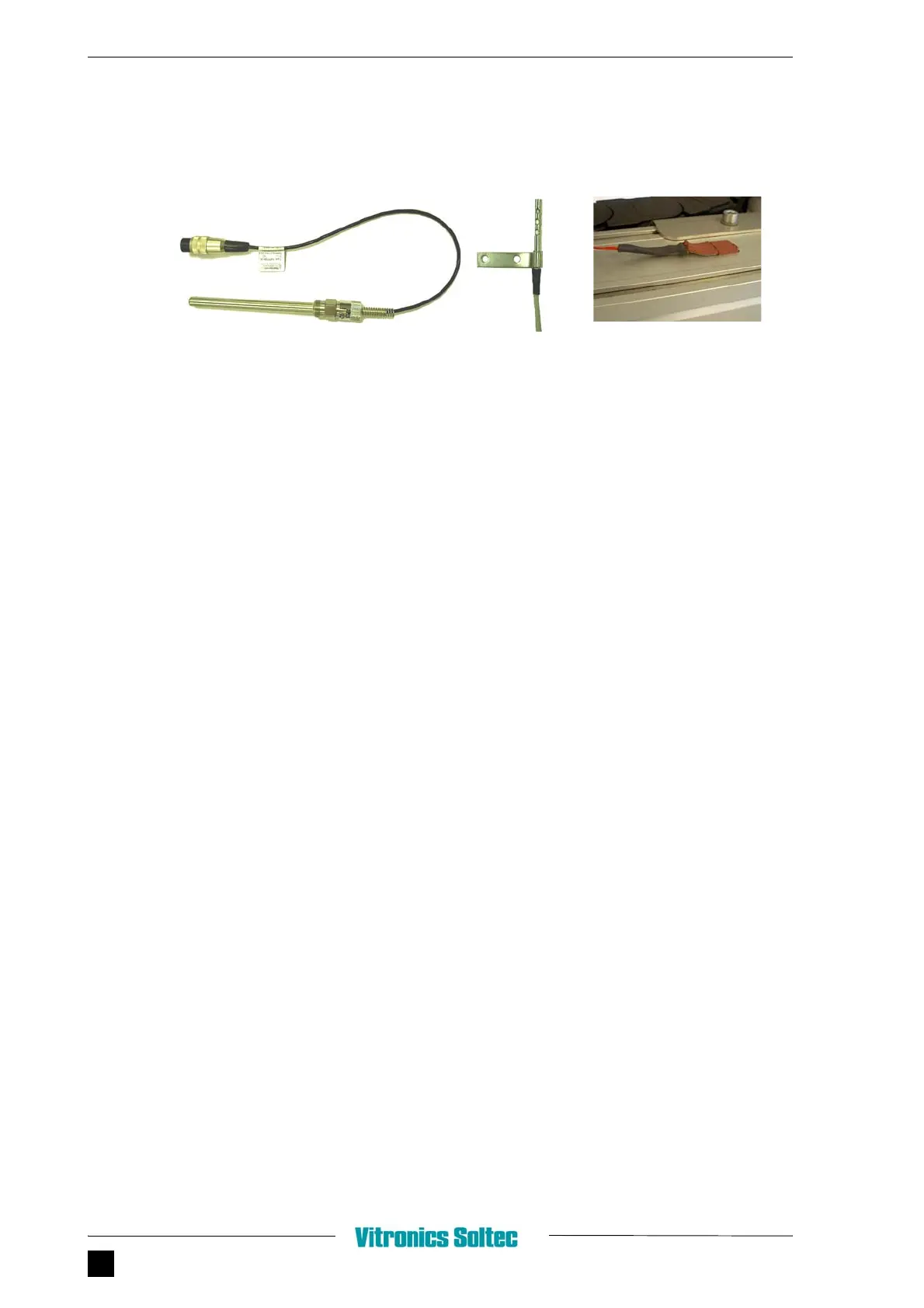

FIGURE 2.32 THERMOSTAT PT100
Part nr. 312656
Description Thermostat PT100-3L Art. P1778505010
B1 Temperature MultiWave or SelectWave solderpot 1
B2 Temperature MultiWave or SelectWave solderpot 2
Part nr. 39536
Description Thermostat PT100-3L Art. P1778502016
B3 Temperature machine
Part nr. 42031
Description Thermostat PT100 Surface Temp. Type 304082509
B5 Temperature Robot X - axis
B6 Temperature Robot Y - axis
Part nr. 312656
Part nr. 39536
Part nr. 42031
