2.19 - IMPULSE COUNTER CONVEYOR & SOLDERPOT PUMPS
Schematics & Parts mySelective.com
CHAPTER 2 23
2.19 IMPULSE COUNTER CONVEYOR & SOLDERPOT PUMPS

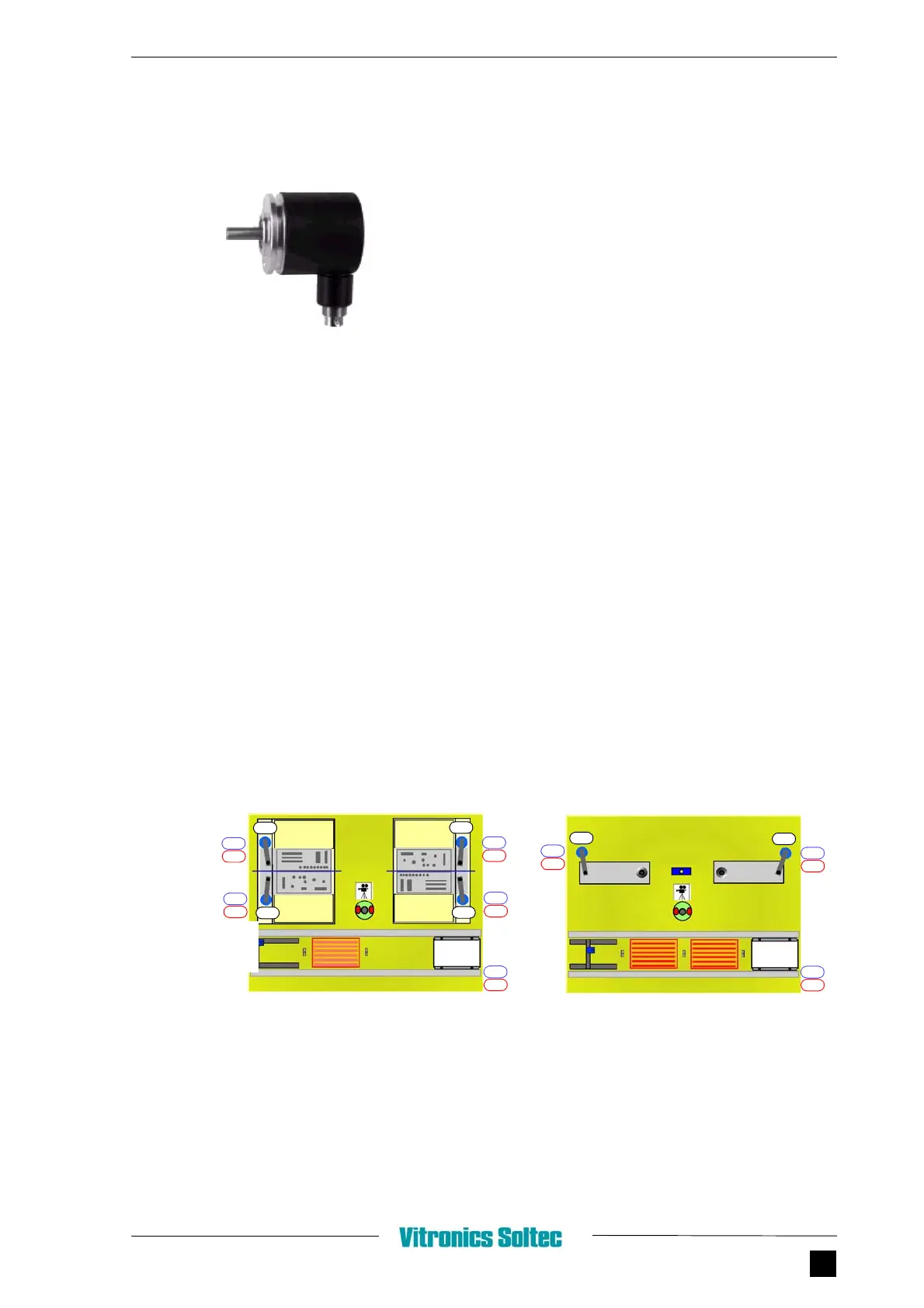

FIGURE 2.33 IMPULS COUNTER
Part nr. 41938
Description Sensor impulse incremental Baumer BDK 06.24K100/5/9
B25 Impulse counter conveyor
Part nr. 41827
Description Sensor impulse INCR Baumer BHK 16.24 1000-B6-9
B21 Impulse counter solderpot 1: pump 1A MultiWave
B22 Impulse counter solderpot 1: pump 1 SelectWave
pump 1B MultiWave
B24 Impulse counter solderpot 2: pump 2B MultiWave
B26 Impulse counter solderpot 2: pump 2 SelectWave
pump 2B MultiWave
motor
M9
controller
U7
motor
M9
controller
U7
motor
M8
controller
U6
motor
M14
controller
U9
motor
M13
controller
U8
motor
M14
controller
U9
motor
M7
controller
U5
motor
M7
controller
U5
pump
1B
pump
1A
pump
2B
pump
2A
pump
1
pump
2
B22
B22
B21
B26
B26
B24
B21
B21
