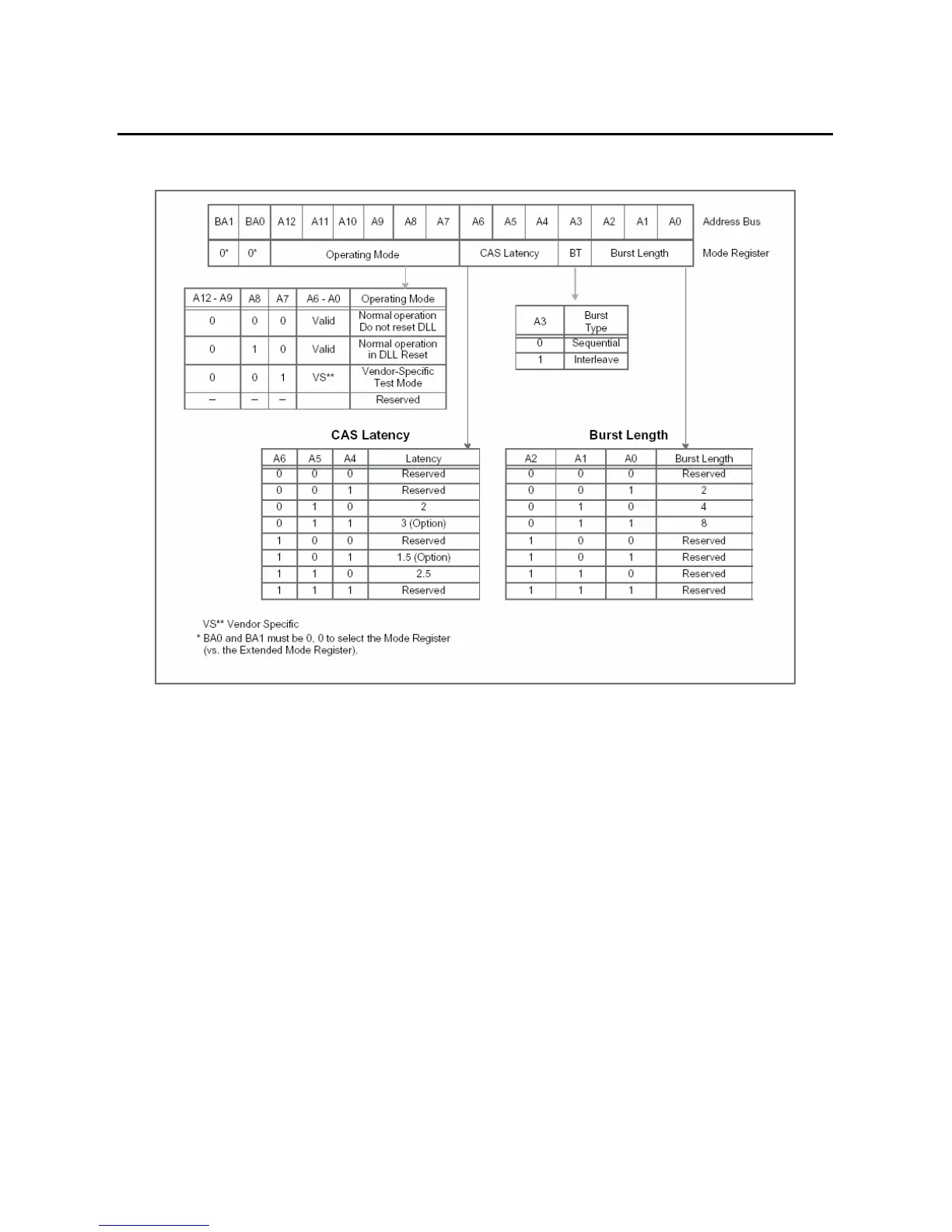

Mode Register Operation
Operating Mode
The normal operating mode is selected by issuing a Mode Register Set Command with bits A7-A12
to zero, and bits A0-A6 set to the desired values. A DLL reset is initiated by issuing a Mode Register
Set command with bits A7 and A9-A12 each set to zero, bit A8 set to one, and bits A0-A6 set to the
desired values. A Mode Register Set command issued to reset the DLL should always be followed
by a Mode Register Set command to select normal operating mode.
All other combinations of values for A7-A12 are reserved for future use and/or test modes. Test
modes and reserved states should not be used as unknown operation or incompatibility with future
versions may result.

Vizio VX32L Specifications

Display

native resolution	1366 x 768
brightness	500 cd/m2
contrast ratio	1200:1
response time	8 ms

Connectivity

HDMI inputs	2
component inputs	2
S-Video inputs	1
composite video inputs	2
RGB (PC) inputs	1

Weight and Dimensions

diagonal screen size	32 inches
width with stand	31.4 inches
height with stand	23.3 inches
depth with stand	8.6 inches
width without stand	31.4 inches
height without stand	22.1 inches
depth without stand	3.9 inches
weight with stand	32 lbs
weight without stand	31 lbs
