Vizio VX32L Service Manual

CONFIDENTIAL – DO NOT COPY Page 7-30
File No. SG-0204
Extended Mode Register
The Extended Mode Register controls functions beyond those controlled by the Mode Register;
these additional functions include DLL enable/disable, bit A0; output drive strength selection, bit A1;
and QFC output enable/disable, bit A2 (NTC optional). These functions are controlled via the bit
settings shown in the Extended Mode Register Definition. The Extended Mode Register is
programmed via the Mode Register Set command (with BA0 = 1 and BA1 = 0) and retains the stored
information until it is programmed again or the device loses power. The Extended Mode Register
must be loaded when all banks are idle, and the controller must wait the specified time before
initiating any subsequent operation. Violating either of these requirements result in unspecified
operation.

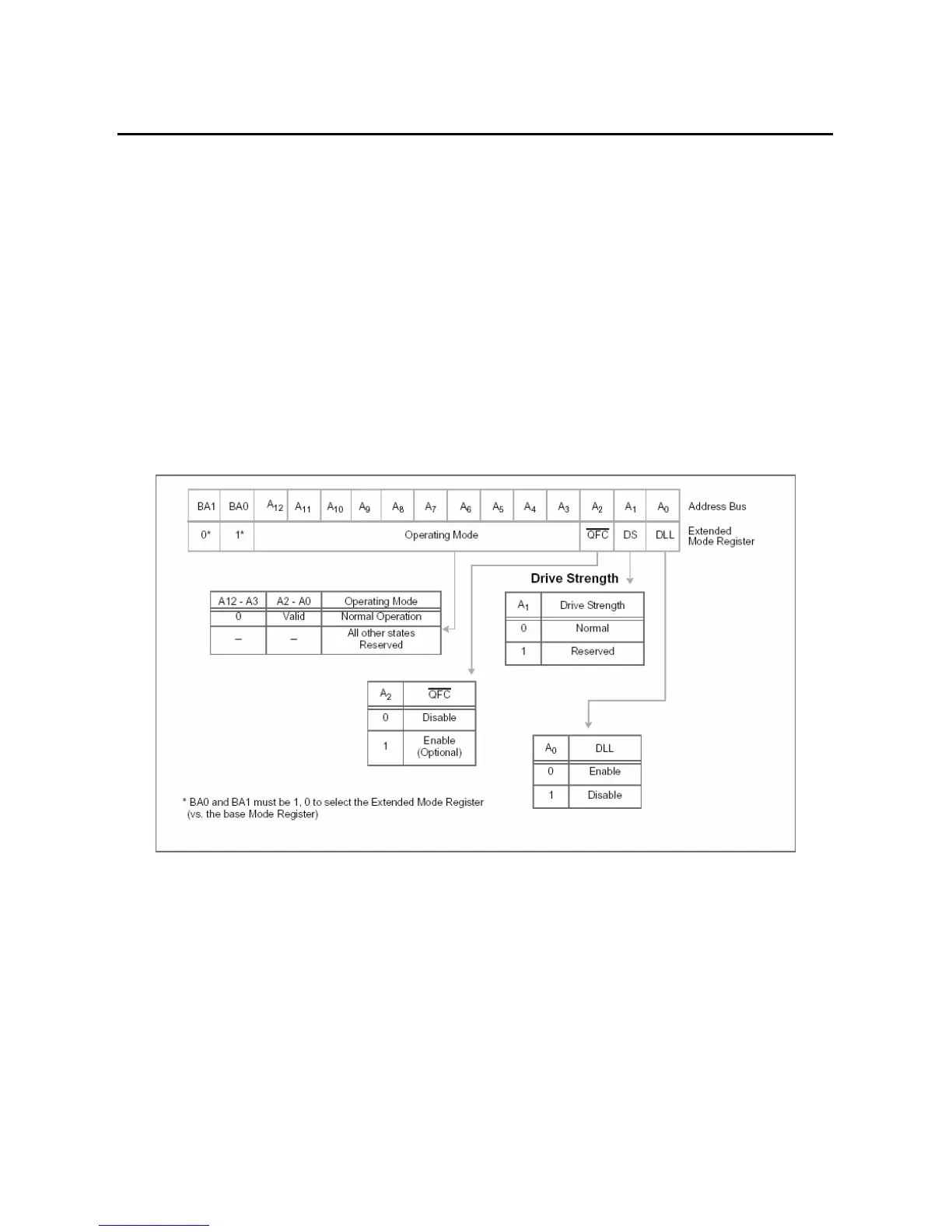

Extended Mode Register Definition

Vizio VX32L Specifications

Display

native resolution	1366 x 768
brightness	500 cd/m2
contrast ratio	1200:1
response time	8 ms

Connectivity

HDMI inputs	2
component inputs	2
S-Video inputs	1
composite video inputs	2
RGB (PC) inputs	1

Weight and Dimensions

diagonal screen size	32 inches
width with stand	31.4 inches
height with stand	23.3 inches
depth with stand	8.6 inches
width without stand	31.4 inches
height without stand	22.1 inches
depth without stand	3.9 inches
weight with stand	32 lbs
weight without stand	31 lbs
