Vizio VX32L Service Manual

CONFIDENTIAL – DO NOT COPY Page 7-24
File No. SG-0204
WRITE OPERATION STATUS
The device provides several bits to determine the status of a write operation: Q2, Q3, Q5, Q6, Q7,
and RY/BY.Table B and the following subsections describe the functions of these bits. Q7, RY/BY,
and Q6 each offer a method for determining whether a program or erase operation is complete or in
progress. These three bits are discussed first.

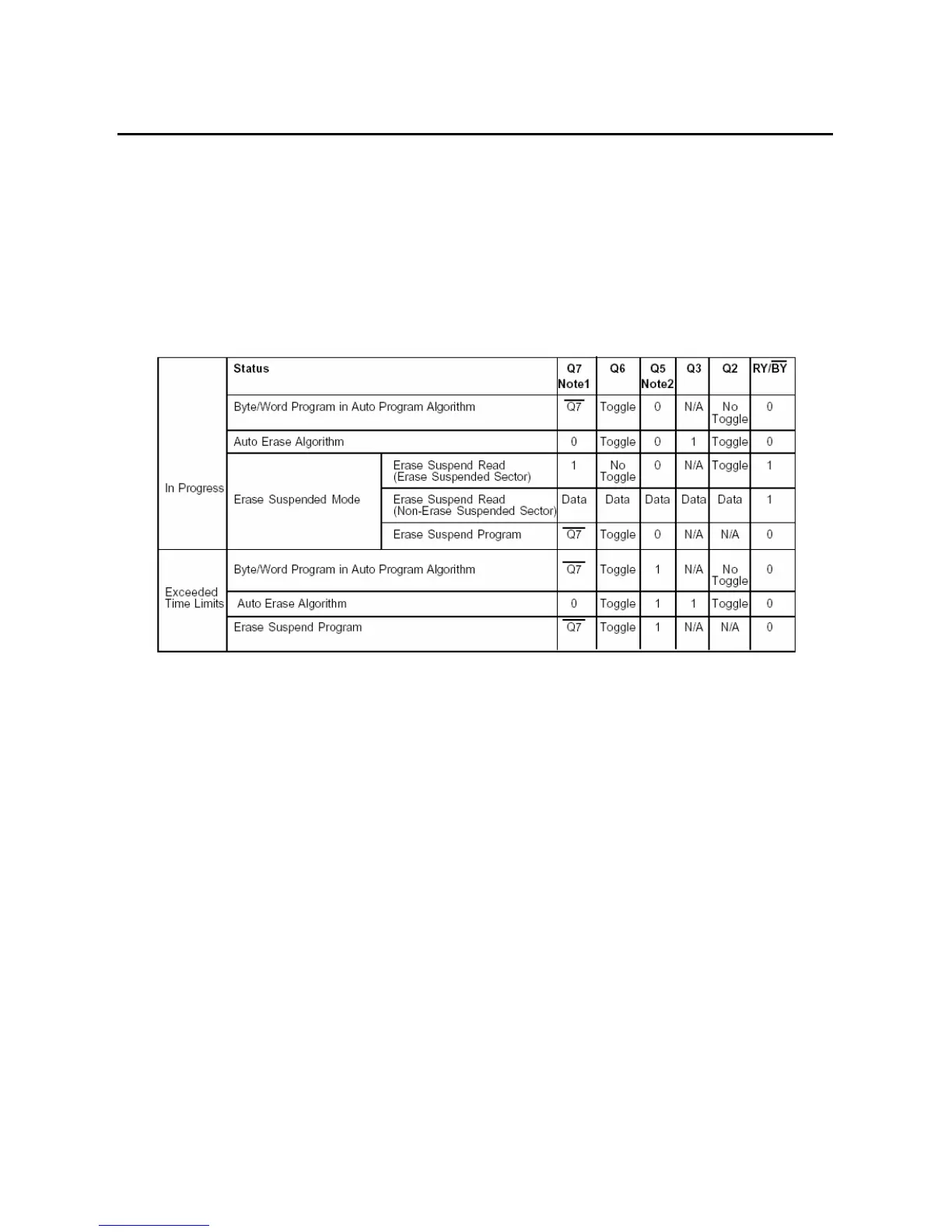

Table B. Write Operation Status
Notes:
1.Performing successive read operations from the erase-suspended sector will cause Q2 to toggle.
2.Performing successive read operations from any address will cause Q6 to toggle.
3.Reading the byte/word address being programmed while in the erase-suspend program mode will
indicate logic "1" at the Q2 bit.
However, successive reads from the erase-suspended sector will cause Q2 to toggle.

Vizio VX32L Specifications

Display

native resolution	1366 x 768
brightness	500 cd/m2
contrast ratio	1200:1
response time	8 ms

Connectivity

HDMI inputs	2
component inputs	2
S-Video inputs	1
composite video inputs	2
RGB (PC) inputs	1

Weight and Dimensions

diagonal screen size	32 inches
width with stand	31.4 inches
height with stand	23.3 inches
depth with stand	8.6 inches
width without stand	31.4 inches
height without stand	22.1 inches
depth without stand	3.9 inches
weight with stand	32 lbs
weight without stand	31 lbs
