Vizio VX32L - Output Power Measurement

CONFIDENTIAL – DO NOT COPY Page 7-12
File No. SG-0204
2. Output power measurement

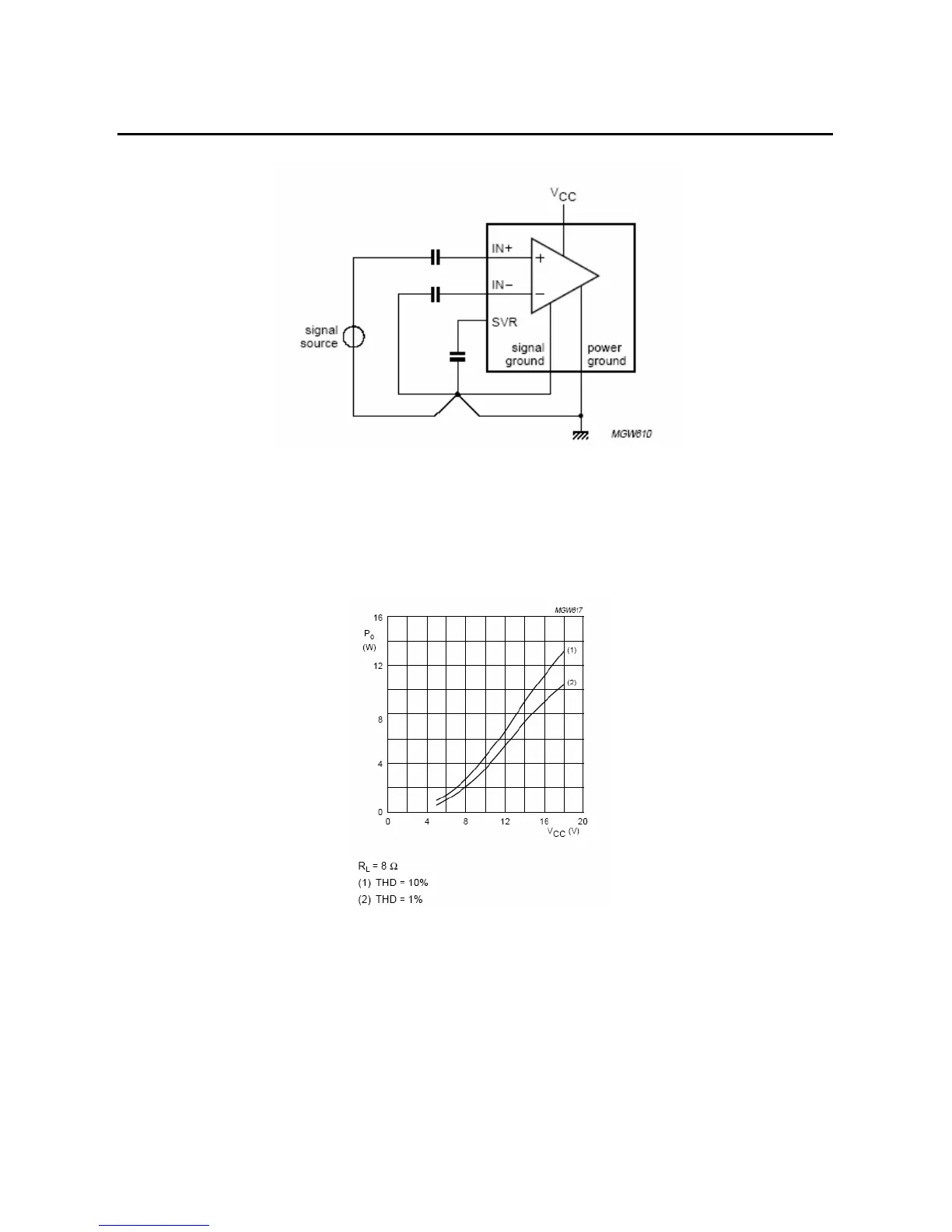

The output power as a function of the supply voltage is measured on the output pins at THD =
10%,in the VX32L LCD TV Vcc=12V so we can see as shown in the following figure output about
7W
.
