Vizio VX32L Service Manual

CONFIDENTIAL – DO NOT COPY Page 9-3
File No. SG-0204
N0
N0
N0
N0
Yes
Yes
Yes
Yes

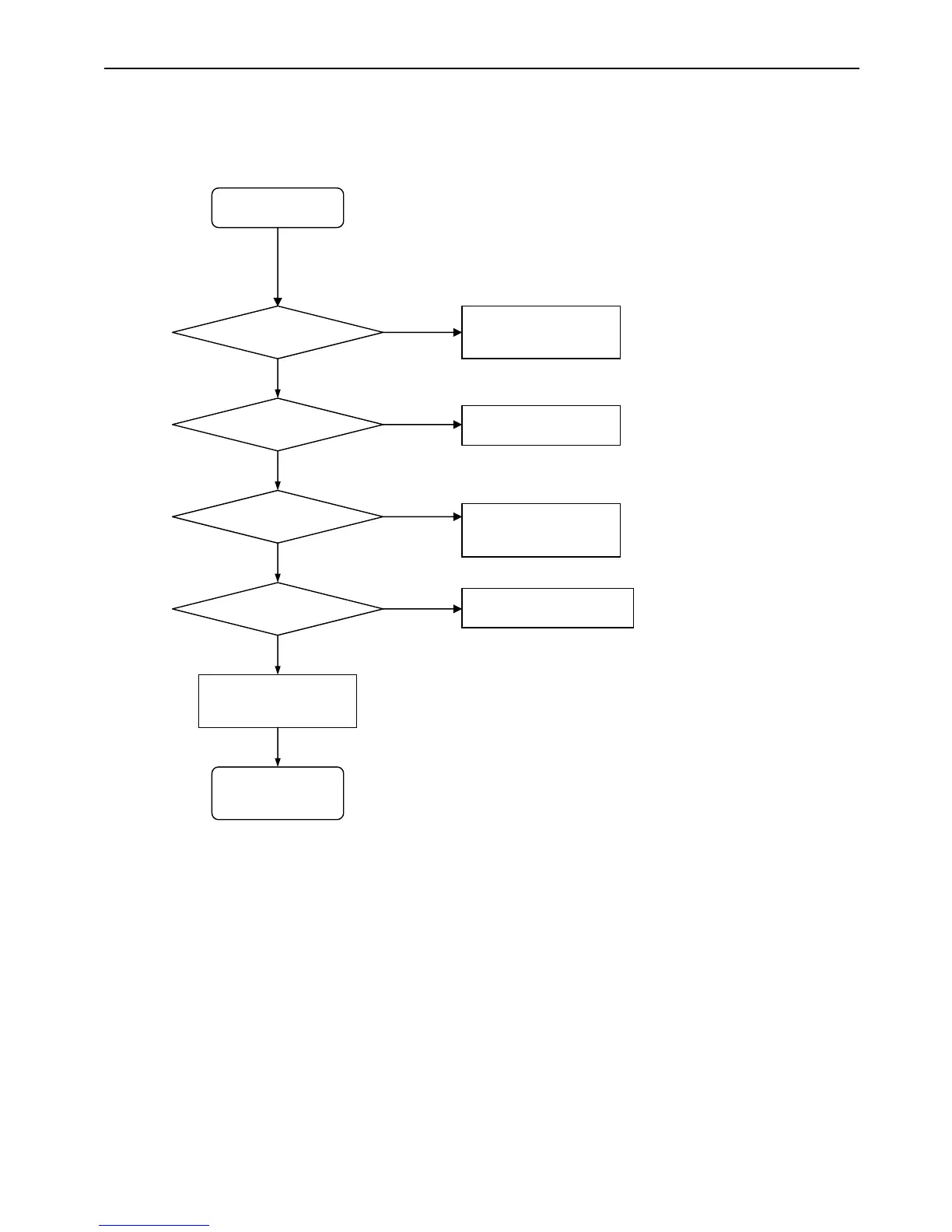

(COMPONENT)
IS NOT DISPLAY CORRECTLY
Start
Input signal good?
1.Check video
2.Check host’s setting
P1 input correct?
1.Check signal between P1
2.Check power 12V& 5v
U14 input correct?
1.Check signal between U14&P1
2.Check U14 Clock (27MHZ)
3. Check U14
DV33&DV12&AV15&AV12
LVDS output correct ?
1.Check U14
2. Check LVDS 5V or 12V
1.Is J7 connected good?
2.Is panel working ok?
END

Vizio VX32L Specifications

Display

native resolution	1366 x 768
brightness	500 cd/m2
contrast ratio	1200:1
response time	8 ms

Connectivity

HDMI inputs	2
component inputs	2
S-Video inputs	1
composite video inputs	2
RGB (PC) inputs	1

Weight and Dimensions

diagonal screen size	32 inches
width with stand	31.4 inches
height with stand	23.3 inches
depth with stand	8.6 inches
width without stand	31.4 inches
height without stand	22.1 inches
depth without stand	3.9 inches
weight with stand	32 lbs
weight without stand	31 lbs
