Vizio VX32L Service Manual

CONFIDENTIAL – DO NOT COPY Page 7-13
File No. SG-0204
3. Mode selection

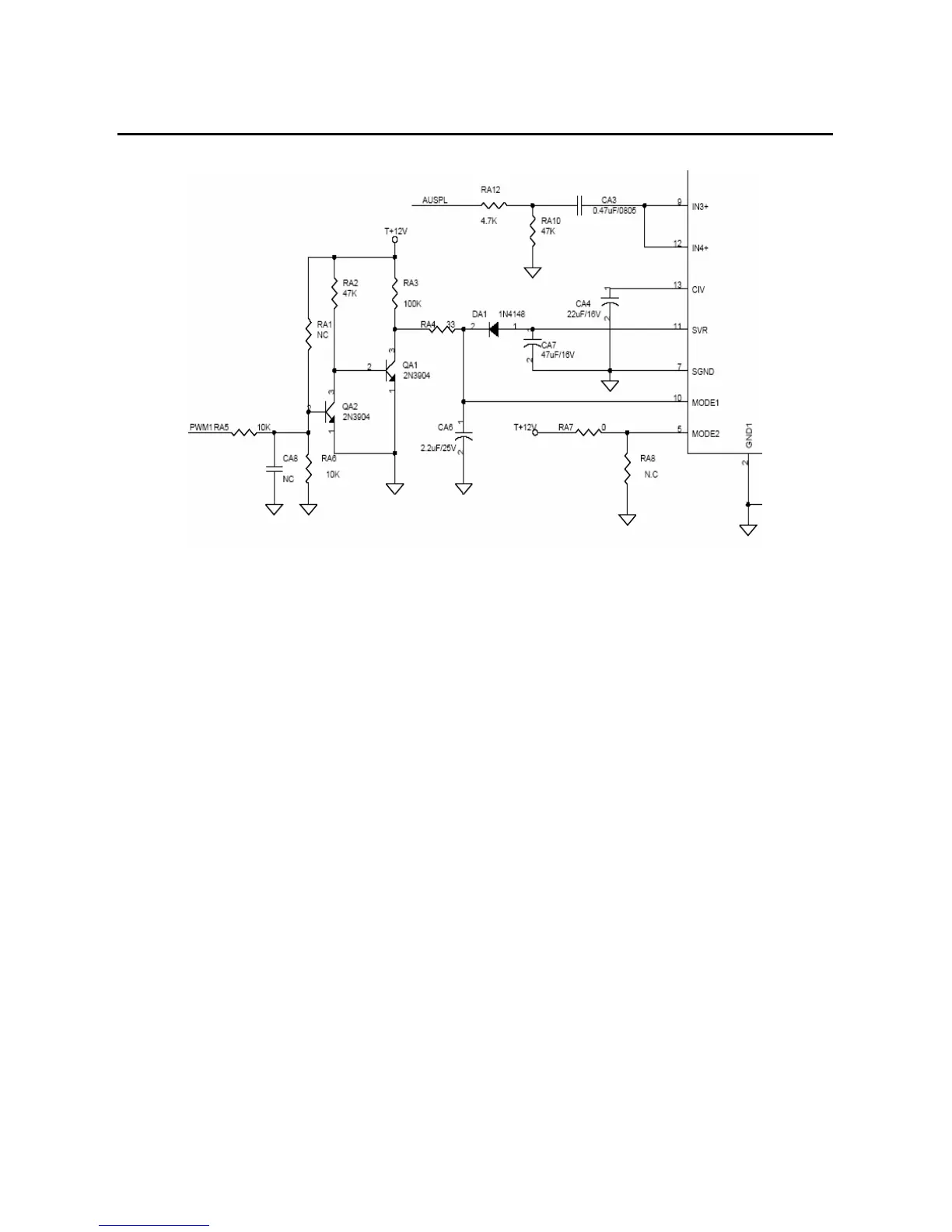

In the VX32L LCD TV TDA8946AJ has two functional modes, which can be selected by applying
the proper DC voltage to pin MODE.
1. Mute — In this mode the amplifier is DC-biased but not operational (no audio output).
This allows the input coupling capacitors to be charged to avoid pop-noise. The device is in mute
mode when 3.5 V < VMODE < (VCC 1.5 V).
2. Operating — In this mode the amplifier is operating normally. The operating mode is activated at
VMODE<1.0V.
General Feature List :
1 . Host CPU:
1. ARM 926EJ
2.16K I-Cache and 16K D-Cache
3. 8K Data TCM and 8K instruction
4. JTAG ICE interface
5. Watch Dog timers

Vizio VX32L Specifications

Display

native resolution	1366 x 768
brightness	500 cd/m2
contrast ratio	1200:1
response time	8 ms

Connectivity

HDMI inputs	2
component inputs	2
S-Video inputs	1
composite video inputs	2
RGB (PC) inputs	1

Weight and Dimensions

diagonal screen size	32 inches
width with stand	31.4 inches
height with stand	23.3 inches
depth with stand	8.6 inches
width without stand	31.4 inches
height without stand	22.1 inches
depth without stand	3.9 inches
weight with stand	32 lbs
weight without stand	31 lbs
