VMI CUBE - DESCRIPTION

56
DESCRIPTION

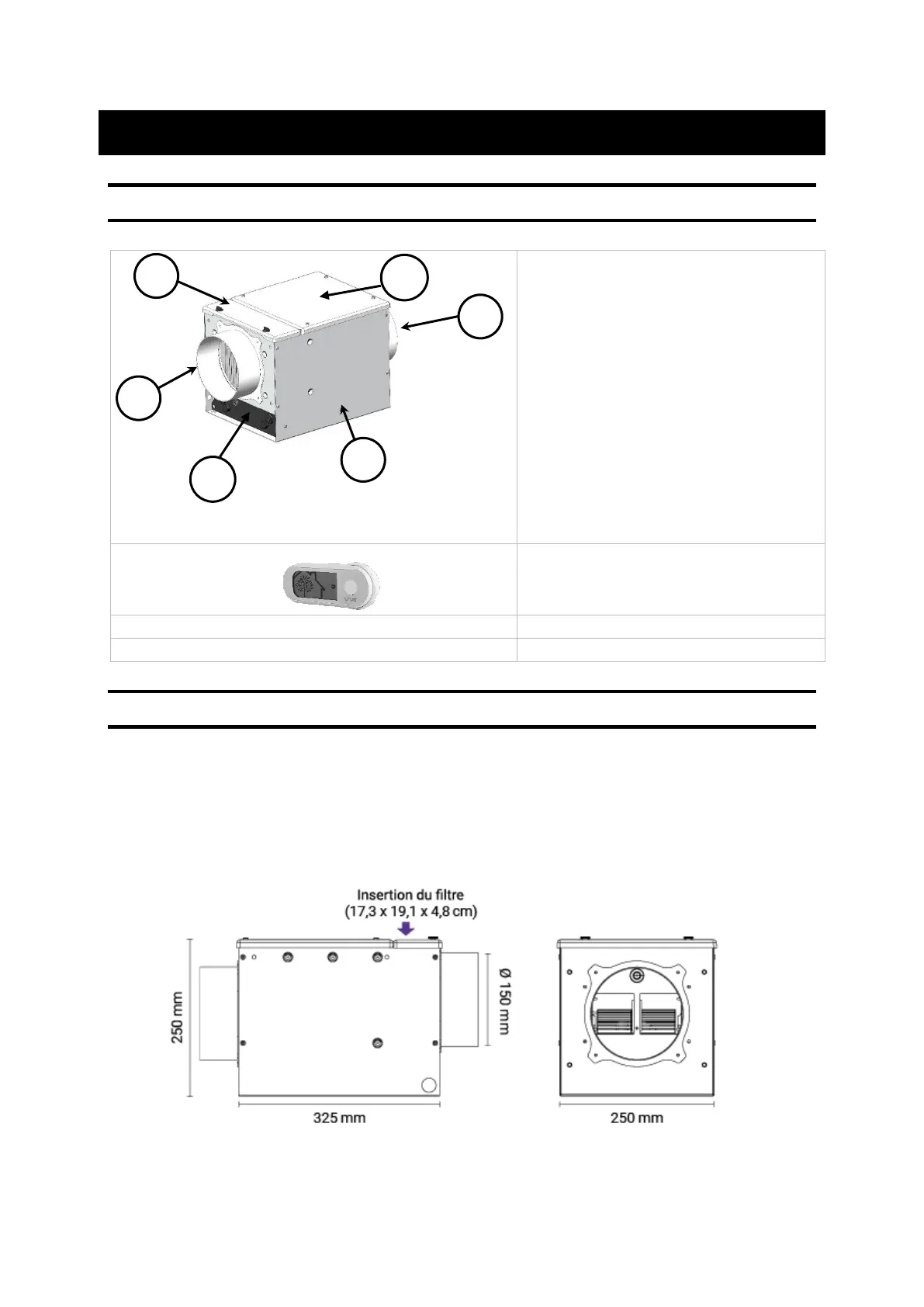

A. Overview
1 ventilation module
1 – Housing
2 – Maintenance cover
3 – Filter hatch
4 – Air inlet (from the roof or façade) -
suction
5 – Air outlet (to premises) – positive
ventilation
6 – Electronic plug-in unit (printed
circuit board)
*Non-contractual drawing.
1 control unit
OPTIONS
1 or more humidity sensors
OPTIONS
1 or more air quality sensors
B. Dimensions
1. CUBE model
Weight: 8.1 kg
Dimensions in millimetres
5
1
3
4
2
6
