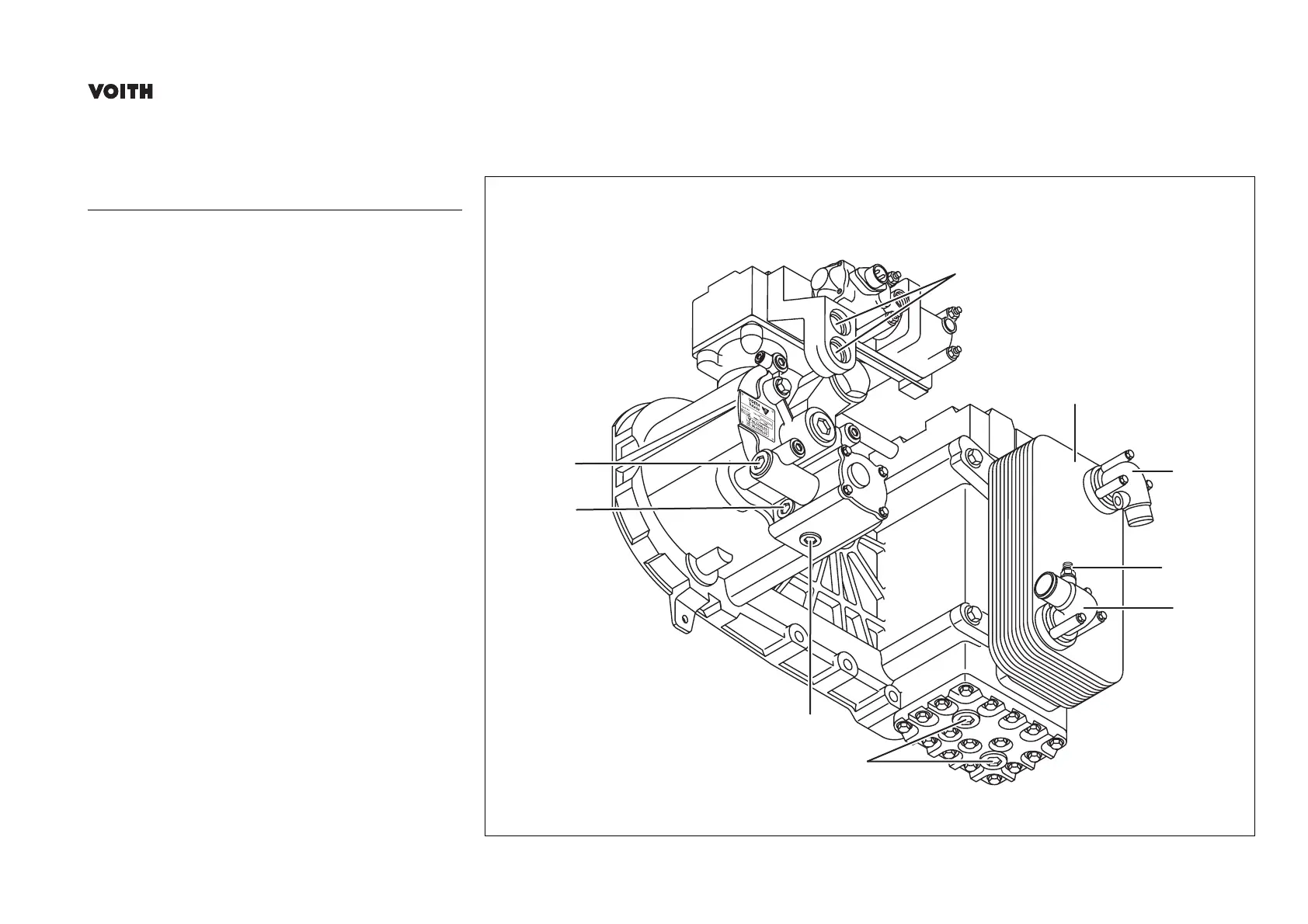

Overview of the ModulesVoith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Design and Function
Voith Turbo I 153.00009710 I arrtd I 2005-11 © 2005
Item No. Designation
103 Screw plug M12x1.5
107 Screw plug M24x1.5 (oil drain plug)
3500 Screw plug M30x1.5
4200 Screw plug M24x1.5 (oil drain plug)
5200/2 Coolant temperature sensor M14x1.5
5500/1 Ventilation
6400 Heat exchanger
20000 Water neck
103
107
4200
20000
6400
3500
5500/1
20000
5200/2
28004
