Voith VR 115 E - Pressure Control Valve

Page 76
Pressure Control ValveVoith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Repair
Voith Turbo I 153.00009710 I arrtd I 2005-11 © 2005

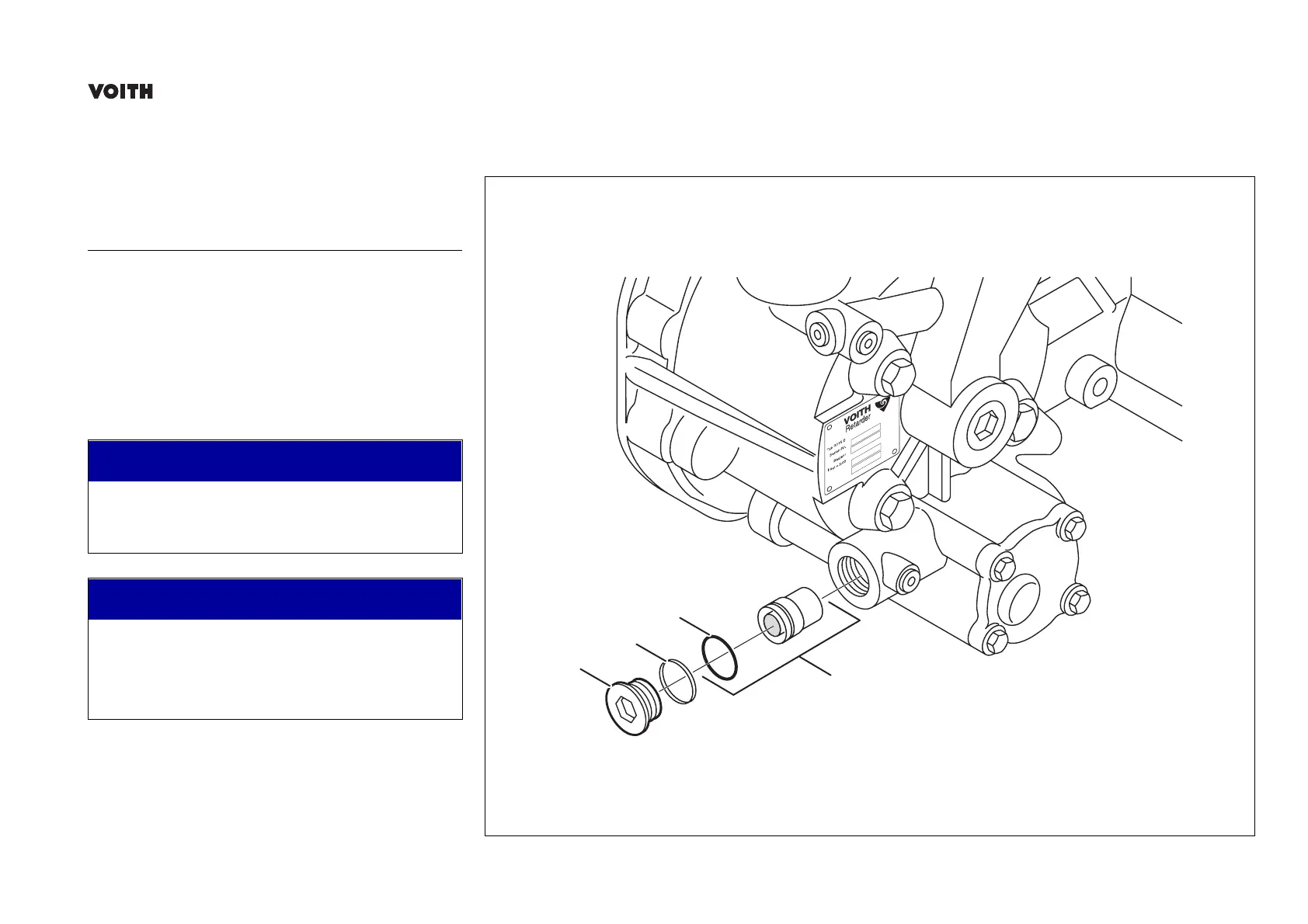

7.8 Pressure Control Valve
Item No. Designation
2200 Complete pressure control valve
2206 O-ring 21.5x2.5, replace
3500 Screw plug M30x1.5,
hexagon socket head, w.a.f. 17,
with copper sealing ring: 130 Nm
with integrated sealing ring: 100 Nm
3550 Sealing ring A30x36, replace
Ö Lubricate sealing rings, O-rings and shaft
sealing rings with silicone-free, non-corrosive
grease before installation.
Ö Observe the reduced tightening torque with the
integrated sealing ring.
The copper sealing ring variant is described in the
instructions.
K
d
.-S
ach-N
r.
V
o
ith
-S
ach-N
r.
3550
3500
2206
2200
28075
NOTE
NOTE
