Voith VR 115 E - Heat Exchanger

Page 71
Heat ExchangerVoith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Repair
Voith Turbo I 153.00009710 I arrtd I 2005-11 © 2005

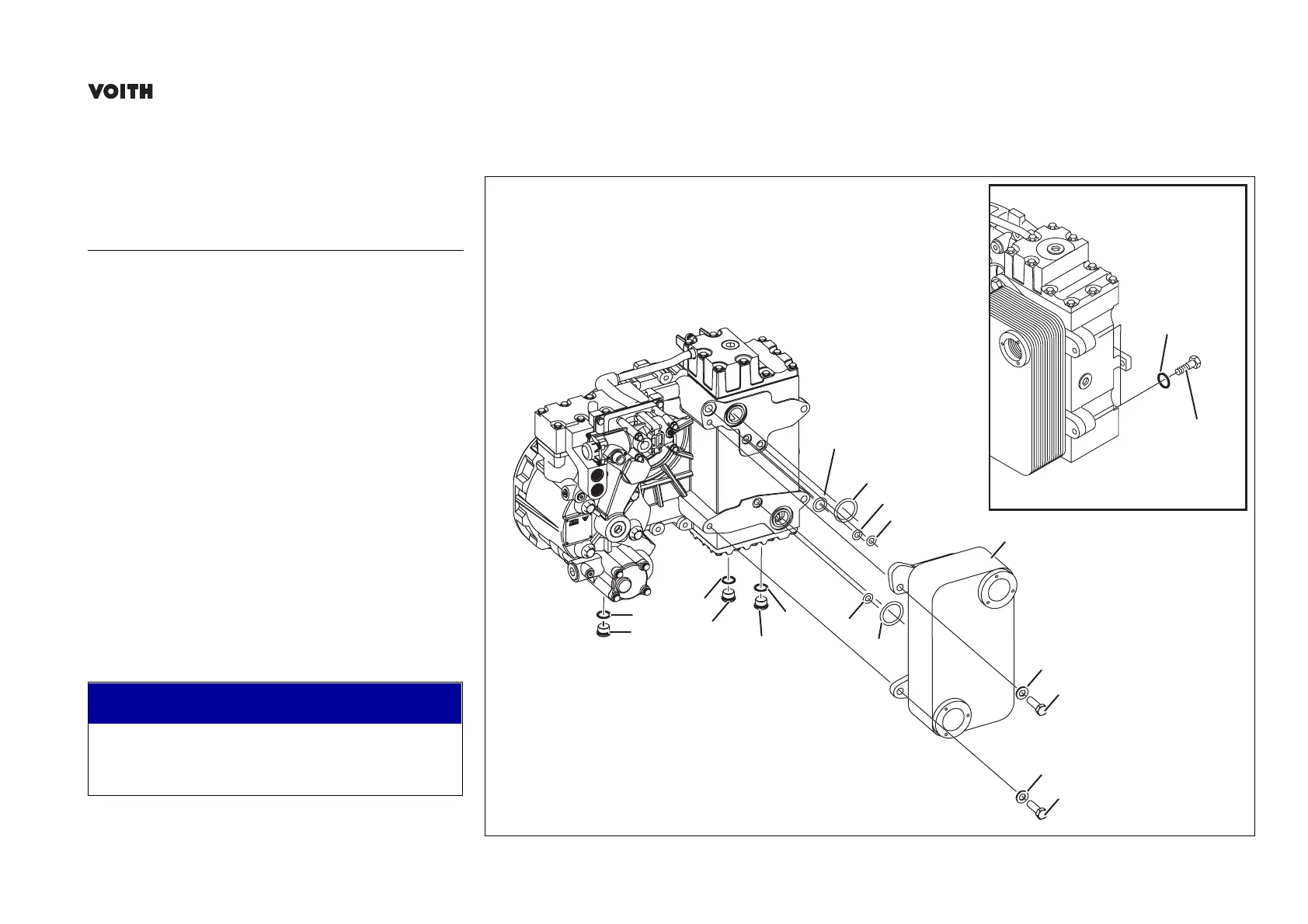

7.7 Heat Exchanger
Item No. Designation
107 Screw plug M24x1.5,
hexagon socket head, w.a.f. 12,
with copper sealing ring: 80 Nm
with integrated sealing ring: 47 Nm
108 Sealing ring A24x29, replace
4200 Screw plug M24x1.5,
hexagon socket head, w.a.f. 12
with copper sealing ring: 80 Nm
with integrated sealing ring: 47 Nm
4250 Sealing ring A24x29, replace
6400 Heat exchanger
6600 Hex head screw M14x45,
hexagon insert bit, w.a.f. 22, 150 Nm
6700 Washer A14
7300 O-ring 15x4, replace
7500 O-ring 45x5, replace
7600 O-ring 25x4, replace
Ö Lubricate sealing rings, O-rings and shaft
sealing rings with silicone-free, non-corrosive
grease before installation.
107
108
4200
4250
4200
4250
7500
7300
7300
7300
7500
7600
6400
6600
6700
6600
6700
6600
6700
28064
NOTE
