Pump Pressure (p
dyn
)Voith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Diagnosis and Troubleshooting
Voith Turbo I 153.00009710 I arrtd I 2005-11
© 2005
5.3 Pump Pressure (p
dyn
)

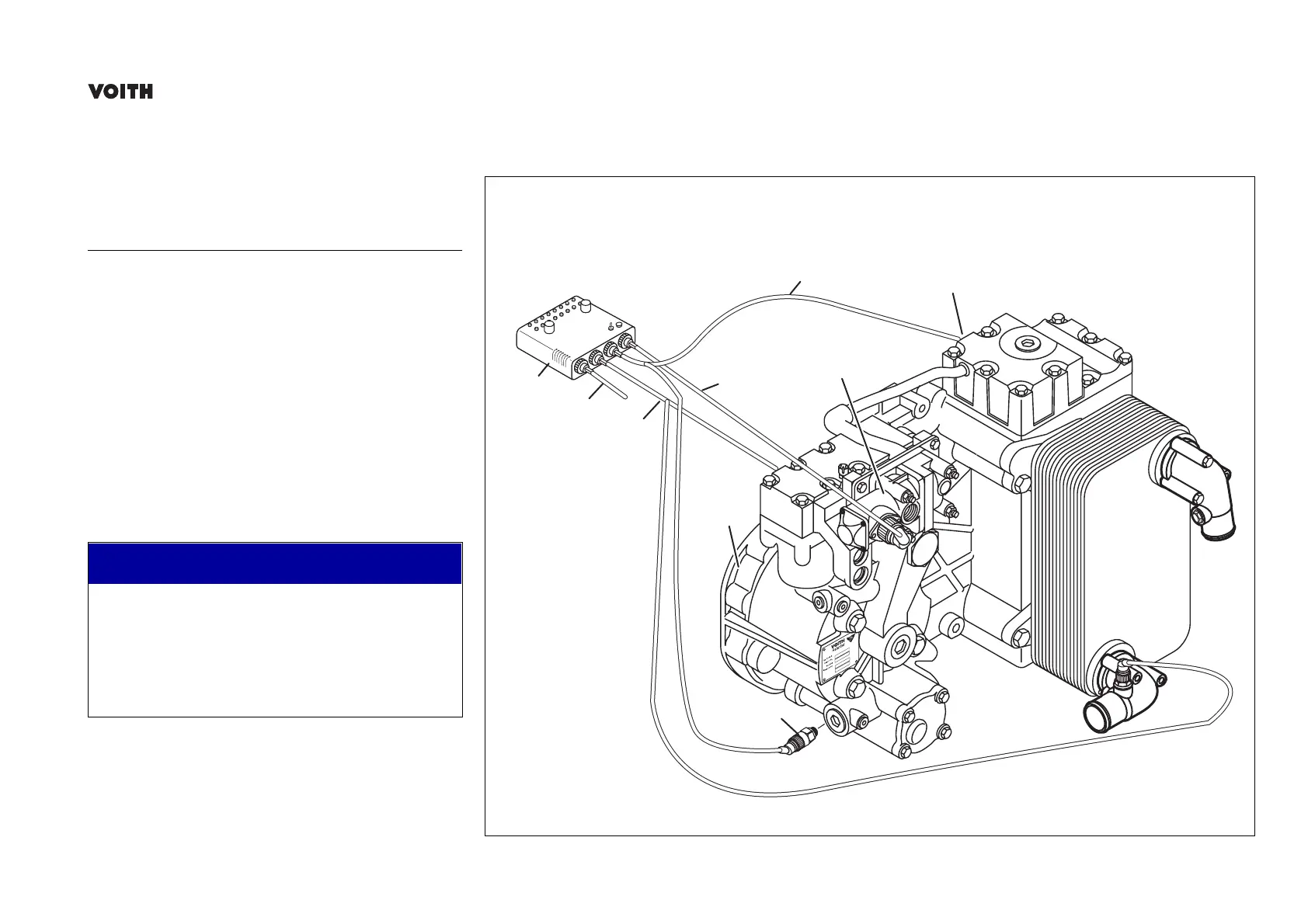

Item No. Designation
100 Retarder housing
3700 Proportional valve
9000 Pressure sensor
50/36 Pressure sensor: 0–30 bar
99/30 Retarder tester
99/31 Cable 1 (to the proportional valve)
99/32 Cable 2 (to the pressure sensors)
99/33 Cable 3 (to temperature sensors)
99/34 Cable 4 (to the vehicle voltage supply/
PC interface)
Checking the pump pressure p
dyn
provides
information on
- the mechanical status of the rotor parts
- internal leaks
- proper functioning of the retarder
K
d
.-
S
a
ch
-
N
r.
V
o
ith
-
S
ac
h
-
Nr.
99/32
99/34
99/30
99/31
99/33
9000
3700
50/36
100
28025
NOTE
