Voith VR 115 E - Oil Change

Page 22
Oil ChangeVoith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Maintenance and Service
Voith Turbo I 153.00009710 I arrtd I 2005-11 © 2005

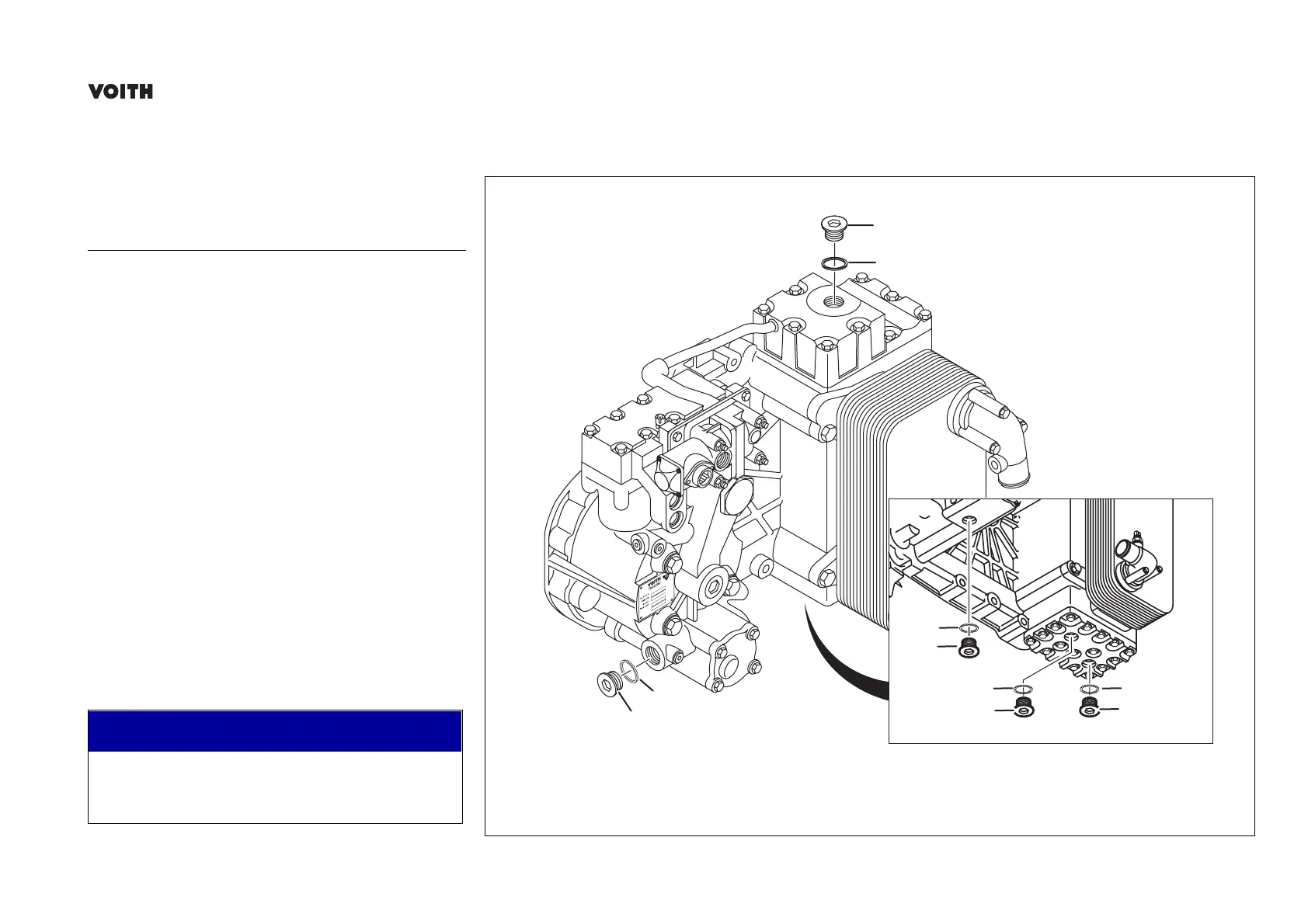

4.2 Oil Change
Item No. Designation
107 Screw plug M24x1.5,
hexagon socket head, w.a.f. 12,
with copper sealing ring: 80 Nm
with integrated sealing ring: 47 Nm
108 Sealing ring A24x29, replace
3500 Screw plug M30x1.5,
hexagon socket head, w.a.f. 17,
with copper sealing ring: 130 Nm
with integrated sealing ring: 100 Nm
3550 Sealing ring A30x36, replace
4100 Screw plug M30x1.5,
hexagon socket head, w.a.f. 17,
with copper sealing ring: 130 Nm
with integrated sealing ring: 100 Nm
4150 Sealing ring A30x36, replace
4200 Screw plug M24x1,5,
hexagon socket head, w.a.f. 12,
with copper sealing ring: 80 Nm
with integrated sealing ring: 47 Nm
4250 Sealing ring A24x29, replace
Ö Lubricate sealing rings, O-rings and shaft
sealing rings with silicone-free, non-corrosive
grease before installation.
K
d
.
-
S
a
c
h
-
N
r
.
V
o
it
h
-S
a
c
h
-
N
r
.
4200
4250
4250
4200
107
108
3500
3550
4100
4150
28009
NOTE
