Bottom Oil Tank CoverVoith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Repair
Voith Turbo I 153.00009710 I arrtd I 2005-11
© 2005

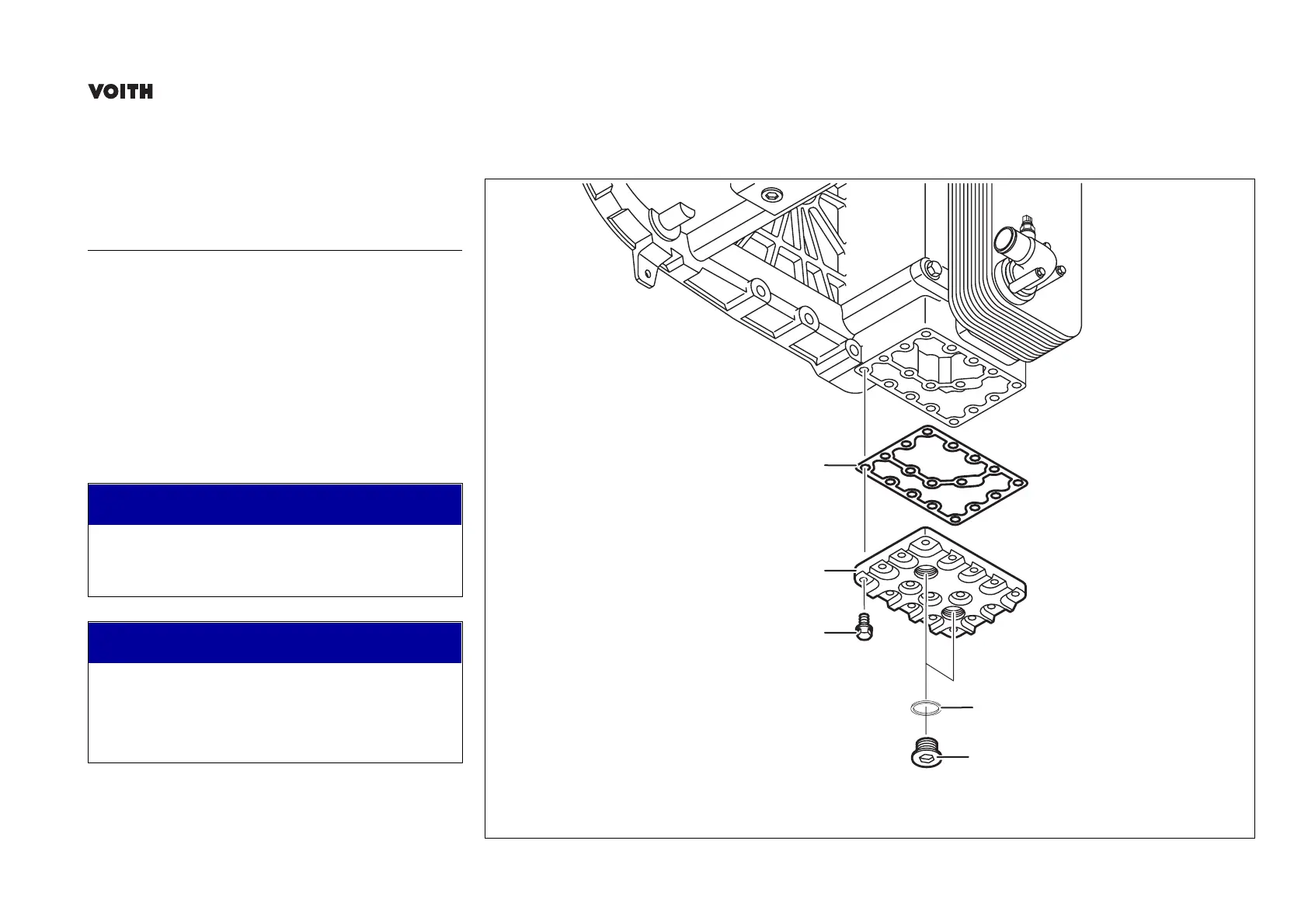

7.3 Bottom Oil Tank Cover
Item No. Designation
2500 Bottom oil tank cover
2600 Cover gasket bottom, replace
3100 Combined hex head screw M8x30,
hexagon insert bit, w.a.f. 13, 30 Nm
4200 Screw plug M24x1.5,
hexagon socket head, w.a.f. 12,
with copper sealing ring: 80 Nm
with integrated sealing ring: 47 Nm
4250 Sealing ring A24x29, replace
Ö Lubricate sealing rings, O-rings and shaft
sealing rings with silicone-free, non-corrosive
grease before installation.
Ö Observe the reduced tightening torque with the
integrated sealing ring.
The copper sealing ring variant is described in the
instructions.
4200
4250
3100
2500
2600
28073
NOTE
NOTE
