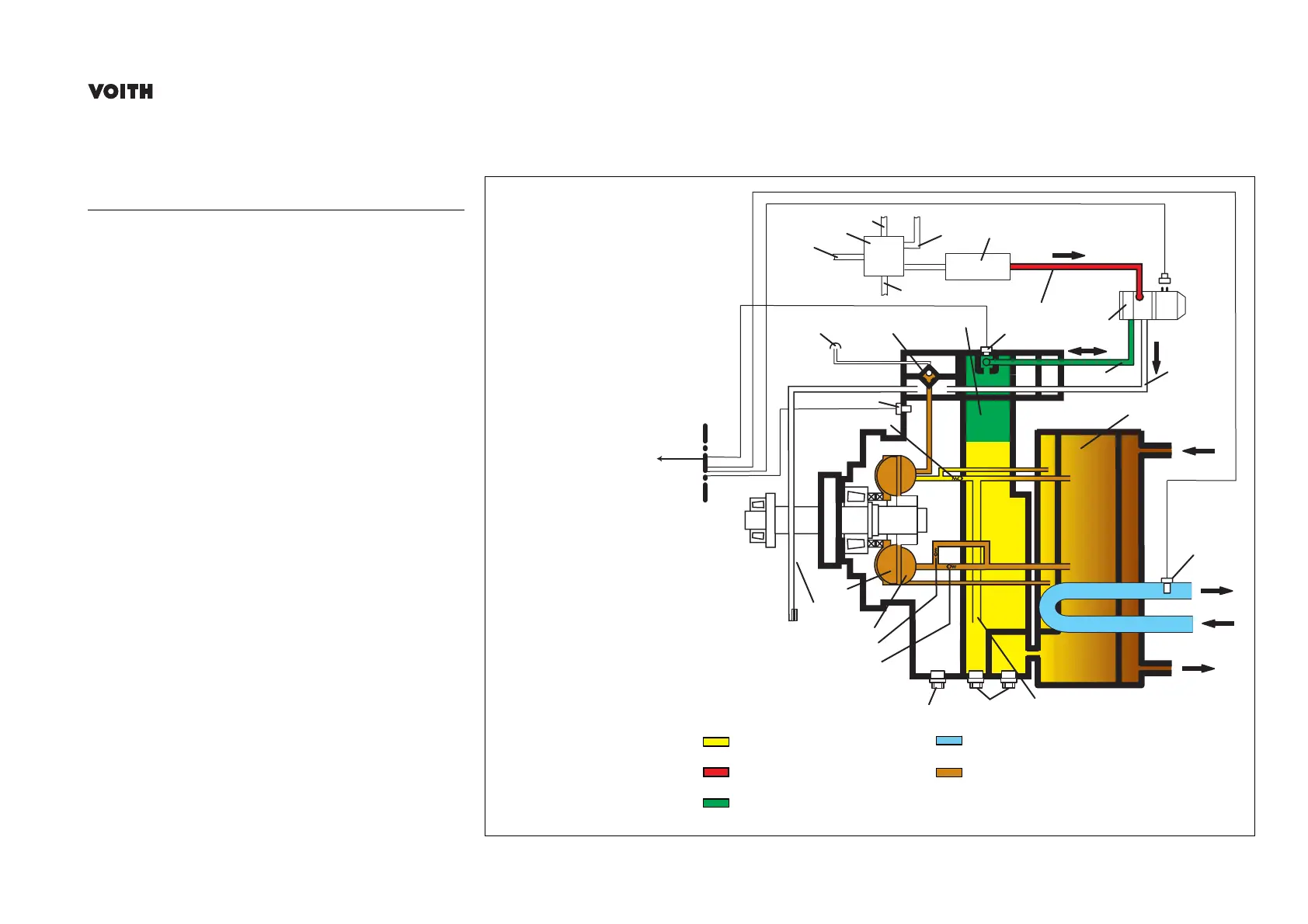

Function and Control SchemeVoith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Design and Function
Voith Turbo I 153.00009710 I arrtd I 2005-11 © 2005
Item No. Designation
2300 Casing ventilation
2810 Ventilation filter
3700 Proportional valve
4200 Oil drain plug
5200/1 Oil temperature sensor
5200/2 Coolant temperature sensor
5500 Ventilation
6400 Heat exchanger
9000 Pressure sensor
A
R
P
H
G
2300
I
6400
5200/2
1900
5200/1
300
5500
200
2200
4200
107
2100
2810
3700
J
K
9000
A
B
C
D
E
F
28005
Vehicle
electronics
Oil sump
Supply-air pressure p
v
Constant-air pressure p
y
Coolant
Pump pressure p
dyn
