Heat ExchangerVoith Turbo I Aftersales Service Manual Voith Retarder VR 115 E I Repair
Voith Turbo I 153.00009710 I arrtd I 2005-11 © 2005
Checking

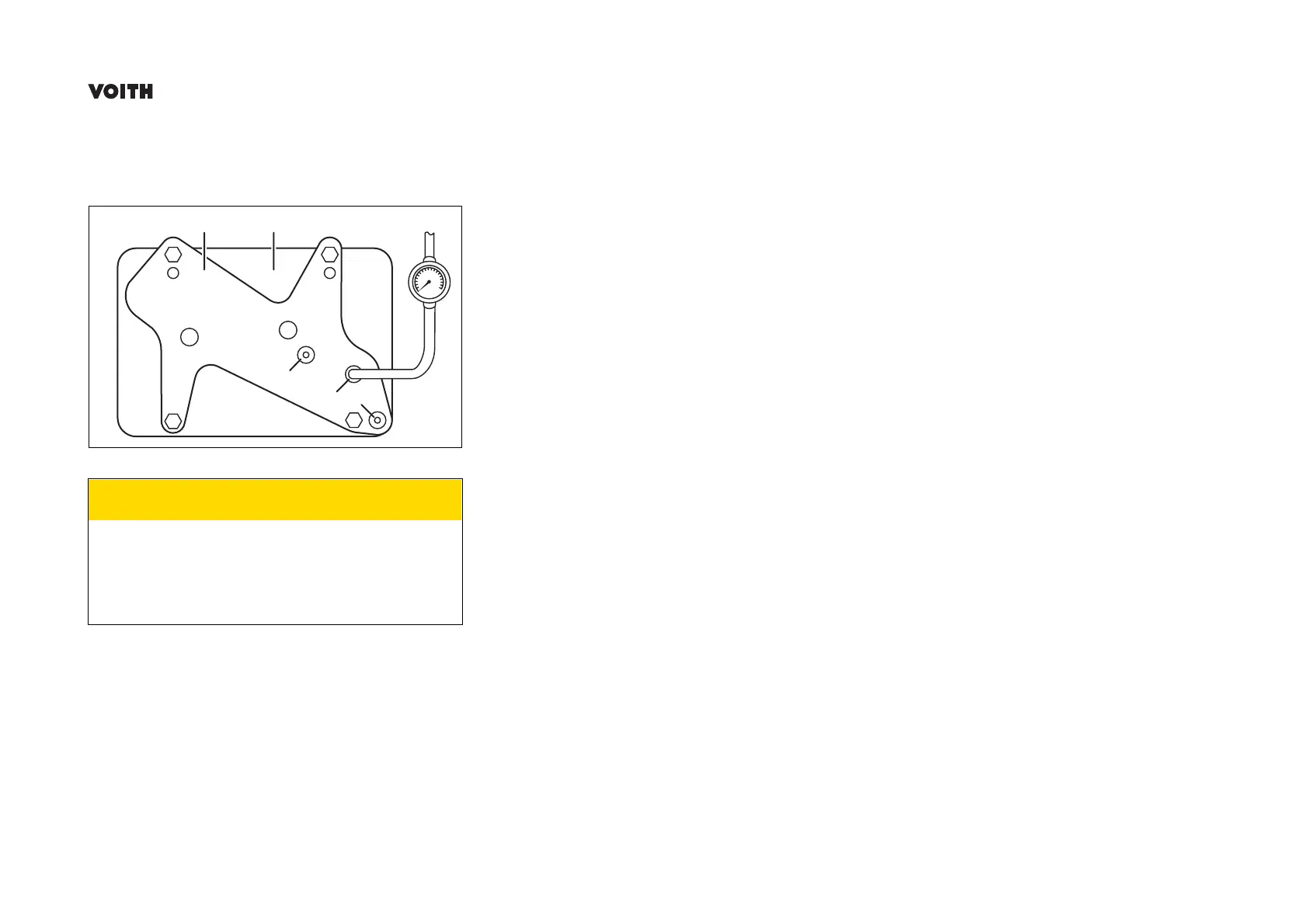

1. Attach pressure test equipment (50/22) to heat
exchanger (6400) with O-rings and attach the
compressed-air line to the connection.
2. Fill cooling water section of heat exchanger (6400)
with hot water (approx. 70 °C).
3. Slowly pressurize heat exchanger (6400) with
compressed air from 0 to max. 10 bar.
4. Repeat Steps 1 through 3 at connections "B" and
"C".
Heat exchanger leaky!
Retarder fault.
Ö If air bubbles appear in the water or an external
leak is detected, replace the heat exchanger.
50/22
C
6400
AB
28068
CAUTION
