9.1.4 Automatic operation

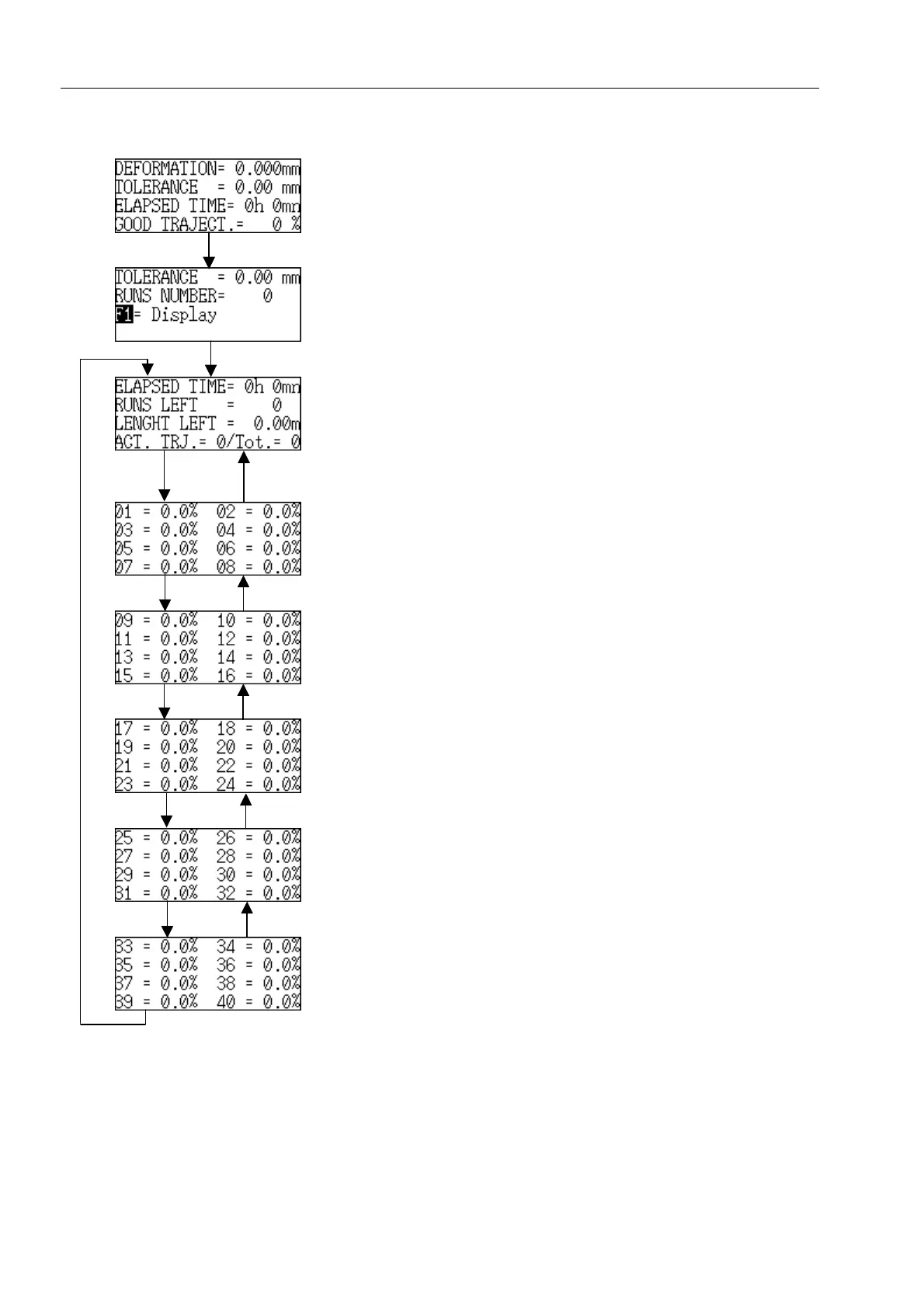

Display of cycle datas 1/3
Deformation : Dynamic display of the deformation measured
Tolerance : Levelling tolerance display
Elapsed time : Elapsed time since the beginning of cycle
Good traject. : Percentage of levelled paths
Display of cycle datas 2/3
Tolerance : Levelling tolerance display
Runs number : Display number of cycles
Display of cycle datas 3/3
Elapsed time : Elapsed time since the beginning of cycle
Runs left : Number of cycles left
Length left : Blade length left to level
Act. trj. : Number of the present paths processed
Tot. : Total number of paths to process
Display of results 1/5
Percentage of deformation left to process per path
Display of results 2/5
Percentage of deformation left to process per path
Display of results 3/5
Percentage of deformation left to process per path
Display of results 4/5
Percentage of deformation left to process per path
Display of results 5/5
Percentage of deformation left to process per path
