9 PROGRAM DESCRIPTION
9.1 Operating cycle

Note

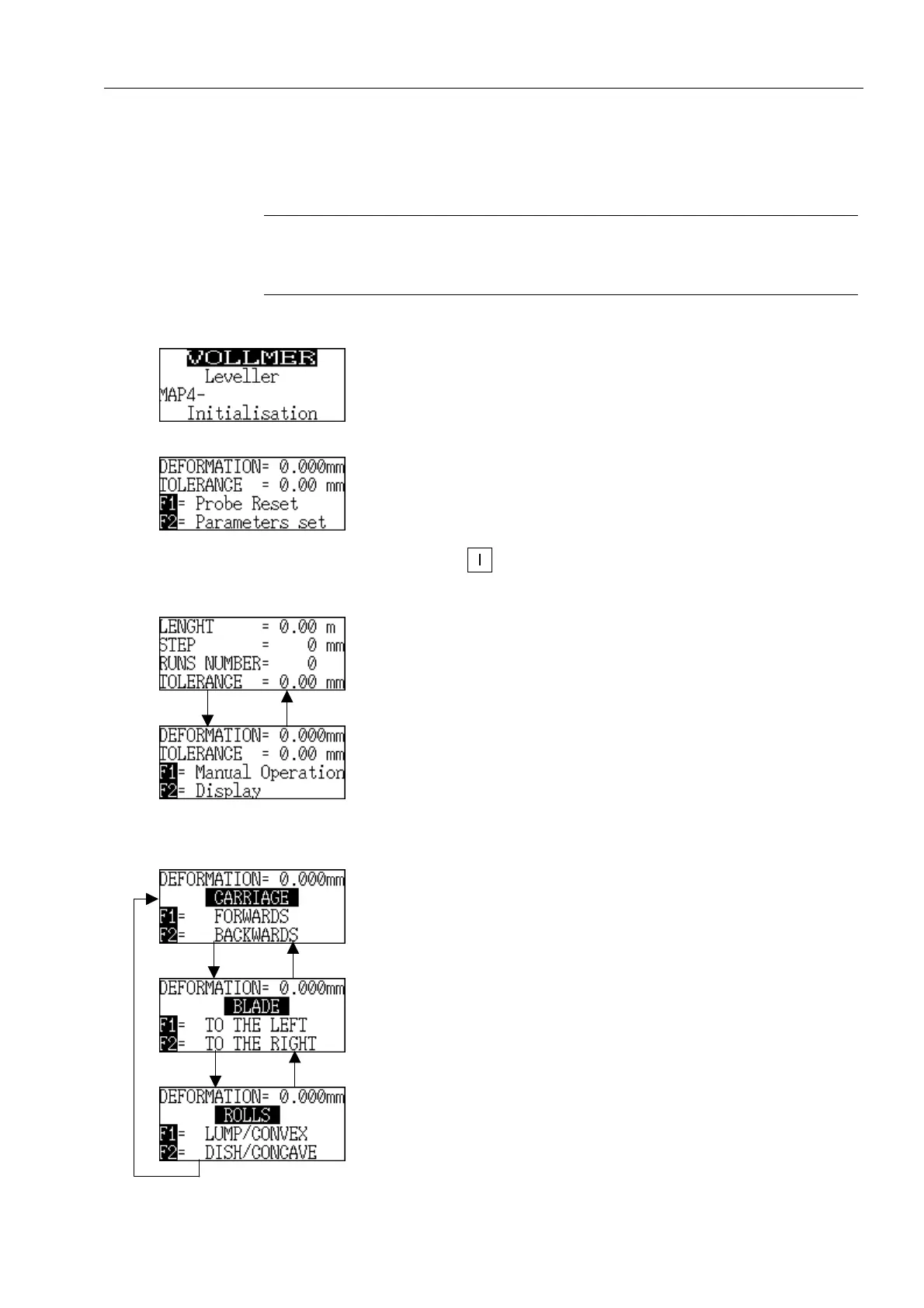

The function keys F3 (Page up) and F4 (Page down) can be used to move from
page to page.
9.1.1 Starting
Initialisation
Starting
Deformation : Deformation measured
Tolerance : Tolerance of levelling
F1 : Reference of levelling
F2 : Parameters set
F1 + : Automatic operation
9.1.2 Parameters
Parameters set 1/2
Length : Blade length
Step : Distance between paths
Runs number. : Number of cycles
Tolerance : Tolerance of levelling
Parameters set 2/2
Deformation : Deformation measured
Tolerance : Tolerance of levelling
F1 : Manual operation
F2 : Display cycle datas 3/3
F3
F4
9.1.3 Manual operation
Manual shifting of levelling unit
Deformation : Deformation measured
F1 : Forwards
F2 : Backwards
Manual shifting of band saw blade
Deformation : Deformation measured
F1 : Feed to the left (Only on MAP400)
F2 : Feed to the right
Rollers
Deformation : Deformation measured
F1 : Activation of rollers processing the lumps
F2 : Activation of rollers processing the hollows
F3
F3
F3
F4
F4
