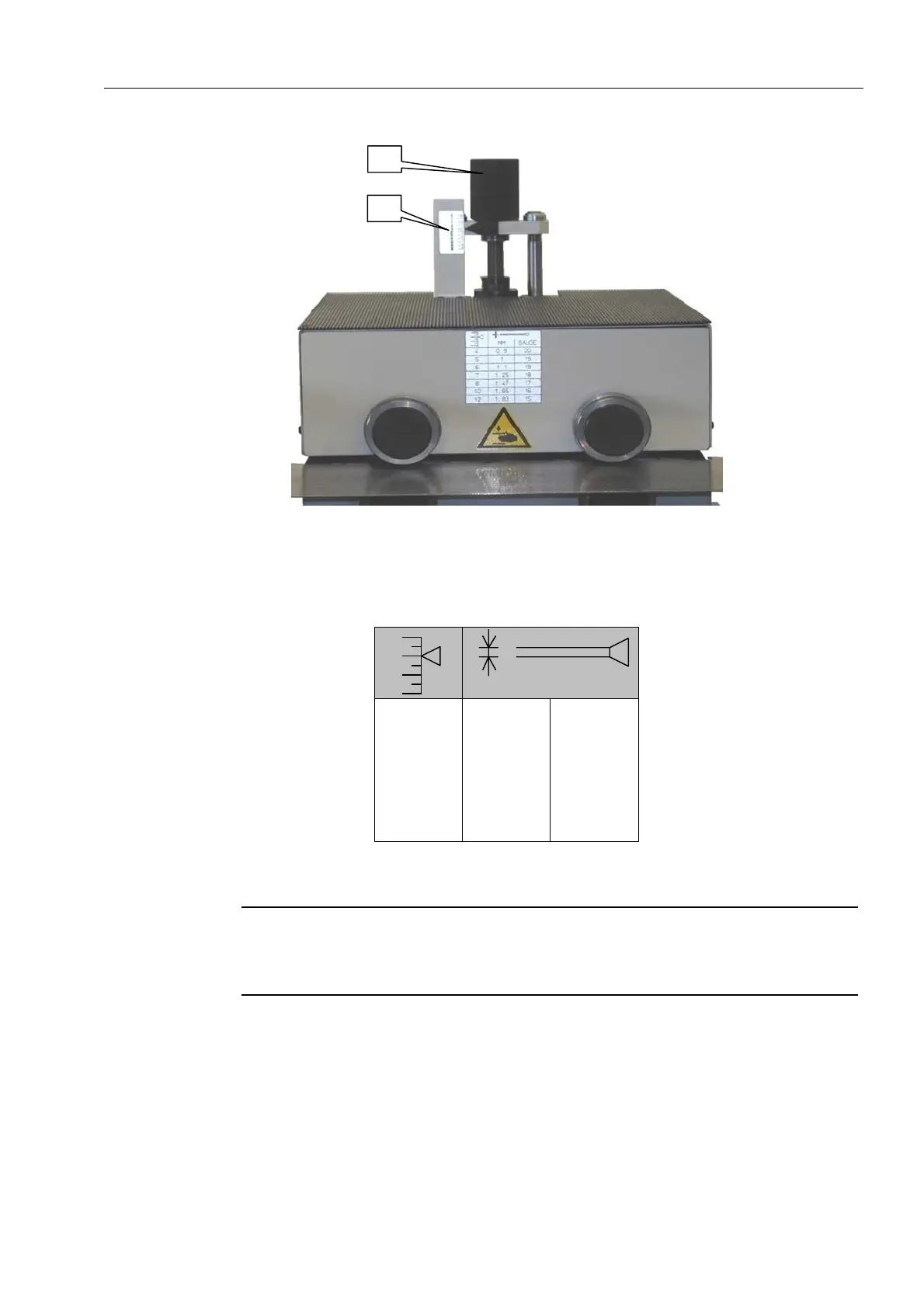

10.3 Blade thickness adjustment
1
2
a) Pressurise the rollers.
b) Touch the blade lightly with the rollers by adjusting the screw 1.
c) Adjust the thickness with the help of the stop screw 1 along graduated scale 2.
mm GAUGE
4
5
6
7
8
10
12
0,9
1,0
1,1
1,25
1,47
1,65
1,83
20
19
19
18
17
16
15
d) Deactivate the rollers.

Note
The values indicated above are given as an indication and can vary depending on
the steel quality and saw blade shapes.
