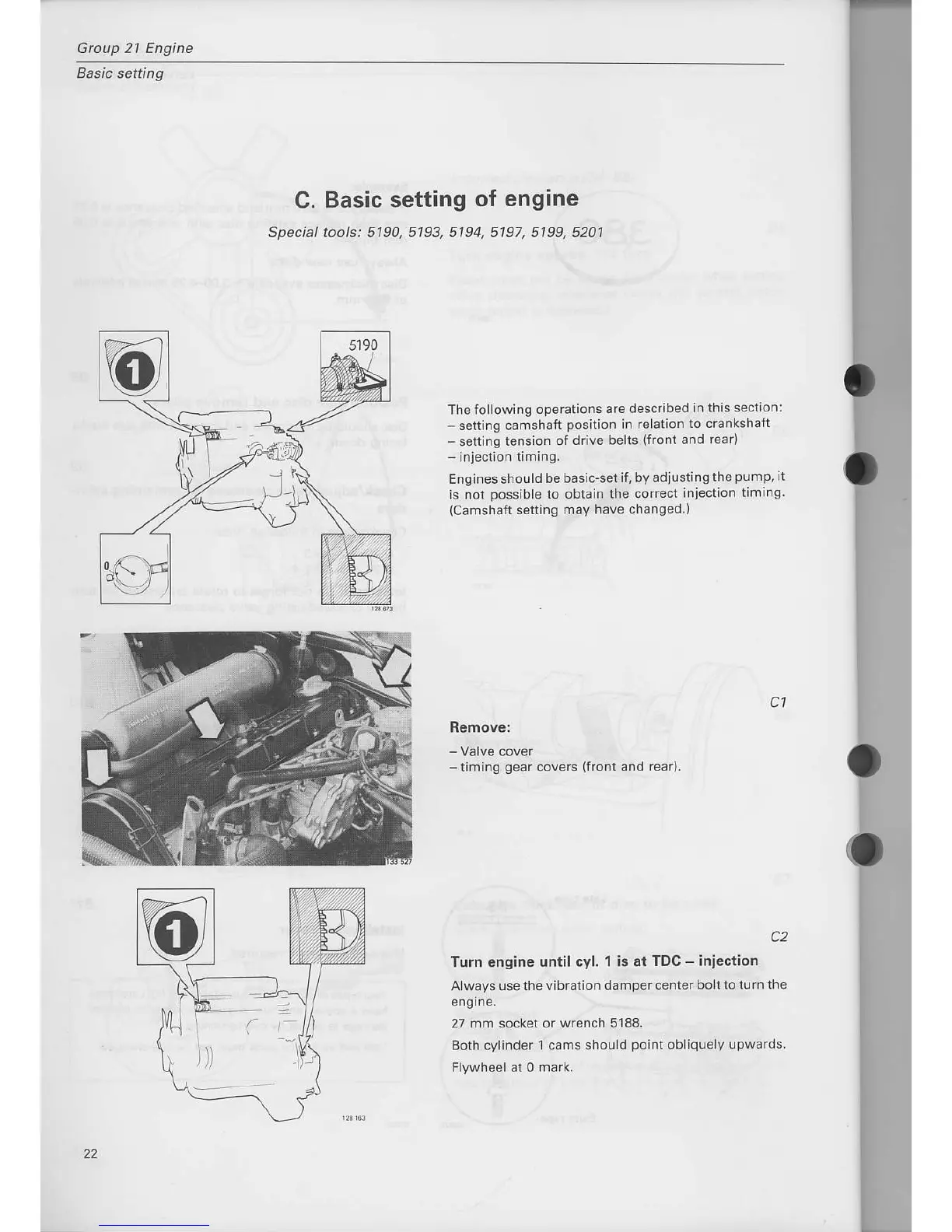

Volvo D24 - C. Basic setting of engine

Group 21 Engine
Basic setting
C.
Basic setting
of engine
Special tools: 5190, 5193, 5194, 5197, 5199, 5201
The following
operations
are described
in this sectionl
-
setting camshaft
position in rel6tion
to crankshaft
-
setting
tension of
drive belts
{front
and
rear)
-
injection
timing.
Engines should
be basic-set
if, by adjusting
the
pump,
it
is not
possible
to obtain
the correct
injection
timing.
(Camshaft
sening may
havs changed
)
C1
Remove:
-timing
gear
covers
{front
and rear).
C2
Turn engine
until cyl.
'l
is at
TDC
-
iniection
Always usethevibration
da mper center
bolt to turn ihe
engine.
27
mm socket or wrench 5188.
Both cylinder
I cams should
point
obliquely upwards.
Flywheel at 0
mark.
=
22
