Group 21 Engine
Timing
gear
belts,
rcplacement
L13

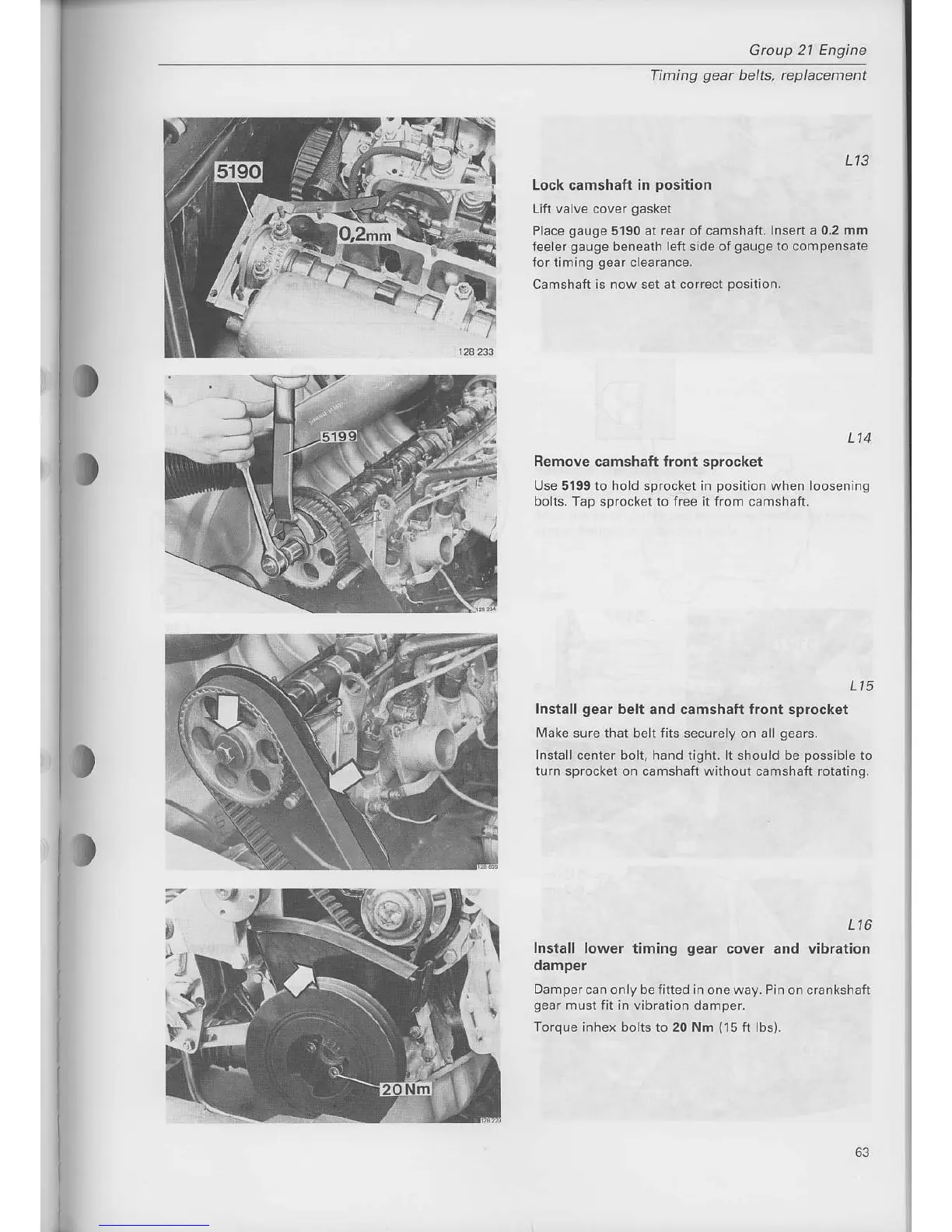

Lock camshaft
in
posilion
Lift valve cover
gasket
Place
gauge
5190 at rear of camshaft. lnsert
a 0.2 mm
feeler
gauge
beneath
left
side
of
gaugo
to compensate
for timing
gear
clearance.
Camshaft is now set ai correct
position.
Bemove camshaft Iront
Use 5199 to hold sprocket
bolts. Tap sprocket to free
LI4
sprocket
in
position
when loosenins
Ll5
Install
gear
belt and camshaft lronl
sprocket
[4ake
sure that belt
fits
se€urely on all
gears.
Install
center bolt, hand tight. lt should be
possible
to
turn sprocket
on camshaft
without
camshaft rotating.
L16
Instatl
lower timing
gear
cover
and
vibration
damper
Dampercanonlybefitted in
oneway.
Pin
on crankshaft
gear
must fit in vibration
damper.
Torque
inhex bolts ro 20 Nm
(15
fi lbs).
