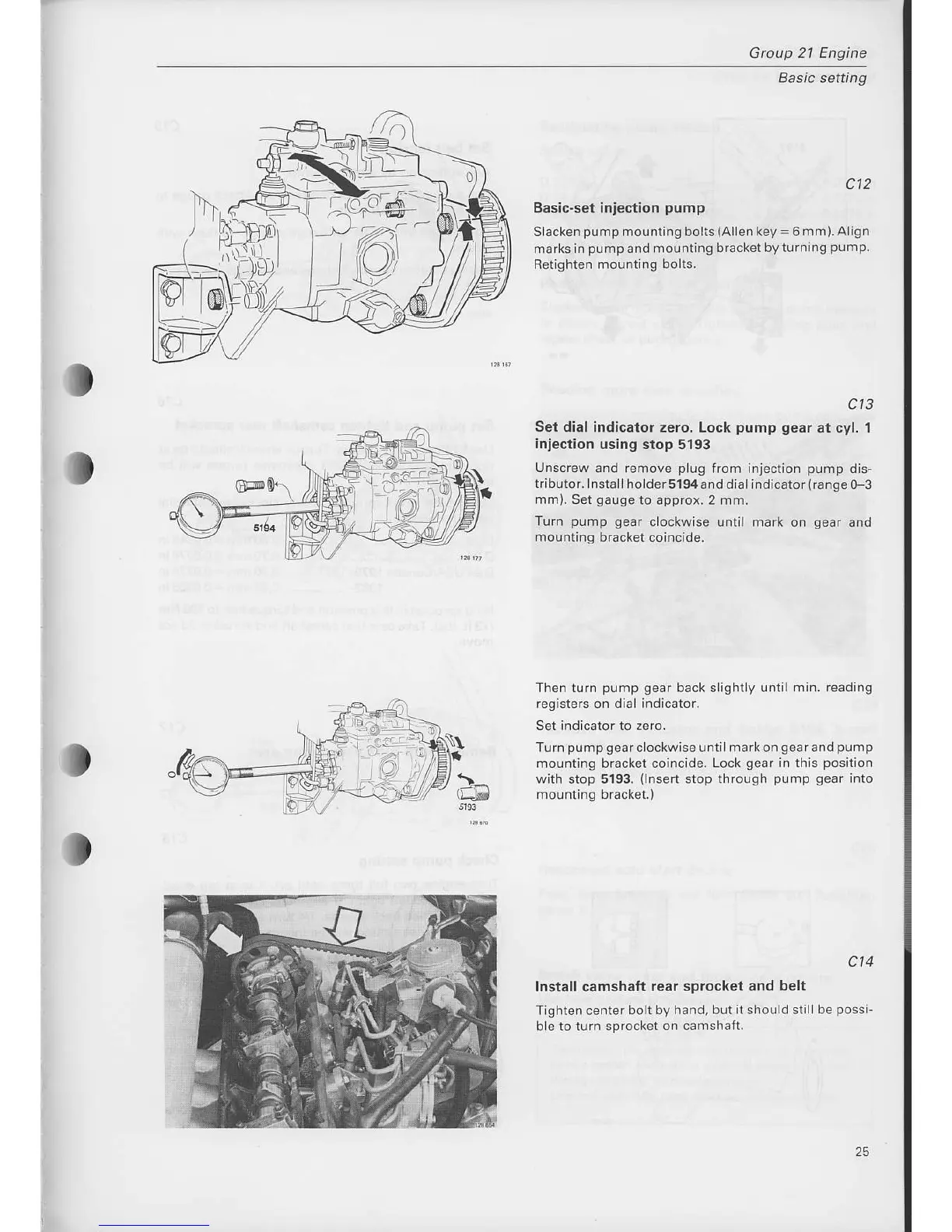

Basic setting
c12
Basic-set iniection
pump
S acken
pump
mountins bolts
(Ailen
key
=
6 mm). Align
marks
in
pump
and mounling
bracket by turning
pump
Retighten mo!ntin9
bolts.
c13
Sel dial indicator
zero. Lock
pump
gear
at cyl. 1
injection using stop
5193
Unscrew and remove
plug
from injection
pump
dis-
tributor. Install holder5194
and dialindicator
(range
0-3
mm). Set
gauge
to approx. 2 mm.
Turn
pump gear
clockwise until mark on
gear
and
mo'rnting
bracket coincide.
Then turn
pump gear
back slight
y
until min- reading
registers
on
dial indicator.
Set indicator to
zero.
Turn
pump
gear
clockwise !nlilmark on
gear
and
pump
mounting bracket coincide. Lock
gear
in
this
position
with
srop
5193.
(lnsert
stop through
pump gear
into
c14
Install
camshaft
rear sprocket
and belt
Tighten cenler
bo t by hand, but
it
should stil
be
possi_
b e to turn sprocket
on camshaft.
